33-Channel (Dual Ethernet) Encoder

Product Datasheets · Video Encoder

Project: Product Datasheet | page_id: 396

33-Channel (Dual Gigabit Ethernet Port) Video Encoder
Model	XSWTVR-60M33DCH
Network Device Discovery	ONVIF
Network Video Input Protocol	HTTP/RTSP/RTMP/RTP/UDP-TS
Network Video Output Protocol	HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/ONVIF/GB28181
Input Video Encoding Format	H.264/H.265
CPU	Dual core 1.2G, mips architecture
Memory	256MB
Network Interface	10/100/1000Mbit X2
Input Audio Encoding Format	AAC/G.711/MP3/Mp2/OPUS
Output Video Encoding Format	H.264/H.265
Output Audio Encoding Format	AAC
Max Network Video Channels	33
Max Total Bitrate	60Mbit (the actual value varies by protocol and encoding format)
Recording	Supports 1 hard disk of up to 16T
Remote Upgrade	Supported
Remote Management	Supports remote modification of device parameters and remote playback of device recordings
Dimensions	270x216x45mm
Weight	1051g
Power Supply	DC-12V
Operating Temperature	0～70℃

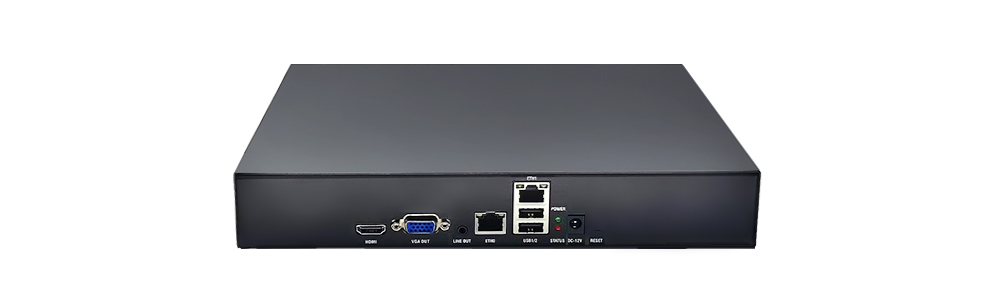

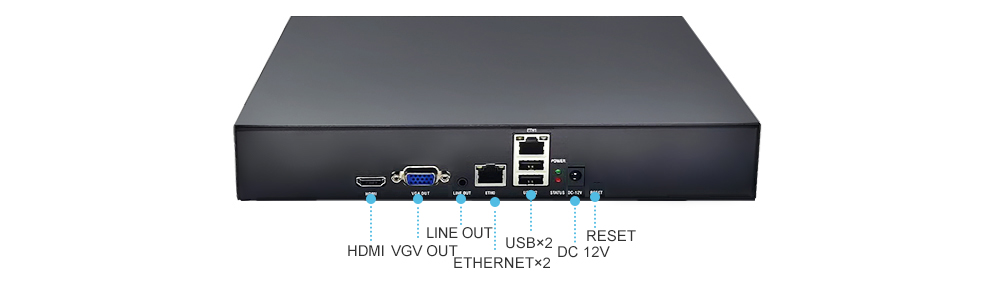

Product Images

In-site Docs Center

In-site Docs Center

Question	Answer
1、Can HTTP TS be converted to UDP?	Yes
2、How many network segments are supported?	2 network segments
3、Is automatic scheduled signal switching supported? For example, with 3 input signals, can it automatically switch to the next input every 60 seconds?	Yes, supported
4、Of network port 0 and network port 1, which is the internal port and which is the external port?	eth0 is the external port and eth1 is the internal port. The IP of eth0 can be found directly with the search tool. If the device and the computer are on the same network, you can search for it directly with the search tool
5、What power rating does the video encoder require? Is a hard disk built in?	12V 2A. No hard disk is built in; the hard disk of all devices must be purchased separately. The hard disk uses SATA and 4-pin power
