USB-Drive Video Encoder
Project: Product Datasheet | page_id: 397
| USB Disk Video Encoder | |
|---|---|
| Model | XSWUVR-35M11CH |
| USB Disk Requirement | exfat format, single drive letter |
| Network Video Input Protocol | HTTP/RTSP/RTMP/RTP/UDP-TS |
| Network Video Output Protocol | HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF |
| Input Video Encoding Format | H.264/H.265 |
| Input Audio Encoding Format | AAC/G.711 |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Max Network Video Channels | 20 |
| Max Total Bitrate | 35Mbit (the actual value varies by protocol and encoding format) |
| Recording | Supports recording to a USB disk |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters and remote playback of device recordings |
| Dimensions | 270x216x45mm |
| Weight | 1051g |
| Power Supply | DC-12V |
| Operating Temperature | 0～70℃ |

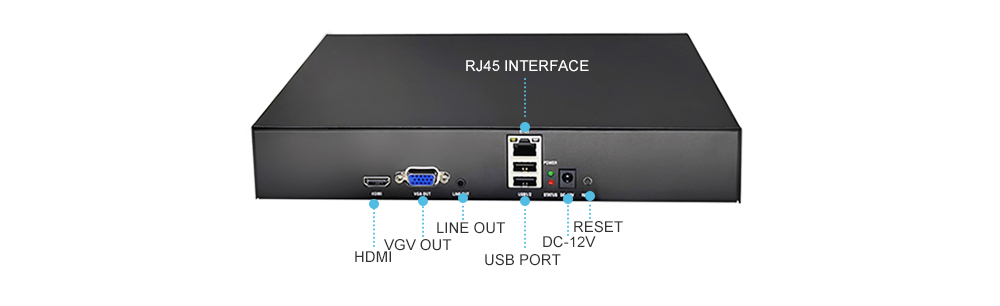

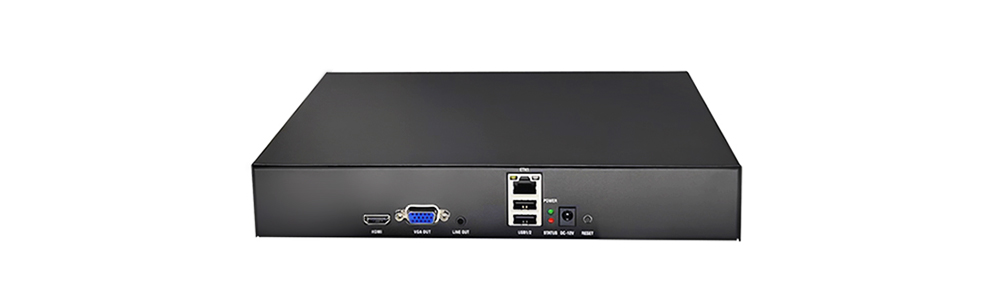

Product Images
Product Manual Link (Chinese Version)
In-site Docs Center
Video Encoder FAQ and Troubleshooting
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1、Is it a standard 1U chassis? | No. Product dimensions: 270x216x45mm |
| 2、How many video file formats are supported? | MP4、MP3、TS、flv、AAC、m4a、ac3、wav are all supported |
| 3、Is multi-file list loop playback, single file loop playback, multi-file sequential playback and random playback supported? | All of these are supported |
| 4、Can the device prevent detection during unattended live streaming? | The device has no anti-detection function; it is only a way of live streaming. It depends on the quality of the video source you record yourself |
| 5、Can videos be played in random switching mode? | No, only sequential playback is supported |
| 6、Are there requirements for the USB disk format? | Select the exfat format when formatting |
