Single-Channel Video Transcoder
Project: Product Specifications | page_id: 1140
| Single-Channel Video Image Transcoder | |
|---|---|
| Model | XSWEDR-SLSVIDEO （E21-S） |
| Video Input | 1 network camera input interface |
| Video Output | HDMI monitor display |
| Audio Input | 1 stereo analog audio input interface |
| Network Camera Resolution | 3840x2160@30fps and below |
| Network Support | 10/100/1000M adaptive Ethernet, 2.4G WiFi) |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF/Hikvision protocol |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Image Pause Capability | Supported |
| Remote Control | Supported |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters; can be used after registration at platform.xstrive.com |
| Power Supply | DC 12V |
| Operating Temperature | -20～75℃ |
| Dimensions | 150x100x35mm |
| Weight | 325.6g |

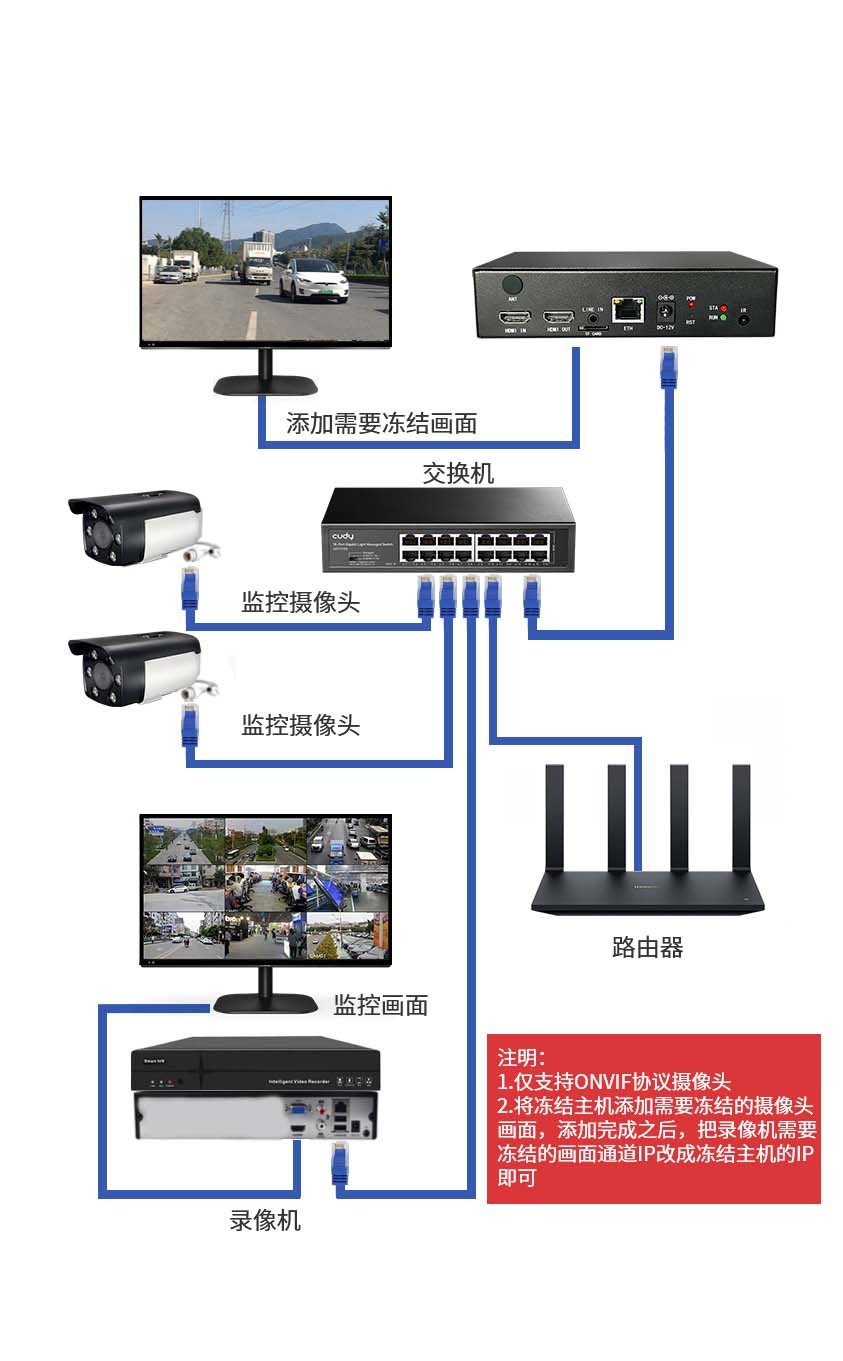

Working Topology Diagram
Product Manual Link (Chinese Version)
In-site Docs Center
FAQ
| Question | Answer |
|---|---|
| 1、Can the input 4K video stream be directly converted to a 1080P network video signal? | Yes, the video resolution and bitrate can be adjusted |
