10-Channel Video Encoder
Project: Product Datasheet | page_id: 145
| 10-channel Video Encoder | |
|---|---|
| Model | XSWTVR-10M10CH |
| Network Device Discovery | ONVIF |
| Network Video Input Protocol | RTSP/RTMP/UDP-TS/HTTP-FLV/HLS/HTTP-TS |
| Network Video Output Protocol | HTTP-FLV/RTSP/RTMP/WS-FLV/WS-RAW/ONVIF/GB28181 |
| Input Video Encoding Format | H.264/H.265 |
| Input Audio Encoding Format | AAC/G.711/MP3/MP2/AC3 |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Max Network Video Channels | 10 |
| Max Total Bitrate | 10Mbit (the actual value varies with the protocol and encoding format) |
| Recording | SD card recording supported |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters and remote playback of device recordings |
| Dimensions | 61x55x30mm |
| Weight | 67g |
| Power Supply | DC-12V |
| Operating Temperature | 0～70℃ |

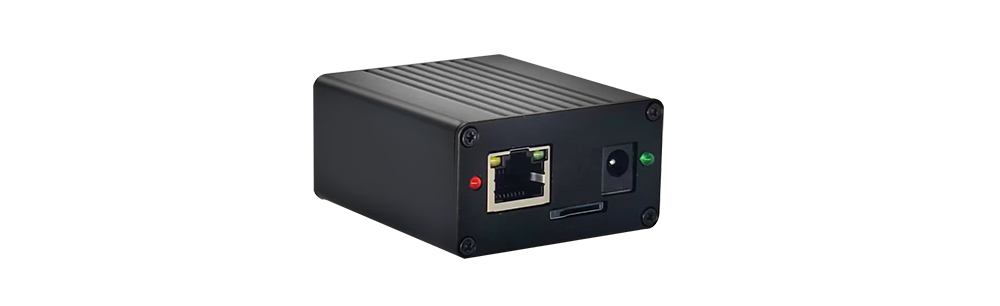

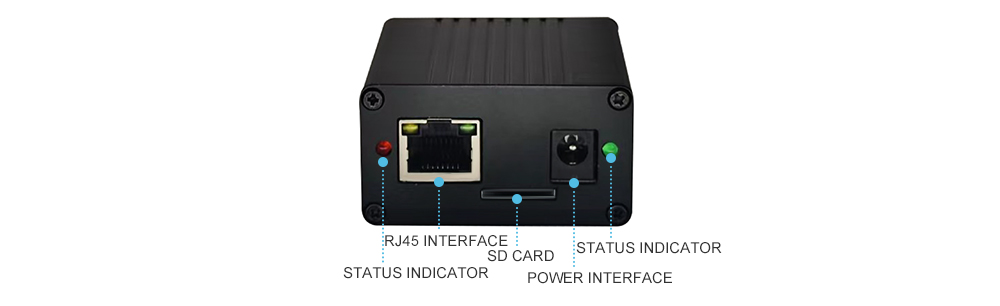

Product Images
Product Manual Link (Chinese)
In-site Docs Center
Click here to watch the device usage video introduction
Video Encoder FAQ and Troubleshooting
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1. Can this stream to a self-hosted platform? | Yes |
| 2. Can it stream only when someone is watching, to reduce 4G traffic? | Yes. Using our streaming platform enables on-demand streaming. The 10-channel video encoder does not support 4G; you can choose a video encoder that supports 4G. |
| 3. Can PTZ cameras that support the ONVIF protocol also be PTZ-controlled on your streaming platform? | Yes |
| 4. Can it pull streams and go live without turning on a computer? | Yes, as long as you have a streaming address |
| 5. Does the device need to be on the same LAN as the surveillance camera? | Yes, they must be on the same LAN |
| 6. Can the management backend be accessed remotely? | Yes, you need to use our management platform |
| 7. Is there one that converts to GB28281? Is it OK if I have no national standard ID? My requirement is to convert RTSP streams from unknown manufacturers into ONVIF, Hikvision protocol or the national standard protocol. Can the national standard ID be filled in at will? | This one can do it; it will not work without a national standard code; you can, but you must have a national standard ID; the national standard code cannot be filled in at will. |
| 8. Can it be connected to a network video recorder? | Yes |
| 9. Is this a 28181 server? | No, this is a GB28181 client that can register to a 28181 server |
| 10. Are industrial cameras supported? Gigabit industrial cameras, gigabit? | Not supported. The gigabit output is not an RTSP stream; only network cameras that output RTSP streams are supported |
| 11. How is plugin-free recording achieved? How long can it be stored? | This model requires an SD card for recording. Recordings are played back via H5. How long it can be stored depends on how large an SD card you use. |
| 12. Can the video encoder be logged in to via ssh? | No. The video encoder supports telnet login, and the streaming server supports ssh login, but only customized devices support these. |
| 13. Can intranet penetration tools such as PeanutHull be configured? Is DDNS supported? | DDNS is not supported. |
