5MP PTZ (5X, 10X) Zoom Explosion-proof Camera

Project: Product Specifications | page_id: 982

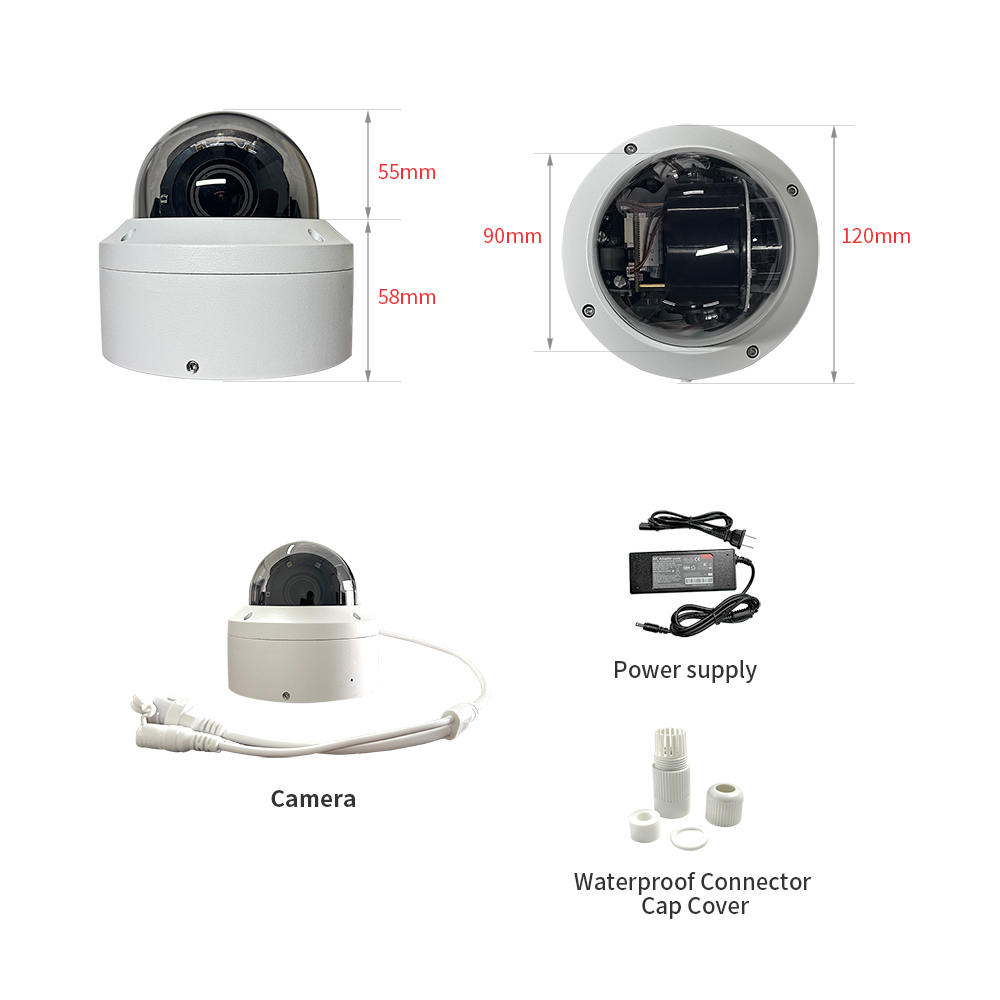

Product Images

Product Manual Link (Chinese Version)

In-site Docs Center

Camera First Use Guide (Chinese Version)

Installation Guide - Front.pdf

Camera FAQ and Troubleshooting

In-site Docs Center

How to Insert the 4G SIM Card into the Camera

How to Insert the Memory Card into a Bullet Camera

How to Install the Memory Card in a Dome Camera

Camera FAQ

Question	Answer
1、Does the camera support secondary development? Is there a development document?	Yes, secondary development via HTTP interfaces is supported. Camera interface document: doc-258.html
2、How do I push the stream to my own server?	The server must generate an RTMP push address first
3、Is it compatible with Hikvision or Dahua NVRs?	Yes
4、Does it support motion detection alarms? We need to call the SDK remotely on the server to get motion detection alarm data	Currently not supported; only remote video retrieval is supported
5、What is the resolution of 5MP? Can it be adjusted?	The main stream is 2592x1944, and the sub stream can support 720P
6、How much power does the camera consume? How long can a 30000mAH battery keep it running?	Power consumption is about 12V 100ma, and it can run continuously for about 30 hours
7、Is the camera system Android or Linux?	linux
8、Does the camera have a Bluetooth interface?	A Bluetooth module can be configured
9、Can recording be started and stopped remotely?	Yes
10、The camera image is upside down. Where can I adjust it in the backend?	Use the image rotation in Settings; choose whichever orientation shows the image correctly
11、Does it support 24-hour recording? How many days can it record at most? Will it automatically clear when full?	24-hour recording is supported. The number of days depends on the size of the memory card (this model has built-in 12G storage and currently does not support storage expansion). When full it will be cleared, as it records in a loop
12、Does it support WiFi at the same time as 4G?	No, you can only choose one of 4G and WiFi (the SIM card supports 4G only, not 5G; WiFi supports 2.4G only, not 5G)
13、If pushing the stream directly to my own server, what are the requirements for the server?	It must support the RTMP protocol
14、Does the 4G camera support APN cards?	APN cards are not supported; ordinary unrestricted cards are supported
15、Can it push the stream to a locally deployed streaming media server?	Yes
16、Is the power connector DC5.5-2.1?	Yes
17、Are the extra interfaces on the board available? Is IO still available?	TTL is available, and IO is available
18、Is there complete sample code for secondary development? How do I get the JS code?	Android sample code can be provided; the sample code of the js interface calls can be obtained by opening the web page https://[device IP:9001/ in Chrome, then right-clicking and selecting View Source
19、Are there restrictions on 4G cards? Are IoT cards OK? What about destination-restricted cards?	Unrestricted cards are supported, IoT cards are OK. For cards with a fixed destination you need to contact the carrier to open these two domain names and ports and add them to the whitelist
20、Does the camera support WebRTC cross-network-segment viewing?	Yes, it needs the cloud platform to establish protocol traversal. With traversal established, one terminal can view across network segments. If traversal succeeds, no traffic fee is incurred; if it fails, the stream must be relayed through the cloud platform and a traffic fee applies, with no limit on the number of terminals
21、 Soft light sensor or hard light sensor?	rv1109+imx335 defaults to a soft light sensor. If you find that the light does not turn on or the IRCUT does not switch: step 1, upgrade to the latest version; step 2, restore factory settings
22、Do you have your own cloud service platform?	Yes (a test link is also available)
