4MP PTZ Fixed Camera

Project: Product Datasheet | page_id: 746

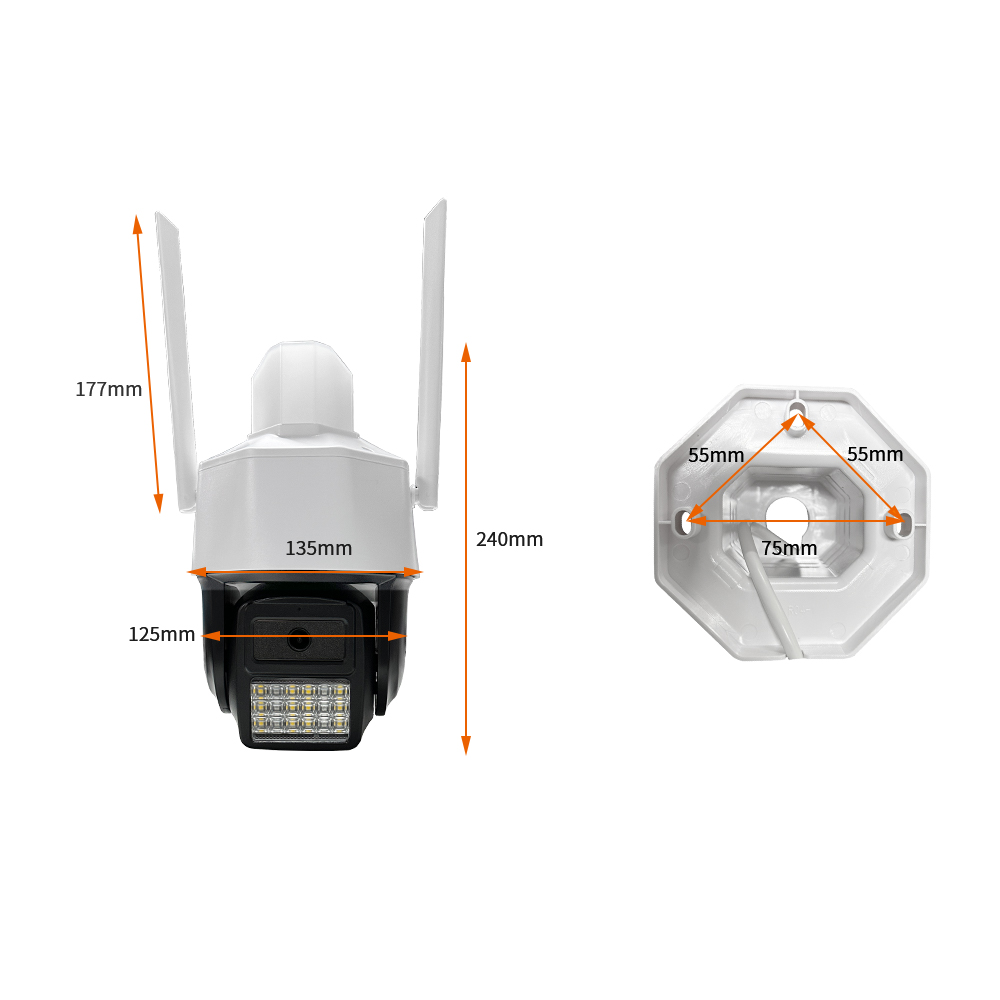

Product Images

Product Manual Link and PDF Download Address (Chinese Version)

In-site Docs Center

Camera First Use Guide (Chinese Version)

Installation Guide Front.pdf

Camera FAQ and Troubleshooting

In-site Docs Center

How to Insert the 4G Card into a Camera

How to Insert the Memory Card into a Bullet Camera

How to Install the Memory Card in a Dome Camera

Camera FAQ

Question	Answer
1、Does the camera support secondary development? Is there development documentation?	Yes, secondary development based on HTTP APIs is supported. Camera API documentation: In-site Docs Center
2、How does the camera push streams to a self-built server?	The server must first generate an RTMP push address
3、Is it compatible with Hikvision or Dahua DVRs?	Yes
4、Is motion detection alarm supported? We need to remotely call the SDK on the server to obtain motion detection alarm data	Currently not supported; only remote retrieval of video is supported
5、What is the resolution of 4MP? Can it be adjusted?	The main stream is 2560x1440 and the sub stream can support 720P. The resolution can be adjusted
6、What is the power consumption of the camera? How long can a 30000mAH battery last?	Power consumption is about 12V 100ma, lasting about 30 hours
7、Can it take photos periodically and upload them to a cloud server, for example one image per minute automatically uploaded?	This requires customization
8、Is the camera system Android or Linux?	Linux
9、Does the camera have a Bluetooth interface?	A Bluetooth module can be configured
10、Is voice call software provided?	No software is needed for calls. Purchase a camera that supports intercom and open the web page
11、Can recording be enabled and disabled remotely?	Yes
12、Is there photo capture control?	There is no photo capture control, but there is a screenshot function
13、The camera image is upside down. Where can I adjust it in the backend?	In the settings, use image rotation; use whichever setting makes the image upright
14、Is 24-hour recording supported? How many days can be recorded at most? Will it be cleared automatically when full?	24-hour recording is supported. How many days can be recorded depends on the size of the storage card. When full, it will be cleared because it is loop recording
15、Do the 4G and WiFi versions support wired networks?	Yes
16、Does 4G also support WiFi at the same time?	No, you can only choose one of 4G and WiFi (the SIM card only supports 4G, not 5G; WiFi only supports 2.4G, not 5G)
17、If pushing streams directly to my own server, what requirements does the server need to meet?	It must support the RTMP protocol
18、Do 4G cameras support APN cards?	APN cards are not supported; only ordinary unrestricted cards are supported
19、Can it push streams to a locally deployed streaming server?	Yes
20、Is the power interface DC5.5-2.1?	Yes
21、Are the extra interfaces on the board available? Is IO still available?	There is TTL and IO
22、Is there complete example code for secondary development? How to get the JS code?	Android example code can be provided; for JS API call example code, you can use Chrome to open the web page https://[device IP:9001/ and right-click to view the source code
23、Are there restrictions on 4G cards? Are IoT cards OK? What about directional cards?	Unrestricted cards are supported. IoT cards are OK. For directional cards, you need to communicate with the operator to open these two domains and ports and add them to the whitelist
24、Does the camera support cross-segment WebRTC viewing?	Yes. The protocol needs to be tunneled through the cloud platform. Tunneling supports one terminal for cross-segment viewing. If the tunnel succeeds, no traffic fee is generated. If the tunnel fails, it needs to be relayed through the cloud platform and traffic fees apply, with no limit on the number of terminals
25、Do you have your own cloud service platform?	Yes. (There is also a test link)
