2MP Vertical Camera
Project: Product Specifications | page_id: 1012
| 2MP Vertical Screen Camera | |||
|---|---|---|---|
| Camera | Main Chip | GK7205V300 | |
| Sensor Type | IMX335 | ||
| Lens | 2.8mm (4mm, 6mm and other lenses optional, to suit different installation scenarios) | ||
| Lens Mount Type | M20 | ||
| Shutter | 1s to 1/1000.000s | ||
| Day/Night Switching Mode | ICR infrared filter type | ||
| Video Processing | 3A（AE,AF,and AWB）funciton | ||
| Compression Standard | Video Compression Standard | H.264 /H.264 /MJPEG | |
| H.265 Encoding Type | Main Profile | ||
| H.264 Encoding Type | BaseLine Profile /Main Profil /High Profile | ||
| Video Compression Bitrate | 32Kbps~40Mbps | ||
| Image | Max Image Size | 2592x1944 | |
| Vertical Screen | Supported | Supports 90/180/270 degree rotation | |
| Main Stream Resolution and Frame Rate | 1920x1080@30hz,1280x720@60hz | ||
| Sub Stream Resolution and Frame Rate | 704x480@30hz 640x480@30hz | ||
| Highlight Suppression | Supported | ||
| Day/Night Switching Mode | Day, night, auto | ||
| OSD | Supports PNG image overlay, supports gif overlay | ||
| Network Function | Interface Protocol | ONVIF | |
| Security Protocol | Password protection | ||
| Network Protocol | TCP/IP,HTTP,FTP,DHCP,DNS,RTP,RTSP,RTMP | ||
| Remote Management | Supports remote web management | ||
| Storage Function | Supports SD card expansion | ||
| Interfaces | Communication Interface | 1 x 10M/100M adaptive RJ45 Ethernet port | |
| Audio Interface | 1 pair of audio input and output (1 line in/out) | ||
| General Specifications | Power Supply | DC12V | |
| Operating Temperature | -20℃~80℃ | ||
| Operating Humidity | Humidity less than 95% (non-condensing) | ||
| Protection Level | IP66 (bullet) | ||

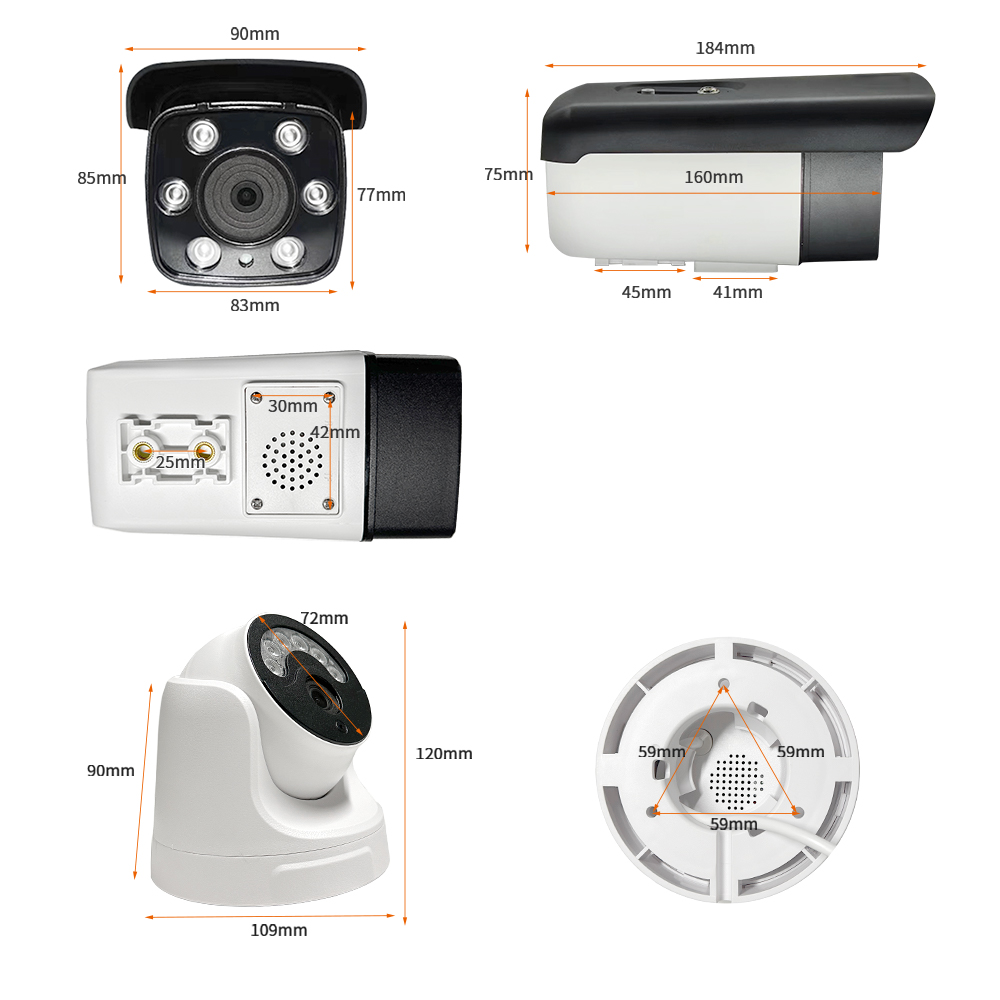

| Dimensions (mm) | Bullet: 83x76x159 Dome: 117x100 | ||
| Weight | Bullet: 370g Dome: 230g |
Product Images
Product Manual Link (Chinese Version)
In-site Docs Center
Camera First Use Guide (Chinese Version)
Installation Guide - Front.pdf
Camera FAQ and Troubleshooting
In-site Docs Center
How to Insert the 4G SIM Card into the Camera
How to Insert the Memory Card into a Bullet Camera
How to Install the Memory Card in a Dome Camera
Camera FAQ
| Question | Answer |
|---|---|
| 1、Does the camera support secondary development? Is there a development document? | Yes, secondary development via HTTP interfaces is supported. Camera interface document: doc-258.html |
| 2、How do I push the stream to my own server? | The server must generate an RTMP push address first |
| 3、Is it compatible with Hikvision or Dahua NVRs? | Yes |
| 4、Does it support motion detection alarms? We need to call the SDK remotely on the server to get motion detection alarm data | Currently not supported; only remote video retrieval is supported |
| 5、What is the resolution of 2MP? Can it be adjusted? | The main stream is 1920x1080, and the sub stream can support 704x480 |
| 6、How much power does the camera consume? How long can a 30000mAH battery keep it running? | Power consumption is about 12V 150ma, and it can run continuously for about 15 hours |
| 7、Can it take photos at scheduled times and upload them to a cloud server, for example automatically uploading one image per minute? | Customization is required |
| 8、Is the camera system Android or Linux? | linux |
| 9、Does the camera have a Bluetooth interface? | No |
| 10、Do you provide voice call software? | No software is needed for the call; you need to purchase a camera version that supports intercom, and you can just open the web page |
| 11、Can recording be started and stopped remotely? | Yes |
| 12、Is there photo capture control? | There is no photo capture control, but there is a snapshot function |
| 13、The camera image is upside down. Where can I adjust it in the backend? | Use the image rotation in Settings; choose whichever orientation shows the image correctly |
| 14、Does it support 24-hour recording? How many days can it record at most? Will it automatically clear when full? | 24-hour recording is supported. The number of days depends on the size of the memory card. When full it will be cleared, as it records in a loop |
| 15、If pushing the stream directly to my own server, what are the requirements for the server? | It must support the RTMP protocol |
| 16、Can it push the stream to a locally deployed streaming media server? | Yes |
| 17、Is the power connector DC5.5-2.1? | Yes |
| 18、Are the extra interfaces on the board available? Is IO still available? | TTL is available, and IO is available |
| 19、Is there complete sample code for secondary development? How do I get the JS code? | Android sample code can be provided; the sample code of the js interface calls can be obtained by opening the web page https://[device IP:9001/ in Chrome, then right-clicking and selecting View Source |
| 20、Does the camera support WebRTC cross-network-segment viewing? | The 1080P vertical screen version does not support WebRTC; you need to purchase the 5MP vertical screen version, which does support it. It needs the cloud platform to establish protocol traversal. With traversal established, one terminal can view across network segments. If traversal succeeds, no traffic fee is incurred; if it fails, the stream must be relayed through the cloud platform and a traffic fee applies, with no limit on the number of terminals |
| 21、Can it switch between landscape and portrait? Is it adaptive, i.e. portrait when the phone is held vertically and landscape when the phone is turned horizontally? | You can switch between landscape and portrait, but it is not adaptive; you have to set it manually in the camera backend |
| 22、What recording storage methods does the camera support? | Memory card storage is supported; it can be connected to an NVR; cloud storage requires separate integration and is charged. Currently Alibaba Cloud storage or Tencent Cloud storage can be integrated, at 5000 per cloud; other cloud storage requires contacting our technical team separately to evaluate the integration fee |
| 23、Do you have your own cloud service platform? | Yes (a test link is also available) |
