T32XQ+SC835 8MP Camera Module

Project: Product Specification | page_id: 1633

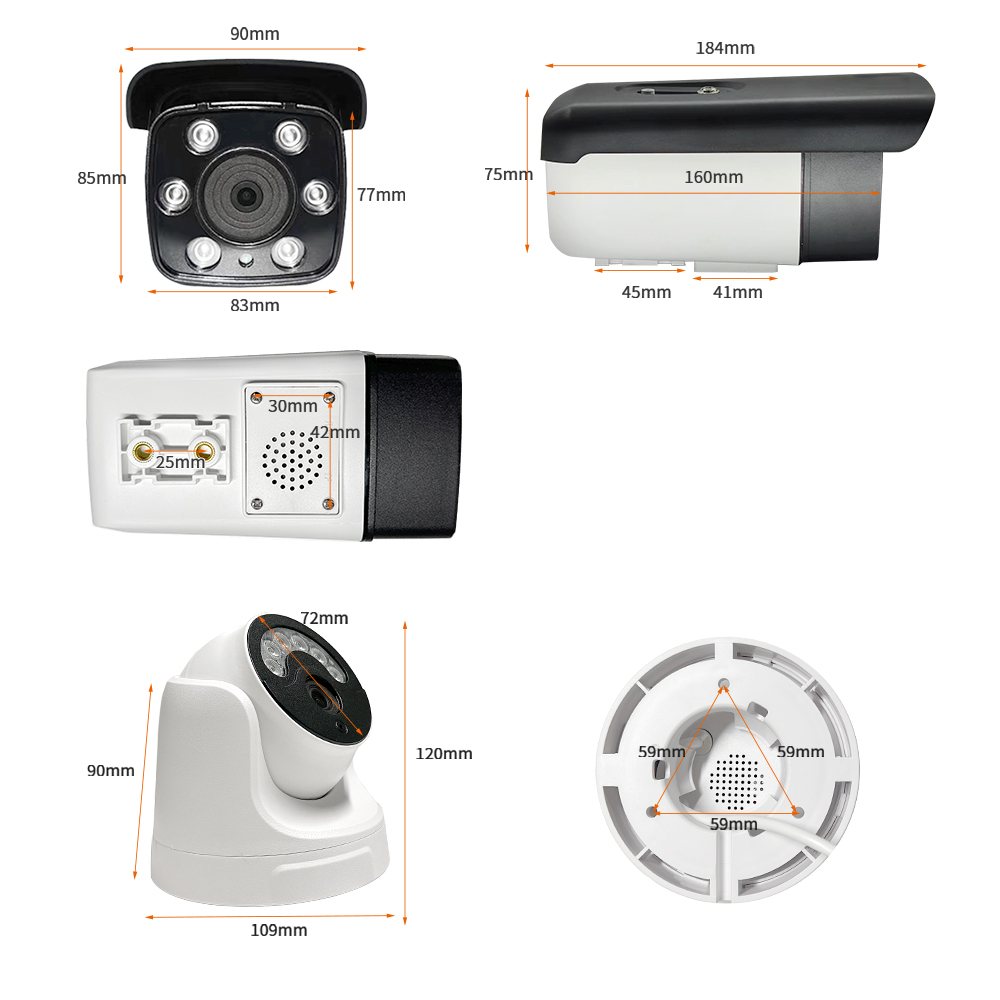

Product Images

Product Manual Link (Chinese Version)

docs.html

Camera First Use Guide (Chinese Version)

Installation Guide (Front).pdf

Camera FAQ and Troubleshooting

In-site Docs Center

Camera 4G Card Insertion Method

Bullet Camera Memory Card Insertion Method

Dome Camera Memory Card Installation Method

Camera FAQ

Question	Answer
1. Does the camera support secondary development? Is there a development document?	Yes, secondary development based on http interfaces is supported. Camera interface document: doc-258.html
2. How does the camera push streams to a self-built server?	The server must first generate an rtmp push address
3. Is it compatible with Hikvision or Dahua NVRs?	Yes
4. Does it support motion detection alarms? We need to remotely call the SDK on the server to obtain motion detection alarm data	Currently it is not supported; only remote video retrieval is supported
5. What is the resolution of 8MP? Can it be adjusted?	The main stream is 3480x2160, and the sub stream can support 720P. The resolution can be adjusted
6. What is the power consumption of the camera? How long can a 30000mAH battery keep it running?	The power consumption is about 12V 100mA, and it can run for about 30 hours
7. Can it take photos on a schedule and upload them to a cloud server, for example, automatically uploading one image per minute?	Customization is required
8. Is the camera system Android or Linux?	Linux
9. Does the camera have a Bluetooth interface?	A Bluetooth module can be provided
10. Is voice call software provided?	No software is needed to make calls; buy a camera that supports intercom, and you can just open the web page
11. Can recording be enabled and disabled remotely?	Yes
12. Is there photo capture control?	There is no photo capture control, but there is a snapshot function
13. The camera image is upside down. Where can I adjust it in the backend?	In Settings, use image rotation and choose whichever image orientation is correct
14. Does it support 24-hour recording? How many days can it record at most? Will the recordings be cleared automatically when full?	24-hour recording is supported. How many days it can record depends on the size of the memory card. When it is full, the recordings will be cleared; it is loop recording
15. Do the 4G and WiFi versions support wired network?	Yes
16. Does the 4G version also support WiFi at the same time?	No, you can only choose one of 4G and WiFi (the SIM card only supports 4G, not 5G; WiFi only supports 2.4G, not 5G)
17. What are the requirements for my own server if pushing streams directly to it?	It must support the rtmp protocol
18. Do 4G cameras support APN cards?	APN cards are not supported; only ordinary unrestricted cards are supported
19. Can it push streams to a locally deployed streaming media server?	Yes
20. Is the power interface DC5.5-2.1?	Yes
21. Are the extra interfaces on the board available? Is IO still available?	There is TTL and there is IO
22. Is there complete sample code for secondary development? How can I get the js code?	Android sample code can be provided; for the js interface call sample code, you can open the web page https://[device IP:9001/ with Chrome and right-click to select View Source to obtain it
23. Are there restrictions on 4G cards? Can IoT cards be used? What about destination-restricted cards?	Unrestricted cards are supported, and IoT cards are OK. For destination-restricted cards, you need to communicate with the operator to open these two domain names and ports and add them to the whitelist
24. Do you have your own cloud service platform?	Yes. (There is also a test link)
