Serial Camera
Project: Product Specification | page_id: 1630
| Serial Port Camera | ||
|---|---|---|
| Type | Name | Specific Parameters |
| Name and Model | Main Chip | Ingenic T31 |
| Sensor | GalaxyCore GC4653 (4MP), F37 (2MP) | |
| Capture Parameters | Lens | 4mm (2.8mm, 6mm, 8mm and other lenses are optional, suitable for different installation scenarios） |
| Sensor Type | GC4653: 1/2.7'' 4MP sensor, F37: 1/3" 2MP | |
| Minimum Illumination | 0.01lux/F1.2(color) 0.01lux/F1.2(black) | |
| Shutter | 1/3 second to 1/100.000 second | |
| Day/Night Switching | ICR infrared filter | |
| Video Parameters | Video Compression Standard | JPEG |
| Compression Output Bitrate | 128Kbps~8000Kbps | |
| Number of Streams | Dual streams | |
| Max Image Size | 2560x1440（GC4653），1920x1080（F37） | |
| Max Frame Rate | 25FPS | |
| Image Settings | Brightness, contrast, saturation, exposure, vertical flip, horizontal mirror | |
| Audio Parameters | Audio Output | Not supported |
| Audio Input | Not supported | |
| Serial Port | 485/TTL | |
| Boot Time | 5 seconds | |
| Functions | USB | Supports standard UVC |
| Others | Operating Temperature and Humidity | -10℃~55℃, humidity less than 95% |
| Power Supply | DC5V 500mA | |
| Power Consumption | 3W MAX |

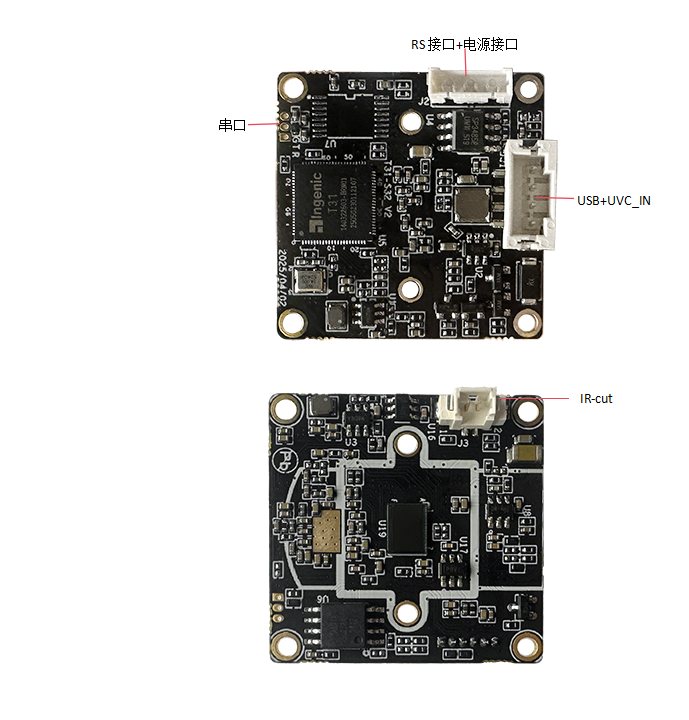

F37 Module Image

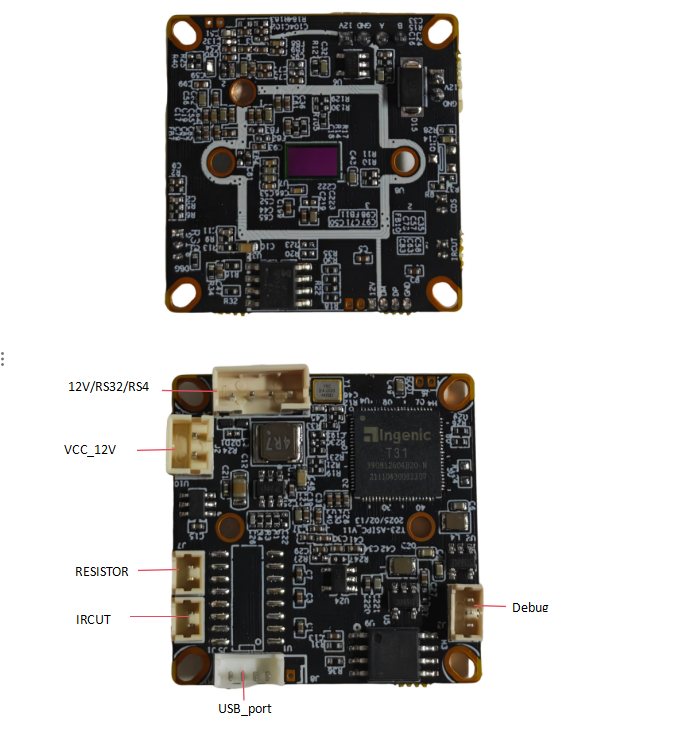

S32 Module Image
Order Model
XSWCAM-SER-NFHD-TTL （T31+F37 TTL output+UVC output）
XSWCAM-SER-NFHD-485 （T31+F37 485 output+UVC output）
XSWCAM-SER-NFHD-232 （T31+F37 232 output+UVC output）
XSWCAM-SER-N4MP-TTL （T31+GC4653 TTL output+UVC output）
XSWCAM-SER-N4MP-485 （T31+GC4653 485 output+UVC output）
XSWCAM-SER-N4MP-232 （T31+GC4653 232 output+UVC output）
