5MP PTZ (18X, 30X) Zoom Camera

Project: Product Datasheet | page_id: 733

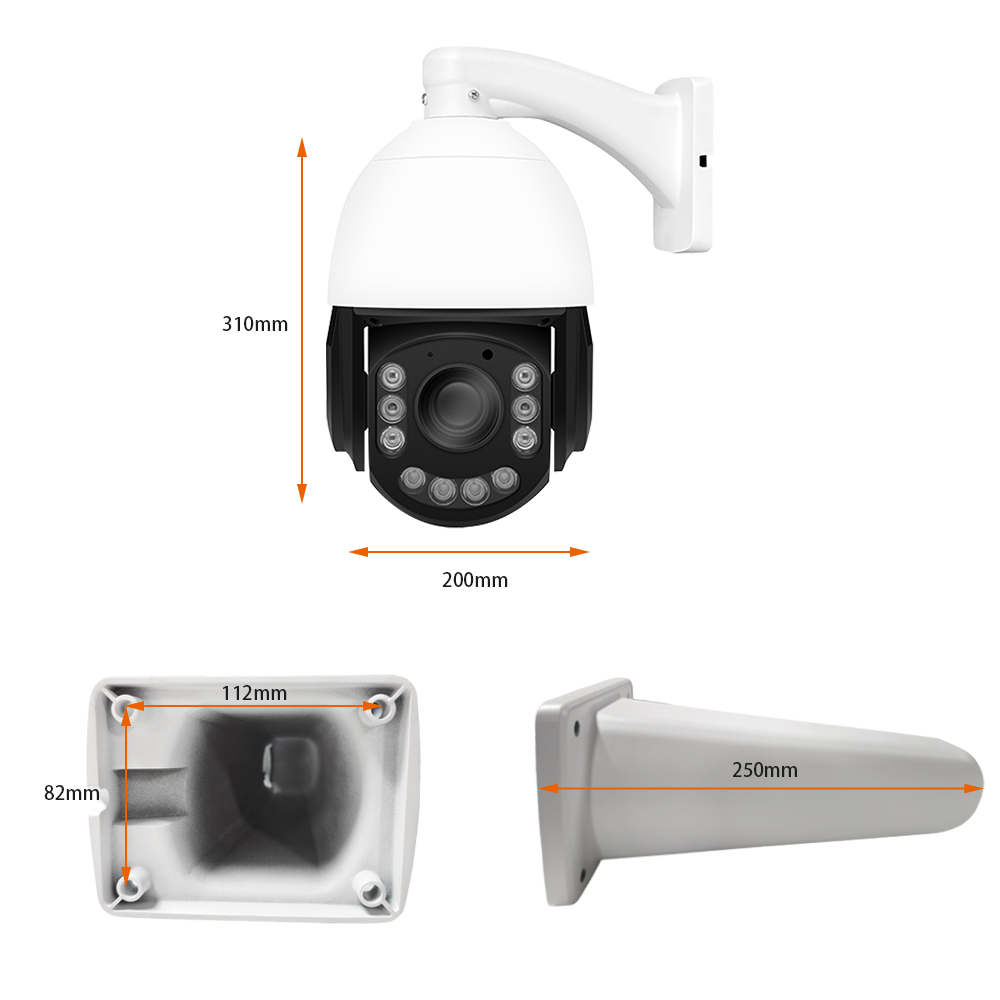

Product Images

Product Manual Link (Chinese Version)

In-site Docs Center

Camera First Use Guide (Chinese Version)

Installation Guide Front.pdf

Camera FAQ and Troubleshooting

In-site Docs Center

How to Insert the 4G Card into a Camera

How to Insert the Memory Card into a Bullet Camera

How to Install the Memory Card in a Dome Camera

18x Zoom Camera Actual Footage

30x Zoom Camera Actual Footage

Camera FAQ

Question	Answer
1、Does the camera support secondary development? Is there development documentation?	Yes, secondary development based on HTTP APIs is supported. Camera API documentation: doc-258.html
2、How does the camera push streams to a self-built server?	The server must first generate an RTMP push address
3、Is it compatible with Hikvision or Dahua DVRs?	Yes
4、Is motion detection alarm supported? We need to remotely call the SDK on the server to obtain motion detection alarm data	Currently not supported; only remote retrieval of video is supported
5、What is the resolution of 5MP? Can it be adjusted?	The main stream is 2592x1944 and the sub stream can support 720P
6、What is the power consumption of the camera? How long can a 30000mAH battery last?	Power consumption is about 12V 100ma, lasting about 30 hours
7、Can it take photos periodically and upload them to a cloud server, for example one image per minute automatically uploaded?	This requires customization
8、Is the camera system Android or Linux?	Linux
9、Does the camera have a Bluetooth interface?	A Bluetooth module can be configured for a fee
10、Is voice call software provided?	No software is needed for calls. You need to purchase a camera that supports intercom and open the web page. Note: if the SKU description does not mention intercom, intercom is not supported
11、Can recording be enabled and disabled remotely?	Yes. Remote management requires our cloud platform. XSTRIVE device management platform registration address: http://platform.xstrive.com/ Device management platform user guide: docs.html Traffic fees apply
12、Is there photo capture control?	There is no photo capture control, but there is a screenshot function
13、The camera image is upside down. Where can I adjust it in the backend?	In the settings, use image rotation; use whichever setting makes the image upright
14、Is 24-hour recording supported? How many days can be recorded at most? Will it be cleared automatically when full?	24-hour recording is supported. How many days can be recorded depends on the size of the storage card. When full, it will be cleared because it is loop recording
15、Do the 4G and WiFi versions support wired networks?	Yes
16、Does 4G also support WiFi at the same time?	No, you can only choose one of 4G and WiFi (the SIM card only supports 4G, not 5G; WiFi only supports 2.4G, not 5G)
17、If pushing streams directly to my own server, what requirements does the server need to meet?	It must support the RTMP protocol
18、Do 4G cameras support APN cards?	APN cards are not supported; only ordinary unrestricted cards are supported
19、Can it push streams to a locally deployed streaming server?	Yes
20、Is the power interface DC5.5-2.1?	Yes
21、Are the extra interfaces on the board available? Is IO still available?	There is TTL and IO
22、Is there complete example code for secondary development? How to get the JS code?	WebRTC intercom is supported and HTTP API calls are supported
23、Are there restrictions on 4G cards? Are IoT cards OK? What about directional cards?	Unrestricted cards are supported. IoT cards are OK (the product does not include an IoT card). For directional cards, you need to communicate with the operator to open these two domains and ports and add them to the whitelist
24、Does the camera support cross-segment WebRTC viewing?	Yes. The protocol needs to be tunneled through the cloud platform. Tunneling supports one terminal for cross-segment viewing. If the tunnel succeeds, no traffic fee is generated. If the tunnel fails, it needs to be relayed through the cloud platform and traffic fees apply, with no limit on the number of terminals
25、Do you have your own cloud service platform?	Yes. XSTRIVE device management platform registration address: http://platform.xstrive.com/ Device management platform user guide: docs.html
