4MP IP Camera

Project: Product Datasheet | page_id: 743

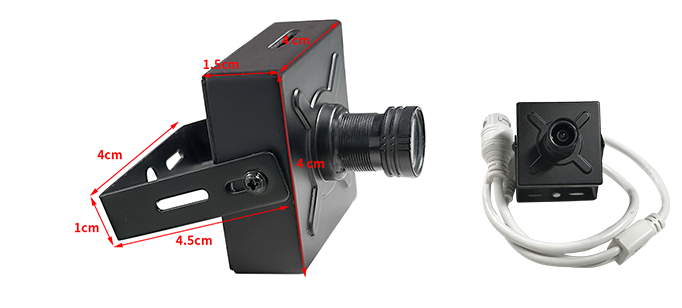

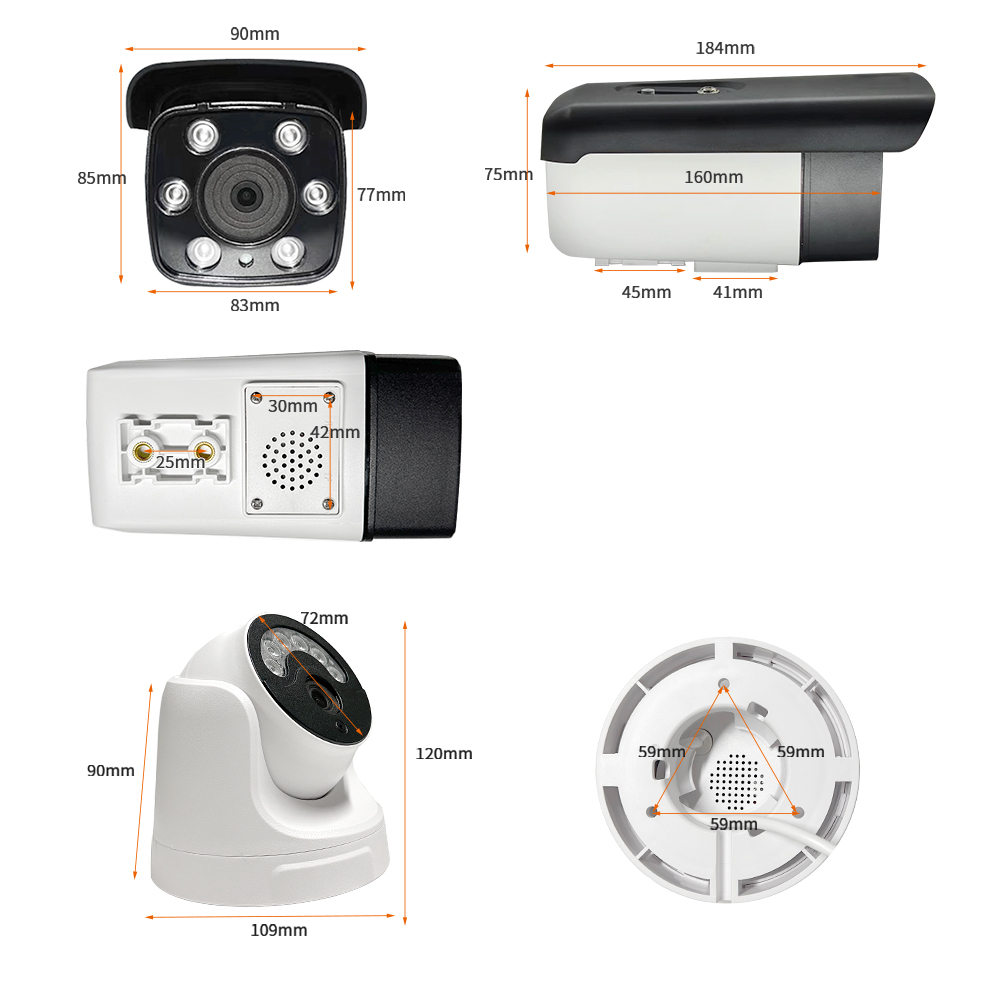

Product Images

Product Manual Link (Chinese Version)

In-site Docs Center

Camera First Use Guide (Chinese Version)

Installation Guide Front.pdf

Camera FAQ and Troubleshooting

In-site Docs Center

How to Insert the 4G Card into a Camera

How to Insert the Memory Card into a Bullet Camera

How to Install the Memory Card in a Dome Camera

Camera FAQ

Question	Answer
1、Does the camera support secondary development? Is there development documentation?	Yes, secondary development based on HTTP APIs is supported. Camera API documentation: In-site Docs Center
2、How does the camera push streams to a self-built server?	The server must first generate an RTMP push address
3、Is it compatible with Hikvision or Dahua DVRs?	Yes
4、Is motion detection alarm supported? We need to remotely call the SDK on the server to obtain motion detection alarm data	Currently not supported; only remote retrieval of video is supported. Functions such as motion detection alarm require paid customization
5、What is the resolution of 4MP? Can it be adjusted?	The main stream is 2560x1440 and the sub stream can support 720P. The resolution can be adjusted
6、What is the power consumption of the camera? How long can a 30000mAH battery last?	Power consumption is about 12V 100ma, lasting about 30 hours
7、Can it take photos periodically and upload them to a cloud server, for example one image per minute automatically uploaded?	Yes
8、Is the camera system Android or Linux?	Linux 3.0
9、Does the camera have a Bluetooth interface?	A Bluetooth module can be configured for a fee
10、Is voice call software provided?	No software is needed for calls. You need to purchase a camera that supports intercom and open the web page
11、Can recording be enabled and disabled remotely?	Yes. Remote management requires our cloud platform. XSTRIVE device management platform registration address: http://platform.xstrive.com/
12、Is there photo capture control?	Yes, there is photo capture control and a screenshot function
13、The camera image is upside down. Where can I adjust it in the backend?	In the settings, use image rotation; use whichever setting makes the image upright
14、Is 24-hour recording supported? How many days can be recorded at most? Will it be cleared automatically when full?	24-hour recording is supported. How many days can be recorded depends on the size of the memory card purchased. When full, it will be cleared because it is loop recording
15、Do the 4G and WiFi versions support wired networks?	Yes
16、Does 4G also support WiFi at the same time?	No, you can only choose one of 4G and WiFi (the SIM card only supports 4G, not 5G; WiFi only supports 2.4G, not 5G)
17、If pushing streams directly to my own server, what requirements does the server need to meet?	It must support the RTMP protocol
18、Do 4G cameras support APN cards?	APN cards are not supported; only ordinary unrestricted cards are supported
19、Can it push streams to a locally deployed streaming server?	Yes
20、Is the power interface DC5.5-2.1?	Yes
21、Are the extra interfaces on the board available? Is IO still available?	There is TTL and IO
22、Is there complete example code for secondary development? How to get the JS code?	Android example code can be provided; for JS API call example code, you can use Chrome to open the web page https://[device IP:9001/ and right-click to view the source code

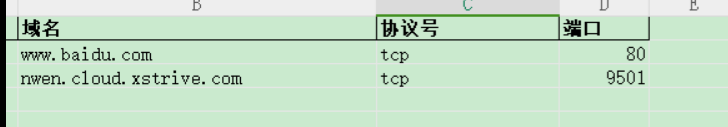

23、Are there restrictions on 4G cards? Are IoT cards OK? What about directional cards?	Unrestricted cards are supported. IoT cards are OK. For directional cards, you need to communicate with the operator to open these two domains and ports and add them to the whitelist
24、Does the camera support cross-segment WebRTC viewing?	Yes. The protocol needs to be tunneled through the cloud platform. Tunneling supports one terminal for cross-segment viewing. If the tunnel succeeds, no traffic fee is generated. If the tunnel fails, it needs to be relayed through the cloud platform and traffic fees apply, with no limit on the number of terminals
25、Does it support storage to a network hard disk?	Not supported in stock models. Network cloud storage integration requires paid customization. The specific fee is evaluated based on the cloud to be integrated. Generally, integration with Alibaba Cloud and Tencent Cloud costs 5000, and integration with other cloud servers requires specific materials for evaluation
26、How to set up camera intercom?	Reference: WebRTC intercom camera configuration steps: In-site Docs Center WebRTC intercom camera development and usage instructions: In-site Docs Center
27、Do 4G cameras support 4G data cards from Taiwan?	Yes, but the APN must be set accordingly
28、What format are the scheduled snapshot images?	JPG format
29、What is the normal operating voltage?	Above 10.8 V and below 13.2V
30、Does the camera support RTSP streaming?	RTSP streaming is not supported, only RTMP streaming is supported. Choosing a version that supports WebRTC can support WebRTC streaming
31、How is your 4G card charged?	Hello, this is our 4G card charging method， Note: Our 4G card has a whitelist restriction and only supports our own domain: xstrive.com. If you need to add your own domain to the whitelist, there is a minimum order quantity of at least 20 cards
32、How do I check the data balance of your 4G card and how do I recharge it?	Search for the mini program on WeChat: XST Video Link, or scan the QR code below, enter the SIM card number or ICCID, then bind it and check the balance and recharge:
33、How to integrate cloud storage?	Cloud storage requires separate paid integration. Currently supported: Alibaba Cloud and Tencent Cloud. The integration fee is: 5000 (integration with other cloud storage requires separate fee evaluation). TS format is supported by default. If MP4 support is required, the fee increases by another 5000. The storage is sliced data with a default time interval of 30S. The time interval can be changed, but not freely by the customer; it can be preset in advance according to customer requirements
34、Can we pass a start timestamp and end timestamp and you return the sliced video within that range?	Yes, the granularity is 30S
35、How is the signal penetration? I want to install it in something like a cable well	Probably not feasible. The 4G signal of our camera is slightly worse than that of a mobile phone
36、Do you have your own cloud service platform?	Yes. XSTRIVE device management platform registration address: http://platform.xstrive.com/ ; Device management platform user guide: docs.html
37、Is the SIP protocol supported?	Not supported
38、Can 4G cameras push and pull streams?	Ours can; other brands cannot, because the 4G network and the video encoder are not on the same LAN
