5MP Vertical Camera

Project: Product Specifications | page_id: 1013

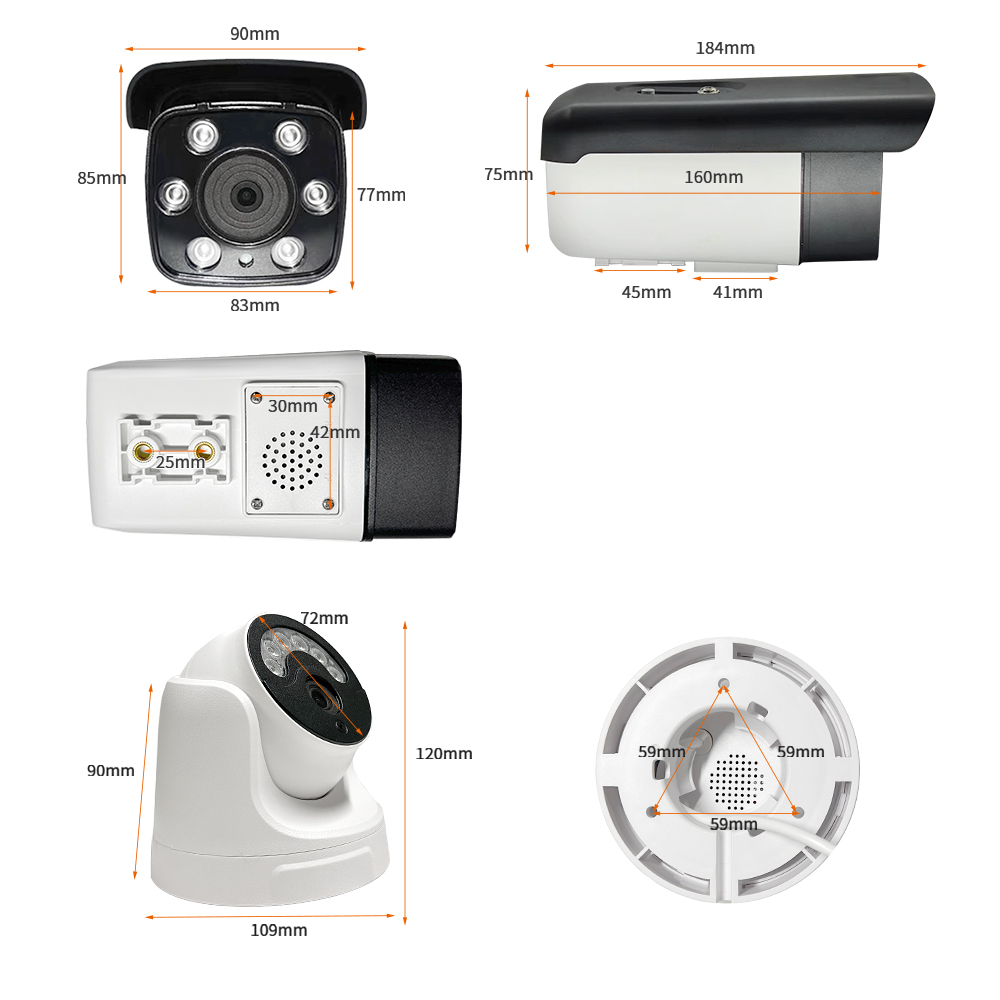

Product Images

Product Manual Link (Chinese Version)

docs.html

Camera First Use Guide (Chinese Version)

Installation Guide - Front.pdf

Camera FAQ and Troubleshooting

In-site Docs Center

How to Insert the 4G SIM Card into the Camera

How to Insert the Memory Card into a Bullet Camera

How to Install the Memory Card in a Dome Camera

Camera FAQ

Question	Answer
1、Does the camera support secondary development? Is there a development document?	Yes, secondary development via HTTP interfaces is supported. HTTP interface document: doc-258.html
2、How do I push the stream to my own server?	The server must generate an RTMP push address first
3、Is it compatible with Hikvision or Dahua NVRs?	Yes
4、Does it support motion detection alarms? We need to call the SDK remotely on the server to get motion detection alarm data	Currently not supported; only remote video retrieval is supported
5、What is the resolution of 5MP? Can it be adjusted?	The main stream is 2592x1944, and the resolution can be adjusted
6、How much power does the camera consume? How long can a 30000mAH battery keep it running?	Power consumption is about 12V 100ma, and it can run continuously for about 30 hours
7、Can it take photos at scheduled times and upload them to a cloud server, for example automatically uploading one image per minute?	Yes
8、Is the camera system Android or Linux?	linux 3.0
9、Does the camera have a Bluetooth interface?	A Bluetooth module can be configured
10、Can recording be started and stopped remotely?	Yes
11、Is there photo capture control?	There is photo capture control, and there is a snapshot function
12、The camera image is upside down. Where can I adjust it in the backend?	Use the image rotation in Settings; choose whichever orientation shows the image correctly
13、Does it support 24-hour recording? How many days can it record at most? Will it automatically clear when full?	24-hour recording is supported. The number of days depends on the size of the memory card. When full it will be cleared, as it records in a loop
14、Do the 4G version and the WiFi version support wired network?	Yes
15、Does it support WiFi at the same time as 4G?	No, you can only choose one of 4G and WiFi (the SIM card supports 4G only, not 5G; WiFi supports 2.4G only, not 5G)
16、If pushing the stream directly to my own server, what are the requirements for the server?	It must support the RTMP protocol
17、Does the 4G camera support APN cards?	APN cards are not supported; ordinary unrestricted cards are supported
18、Can it push the stream to a locally deployed streaming media server?	Yes
29、Is the power connector DC5.5-2.1?	Yes
20、Are the extra interfaces on the board available? Is IO still available?	TTL is available, and IO is available
21、Is there complete sample code for secondary development? How do I get the JS code?	Android sample code can be provided; the sample code of the js interface calls can be obtained by opening the web page https://[device IP:9001/ in Chrome, then right-clicking and selecting View Source

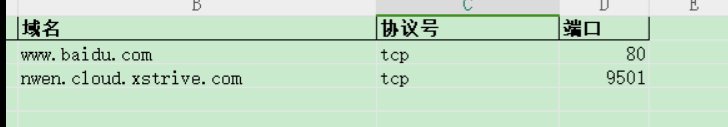

22、Are there restrictions on 4G cards? Are IoT cards OK? What about destination-restricted cards?	Unrestricted cards are supported, IoT cards are OK. For destination-restricted cards you need to contact the carrier to open these two domain names and ports and add them to the whitelist
23、Does the camera support WebRTC cross-network-segment viewing?	Yes, it needs the cloud platform to establish protocol traversal. With traversal established, one terminal can view across network segments. If traversal succeeds, no traffic fee is incurred; if it fails, the stream must be relayed through the cloud platform and a traffic fee applies, with no limit on the number of terminals
24、Does it support storage to a network hard disk?	Not supported off the shelf; network cloud storage integration requires customization and is charged
25、Does the 4G camera support 4G data cards from Taiwan?	Yes, the APN needs to be set accordingly
26、What format are the scheduled snapshot images in?	JPG format
27、What is the normal operating voltage?	Greater than 10.8 V and lower than 13.2V
28、Does the camera support RTSP stream pushing?	RTSP stream pushing is not supported
29、How is your 4G card charged?	Hello, this is our 4G card charging method
30、How do I check the data balance of your 4G card and how do I recharge it?	Search for the mini program XST Video Link in WeChat, or scan the QR code below, enter the SIM card number or ICCID, then bind it to check the balance and recharge:
31、Can it switch between landscape and portrait? Is it adaptive, i.e. portrait when the phone is held vertically and landscape when the phone is turned horizontally?	You can switch between landscape and portrait, but it is not adaptive; you have to set it manually in the camera backend
32、What recording storage methods does the camera support?	Memory card storage is supported; it can be connected to an NVR; cloud storage requires separate integration and is charged. Currently Alibaba Cloud storage or Tencent Cloud storage can be integrated, at 5000 per cloud; other cloud storage requires contacting our technical team separately to evaluate the integration fee
33、Do you have your own cloud service platform?	Yes (a test link is also available)
34、Can the resolution be adjusted to 1080P? Can 1080P support 60fps?	The resolution can be adjusted to 1080P; 1080P60 is not supported, only 1080P30
35、Is there a vertical screen camera that supports 1080P60?	There is no stock; you can order the RV1126+imx335 version, but there will be a lead time of about 3 weeks. If you only need one, the sample fee is 1000. Bulk price is negotiable
