Hi3559a ircut：

(for the ircut corresponding to the new 3559a base board of 334) ircut: SHUB_GPIO3_4  SHUB_GPIO3_5
himm  0x180D3400 0xFF
himm 0x180d33fc 0xEF   or himm 0x180d33fc 0xDF

3559a flashing and basic documents

Link: https://pan.baidu.com/s/1bgPUIgGTSkCZeM7RCTrlhQ
Extraction code: 6hvp

ruyistudio and nnie quick documents and materials package

Link: https://pan.baidu.com/s/1EMziV4txem1P6ZnGsX3yHw
Extraction code: n6nk

3559a YOLOV3 and caffe documents

Link: https://pan.baidu.com/s/1Pi0Ix3Rvo_-Z9jZQfUPHPw
Extraction code: mbo0

3559a imx334 real-time video stream inference code using yolov3

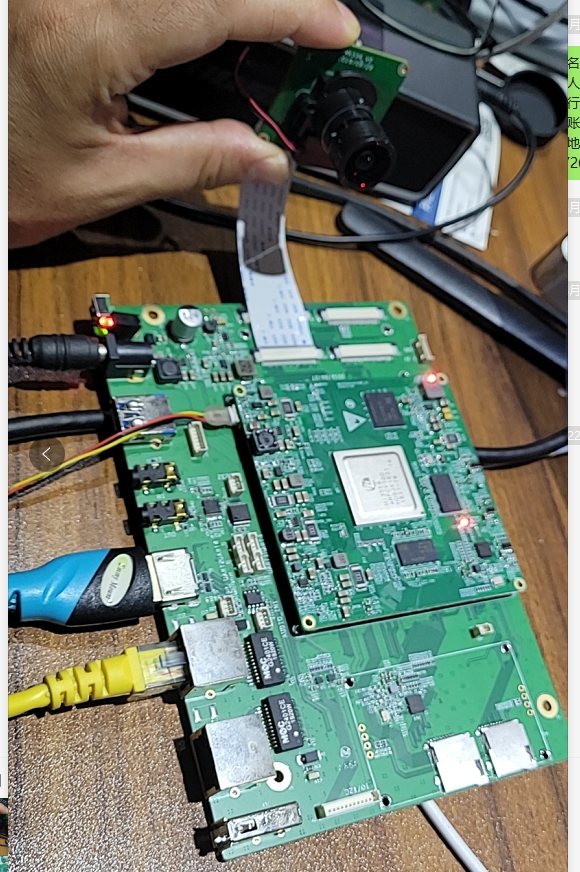

Wiring diagram ![](assets/docs/cdcc57bce5e85af2.jpg)
Code download link
Link: https://pan.baidu.com/s/1GAruB5nhIT5hVIWuk9OwIw Extraction code: vapb
After downloading, put the code in the following directory:
/home/xstrive/hisi/Hi3559AV100_SDK_V2.0.3.0/mpp/sample
then cd svp/multi-core/nnie
./sample_nnie_main  y
Connect an HDMI monitor (the monitor must support 1080p@60) to see the result.

3559a sdk

Link: https://pan.baidu.com/s/1vbNuA_8KJVCG6JgxxmtZaw Password: hw90

3559A development virtual machine
Link: https://pan.baidu.com/s/1PQR9B86_nJjtpJpVhWsfvQ Password: w9g6

3559a EMMC version, dual gigabit
Link: https://pan.baidu.com/s/17K1RIVNxAa0oosQxopJuCg
Extraction code: alzb

3559a base board schematic
Base board 1 HI3559A-CON_V2
docs.html
Base board 2
HI3559A-OV4689_V0
docs.html

Full base board package download (pcb + schematic)
docs.html
