3516EV200 Board Environment Setup and Operation Guide

1. Download the hi3516ev200 SDK

    Link: https://pan.baidu.com/s/1NXnTGjDo6vuIuScxYAS4mg Extraction code: xstr

Notes:

（1）Source code path: SDK\Hi3516E V200R001C01SPC012\Hi3516EV200R001C01SPC012\01.software\board\Hi3516EV200_SDK_V1.0.1.2\package

（2）Development guide: SDK\Hi3516E V200R001C01SPC012\ReleaseDoc\zh\01.software\board\OSDRV

2. Download the virtual machine

Link: https://pan.baidu.com/s/1Xvh7zKgB65loL3ah1SW71w Extraction code: xstr

3. Hardware interface diagram

(1) power

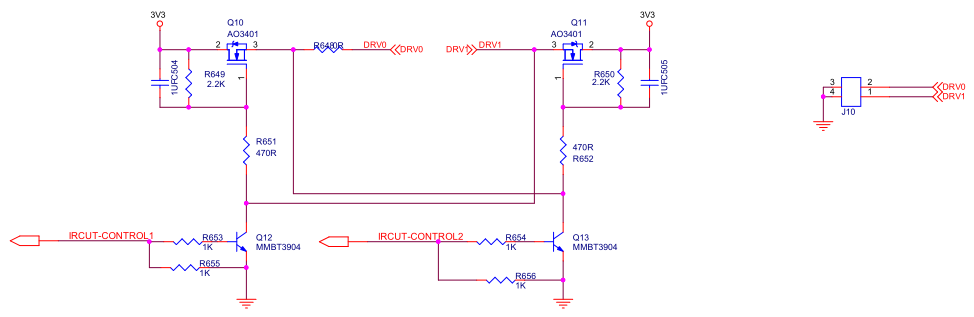

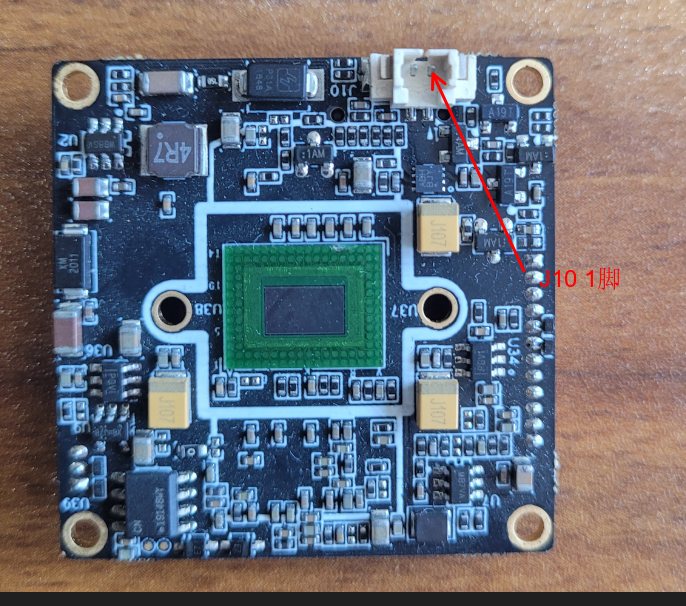

(2)IRCUT

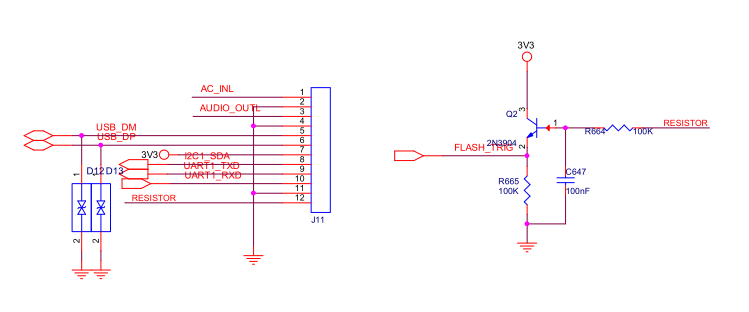

(3) Audio input, audio output, USB interface

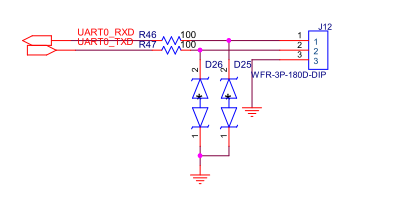

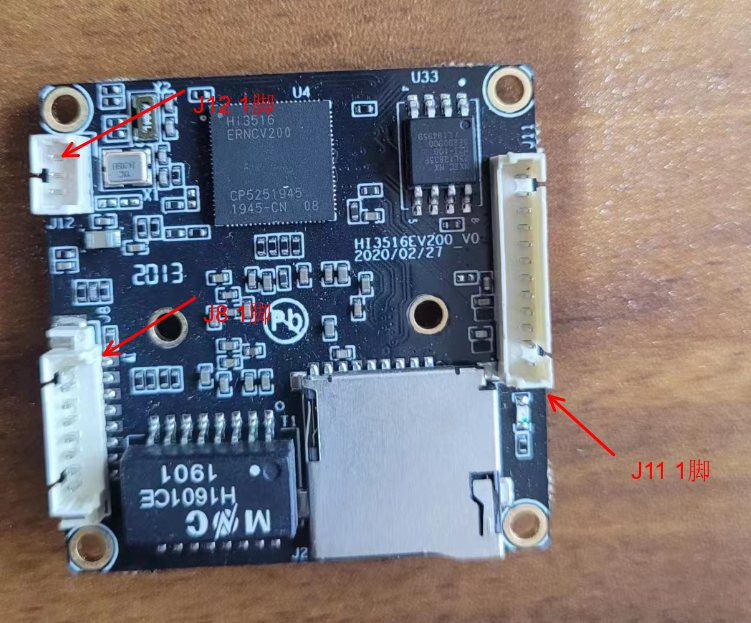

(4) uart debug

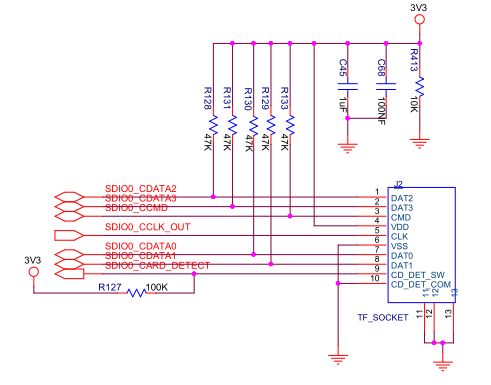

（5）tf card

4. Reference document for hi3516ev200 image output test

Hi3516ev200 Development Board SDK Image Output Test_v0.1.pdf

Other material download links

3516ev200 development resources

Link: https://pan.baidu.com/s/1ZGC0wZcgx7dwbFdyuKK_tw  Password: qyij

liteos sdk：

Link: https://pan.baidu.com/s/1o0ZeqStQbRJDA_SdkWdi8A
Extraction code: h52q
