HiSilicon3518EV300Board Guide
Project: Development Board Shipping Materials | page_id: 40
3518EV300 Board Environment Setup and Operation Guide

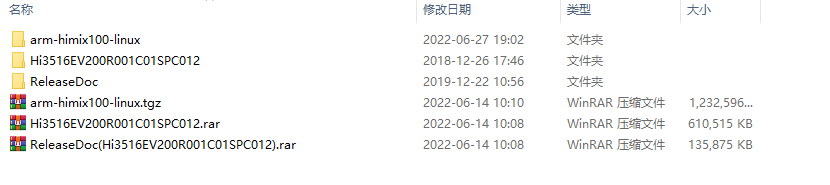

1. Download the hi3518ev300 SDK
Link: https://pan.baidu.com/s/1-j9-I6tWRxj2_imMumjAIA Extraction code: xstr
Notes:

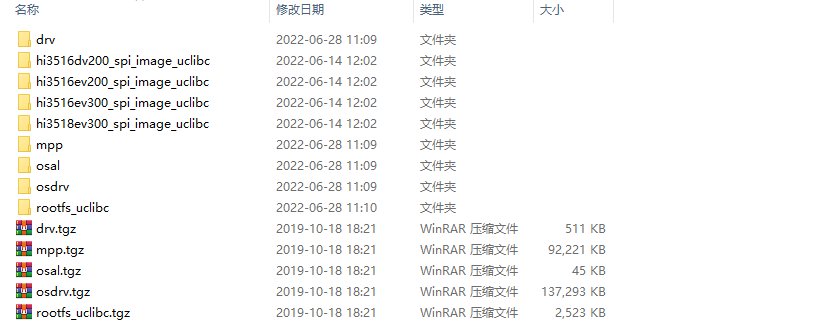

（1）Source code path: SDK\Hi3516E V200R001C01SPC012\Hi3516EV200R001C01SPC012\01.software\board\Hi3516EV200_SDK_V1.0.1.2\package

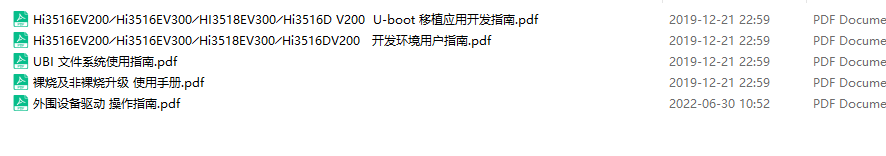

（2）Development guide: SDK\Hi3516E V200R001C01SPC012\ReleaseDoc\zh\01.software\board\OSDRV
2. Download the virtual machine
Link: https://pan.baidu.com/s/1sYXrl9PInsk20BAndN0gbA Extraction code: xstr Virtual machine password: 123456

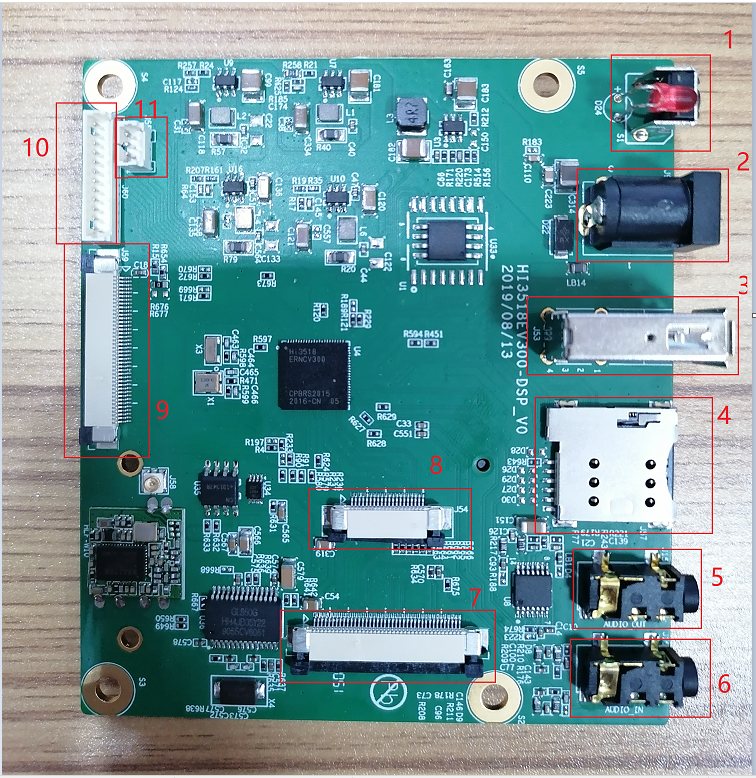

3. Hardware interface diagram
(1) power enable

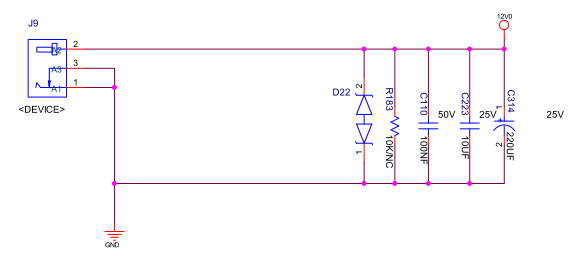

(2) power in

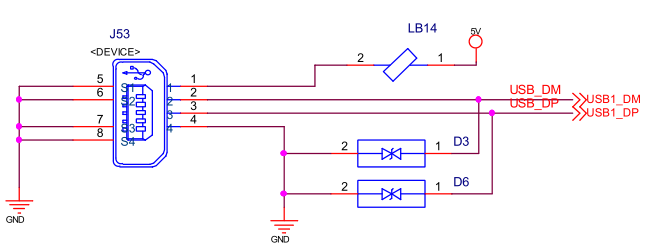

(3) USB

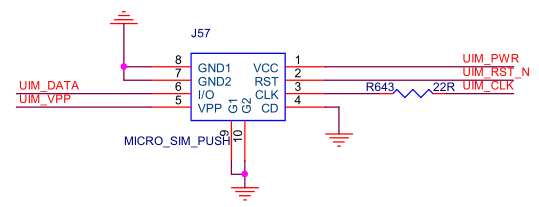

(4) MICRO SIM PUSH

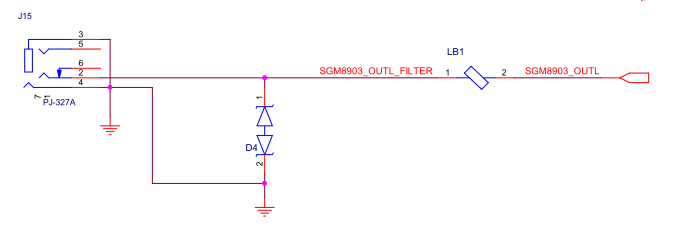

(5) SGM8903 OUTL

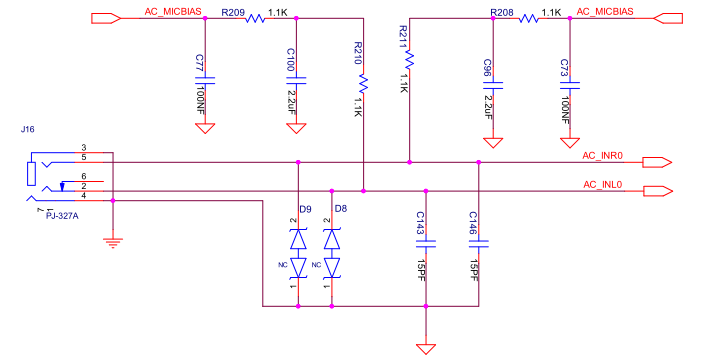

(6) AUDIO IN

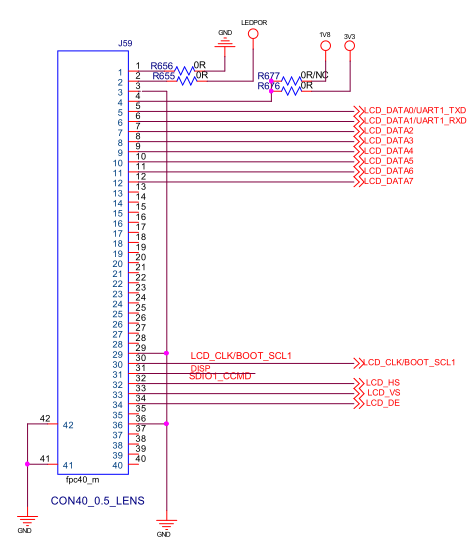

(7) LENS

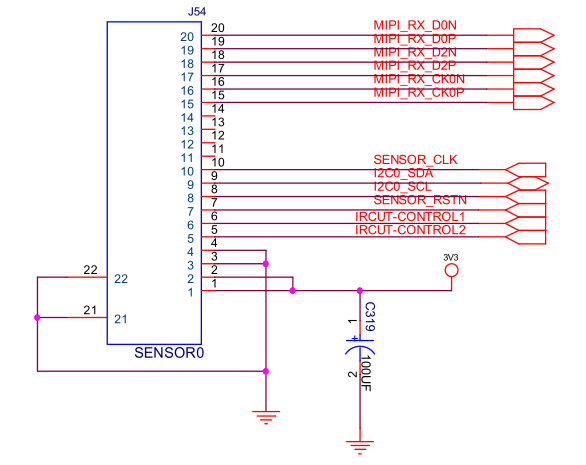

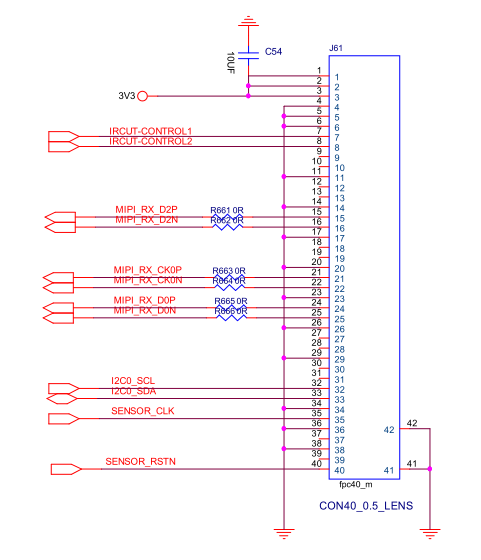

(8) SENSOR0
(9) LENS

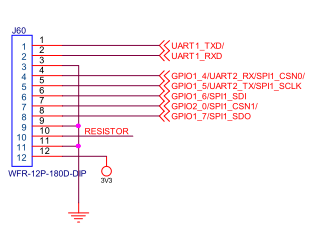

(10) UART1/UART2/SPI1
(11) UART0

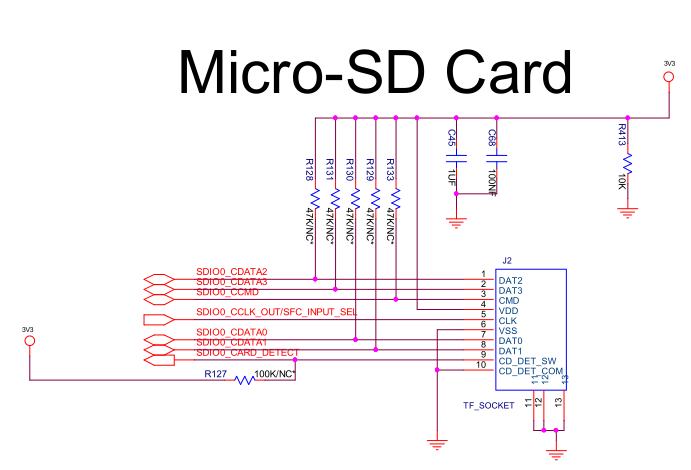

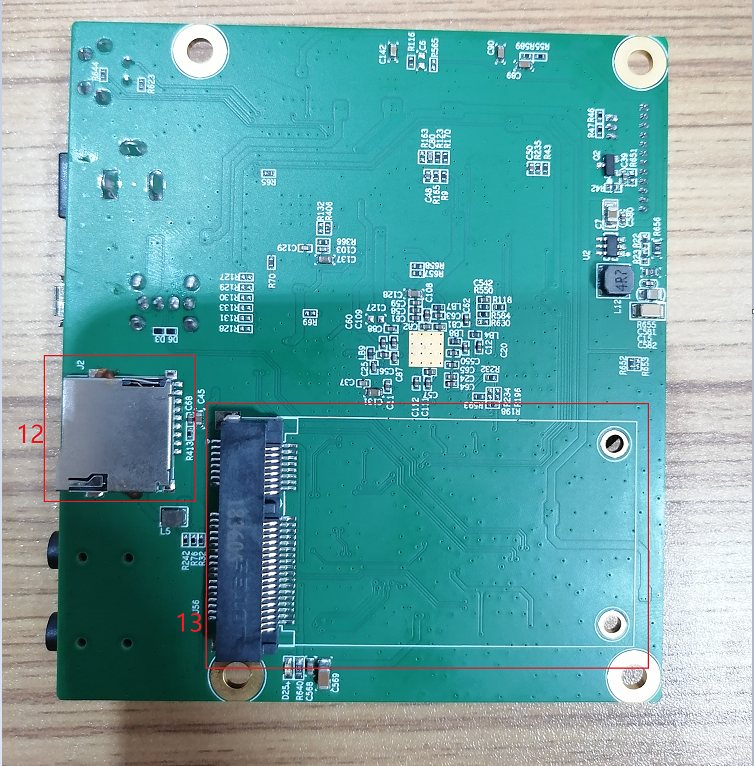

(12) micro SD card

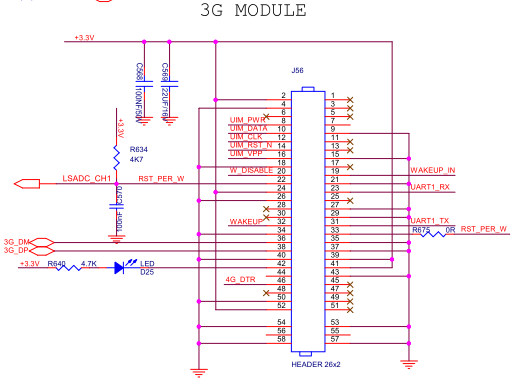

(13) 3G Module
4. hi3518ev300 image output test
Hi3518ev300 Development Board SDK Image Output Test_v0.1.pdf
5. WiFi test materials
(1) Material package
docs.html
(1) WiFi debugging procedure document
docs.html
6. Other material download links
3518ev300 development resources
Link: https://pan.baidu.com/s/1ZGC0wZcgx7dwbFdyuKK_tw Password: qyij
Interface diagram reference link:
Hi3518EV300 Core Board Description.docx
WIFI and interface diagram
