API Reference（(New)Interface）

Project: Device API Documentation (New Version) | page_id: 258

Note: non-paying customers must read the documentation themselves; no technical support is provided.

Paying customers, please contact your sales manager for technical support.

This API documentation is generic. For the specific functions of a product, refer to the specific product datasheet or product page description; do not use the API documentation as a reference.

For the English version, visit: [http://endoc.xstrive.com/web/#/2/2](http://endoc.xstrive.com/web/#/2/2)

I. Signature Rules (token generation)

1. The signature uses md5 encryption to generate the token parameter, which is passed for verification.

2. The secret key secret defaults to f6fdffe48c908deb0f4c3bd36c032e72

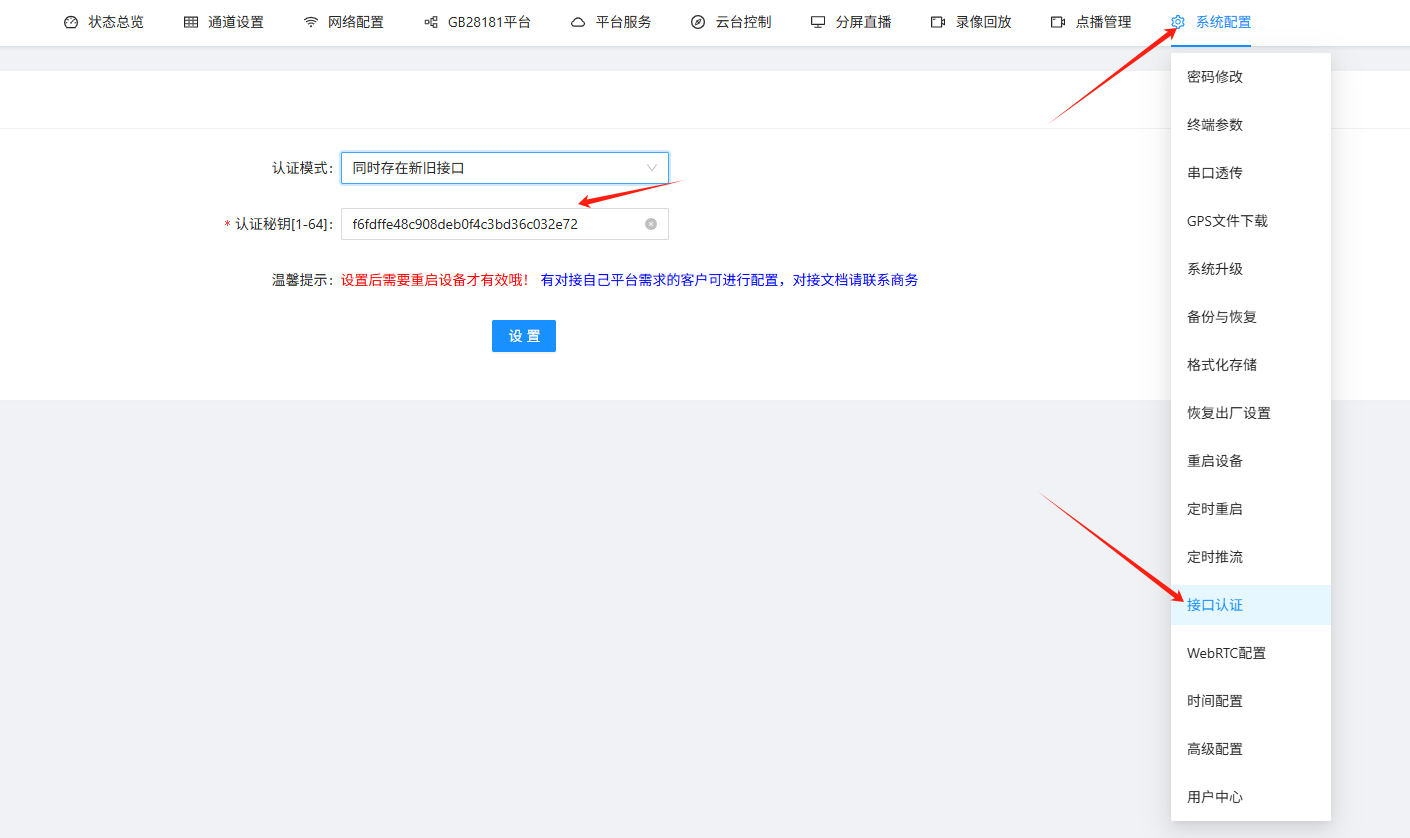

   • It can be configured on the web page via 【System Configuration】==》【API Authentication】


   • It can be modified via the API /xsw/api/modUserSecret

3. Sort the string to be encrypted in the lexicographical order of the URL parameters and join them with &. If parameters are passed in the body, the parameters in the body are not concatenated into the string.
   Parameter lexicographical sorting JS code example: keys = [key1,key2,...,secret,t]; keys = keys.sort();
   For other languages, please refer to their own API documentation.
   Example: refer to the sample code in Chapter 5 below

II. Fixed Parameters Carried in the Request URL

Default request content-type setting

header[‘content-type’] = application/x-www-form-urlencoded

For requests with body parameters, unless otherwise noted, the content-type is
header[“content-type”] = application/json; charset=utf-8
For cross-origin requests, set it to header[“content-type”] = text/plain; charset=utf-8

When uploading files, the content-type is
header[“content-type”] = “multipart/form-data”

• Local API address
  Use the search tool to find the device IP and access it by IP. For example, if the device IP is 192.168.0.15, then the API address is: http://192.168.0.15
• Remote access API address:
  You need to register an account at https://platform.xstrive.com/ , or log in directly if you already have one. After logging in, bind the device to the device list by serial number, and you can then call the remote access API: https://live.xstrive.com/serialnumber/ where 【serialnumber】must be replaced with the serial number of your own device.

III. Unified Failure Response JSON Format

{
    "code": Number, // error code
    "msg": String   // error message
}

Example:

{
    "code":401, // 401 authentication failed, you need to log in again; please redirect to the login page
    "msg":"Illegal request"
}

IV. Rules for Switching from the Old API to the New API

1. The new API uniformly adds the prefix /xsw
2. The auth parameter is removed. For example, the auth in the URL parameters can be removed. The auth value in the body must be removed.
   For example:
   For the /xsw/control API: the auth in the URL parameters can be removed.
3. Return values are changed uniformly from strings to JSON format.

V. Reference Method for Generating the Parameter Encryption Token

import md5 from "js-md5";
const mySecret = "f6fdffe48c908deb0f4c3bd36c032e72"
export const md5Params = (params) => {
  params.t = (new Date().getTime() / 1000).toFixed(0)
  let str = "";
  let keys = Object.keys(params);
  keys.push("secret");
  keys = keys.sort(); // sort the parameter keys
  keys.forEach((key: string) => {
    if (key == "token") {
      return;
    }
    if (str != "") {
      str += "&";
    }
    if (key == "secret") {
      str += `${key}=${mySecret}`;
    } else {
      str += `${key}=${params[key]}`;
    }
  });
  params.token = md5(str);
  console.log("md5: ", str, params.token)
  return params;
};

// Usage example: get the recording list
export const GetRecordList = () => {
  const args = {
    beginTime: 1673193600000,
    endTime: 1673279999999,
    channel: 0,
  }
  const newArgs = md5Params(args)
  // String concatenated before md5 (all parameters except token)
  // beginTime=1673193600000&channel=0&endTime=1673279999999&secret=f6fdffe48c908deb0f4c3bd36c032e72&t=1673255651
  // Generated token: 80c192912ea8c97523876b47cf2658a1
  const reqUrl = `http://192.168.0.15/xsw/api/record/list?beginTime=${newArgs.beginTime}&endTime=${newArgs.endTime}&channel=${newArgs.channel}&t=${newArgs.t}&token=${newArgs.token}`
  console.log("reqUrl", reqUrl)
  // Final reqUrl: http://192.168.0.15/xsw/api/record/list?beginTime=1673193600000&endTime=1673279999999&channel=0&t=1673255651&token=80c192912ea8c97523876b47cf2658a1
}

Where
mySecret is replaced with your secret key
md5 third-party library: js-md5

Token Generation Test Tool

Click to download apitool.zip
