Home / Docs Center / Device API Reference / UploadSingleOSDImage
UploadSingleOSDImage
Project: Device Interface Document (New Version) | page_id: 1640
[TOC]
Brief Description
- Upload a single OSD image
Request URL
xsw/uploadosd
Request Method
- POST
header["content-type"] = "multipart/form-data"
URL Query Parameters
| Parameter Name | Required | Type | Description |
|---|---|---|---|
| channelId | Yes | number | Channel ID, starting from 1 |
| zone | Yes | number | Area, starting from 1 |
Form Data Parameters
| Parameter Name | Required | Type | Description |
|---|---|---|---|
| file | Yes | File | Uploaded image |

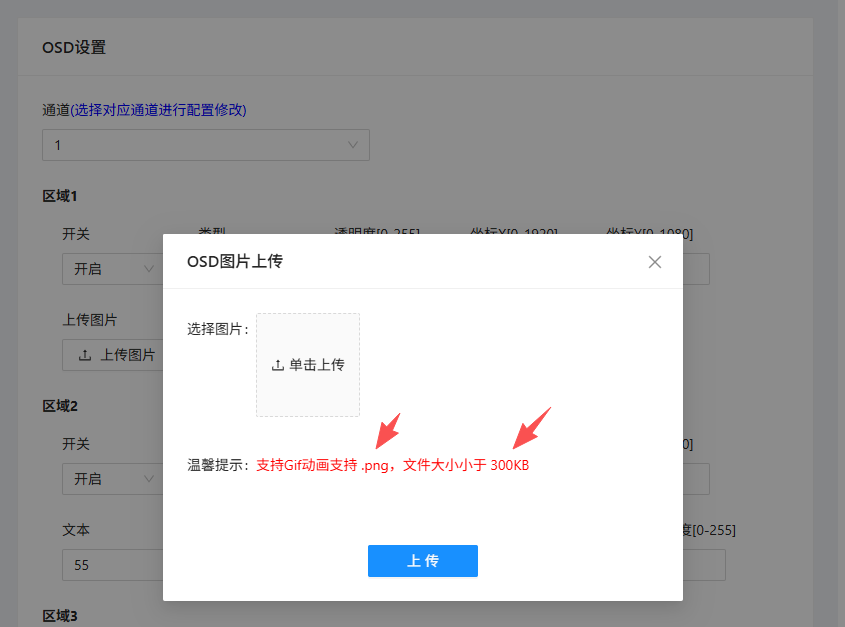

** The hardware has restrictions on the image format and size. Images that exceed the limits or do not meet the requirements will not be displayed. For specific requirements, please refer to the device management page **

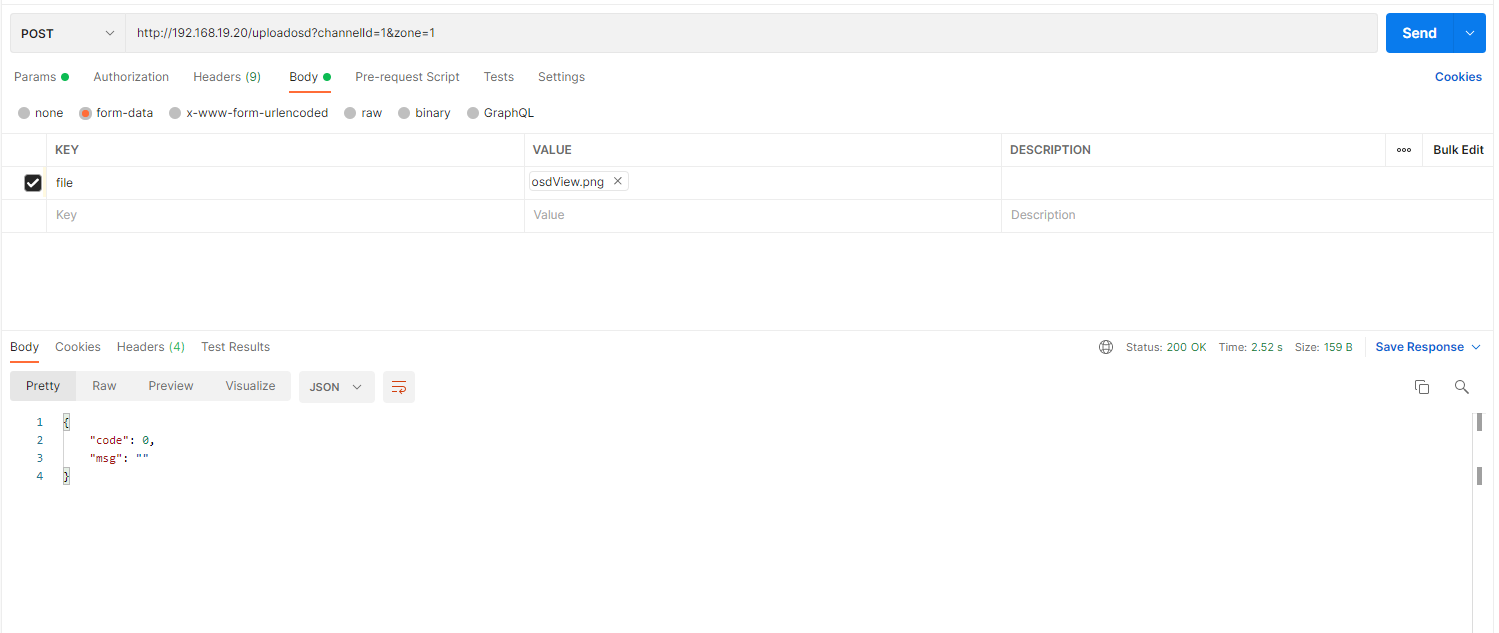

Request Example
Interface reference
Remarks
- The hardware has restrictions on the image format and size. Images that exceed the limits or do not meet the requirements will not be displayed. For specific requirements, please refer to the device management page
- The image takes effect immediately after being uploaded
