UploadOSDImage Real-time Overlay
Project: Device Interface Document (New Version) | page_id: 1018
[TOC]
Brief Description
- Upload OSD image for real-time overlay
Request URL
/xsw/api/system/uploadMulFile?fileDir=/tmp
Request Method
- POST
header["content-type"] = "multipart/form-data"
Parameters
| Parameter Name | Required | Type | Description |
|---|---|---|---|
| k1 | No | File | OSD file name for region 1 overlay: logo_1_1.bmp |
| k2 | No | File | OSD file name for region 2 overlay: logo_1_2.bmp |
| k3 | No | File | OSD file name for region 3 overlay: logo_1_3.bmp |
| k4 | No | File | OSD file name for region 4 overlay: logo_1_4.bmp |
The original image needs to be in png format; please change the extension .png to .bmp before uploading. We apologize for the inconvenience

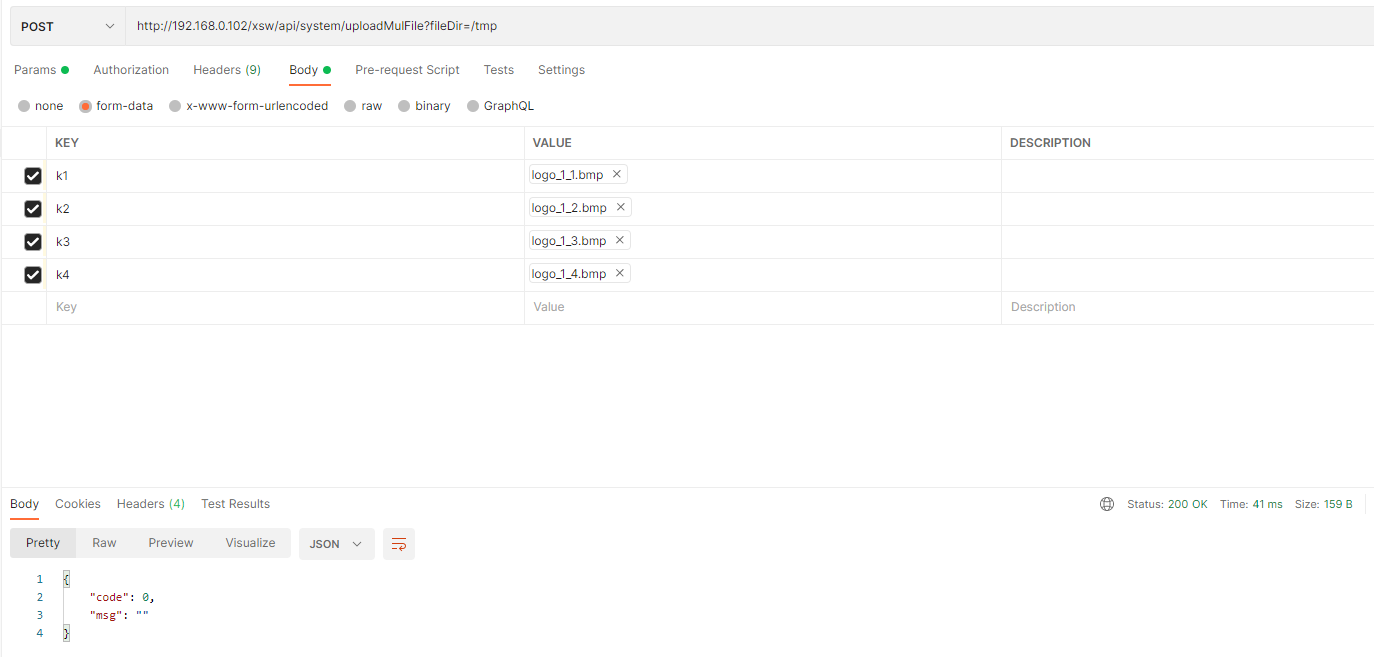

Request Example
Notes
- The uploaded file name is fixed and cannot be changed at will, otherwise it will be invalid
- The image width and height must be a multiple of 16, for example: 160*160
