Mini 4K Decoder
Project: Product Specification | page_id: 1675
| Mini 4K Video Decoder MD10 | |
|---|---|
| Model | MD10(XSWDCR-4K60P) |
| Network Video Input Protocol | HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/webrtc |
| Video Decoding Format | H.264/H.265 |
| Audio Decoding Format | AAC/G.711 |
| Max Decoding Capability | Single channel 4K60 / 4 channels 1080p@60 |
| Video Output Interface | HDMI（4K@60） VGA(1080p60) |
| Audio Output Interface | HDMI embedded audio output |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters, supports setting the video decoding address through http API |
| Power Supply | DC-12V |
| Operating Temperature | 0 to 70℃ |
| Dimensions | 65x30x8mm |
| Dimensions | 51g |

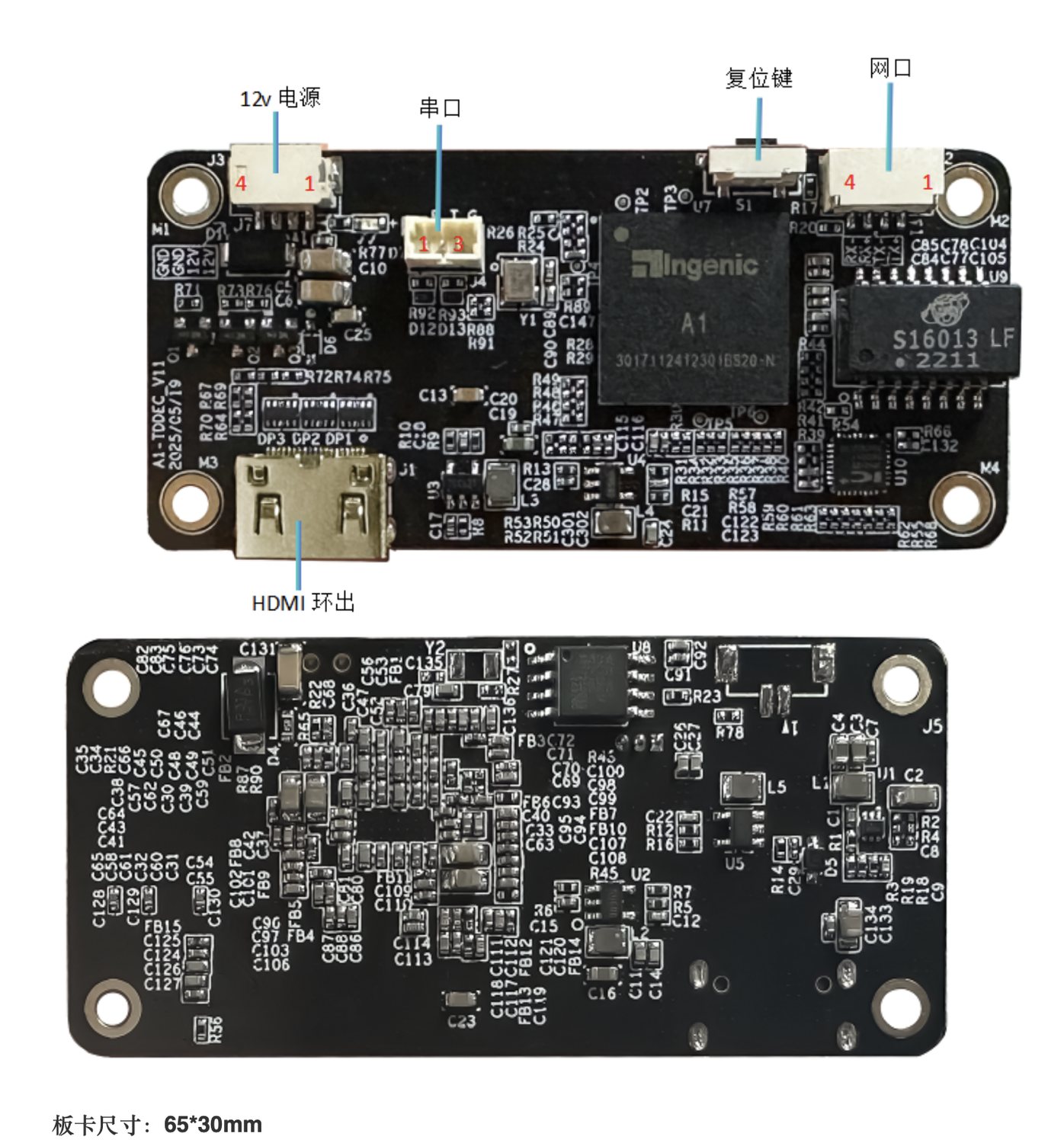

Product Images
Device Manual Link
In-site Docs Center
FAQ
| Question | Answer |
|---|---|
| 1. Can an alarm be triggered when the image is lost? | This function is not available at present; it can be customized if needed |
| 2. Can we get root access to this mainboard system? We want to install software in it | No, but you can write it and we will help put it in |
| 3. Is this ARM? Can it be flashed with Android? | It is a MIPS architecture and cannot be flashed with Android |
| 4. What is the decoding capability? | The decoder capability is 4K60fps. Connected to a 4K30fps video, it can decode 1 channel; it can decode 9 channels of 1080p30fps, and 16 channels of 720p30fps (currently the device can only display a maximum of 9 grids; decoding 16 channels of 720P requires customization) |
| 5. What is the decoder latency? | The latency on the LAN is 80～140ms |
| 6. Can the decoder be controlled directly through a keyboard, or does it need to be controlled through a computer? | The decoder is controlled through the computer web page and cannot be controlled directly by keyboard |
| 7. Can the decoder control PTZ rotation? | It supports controlling the PTZ of cameras and other devices through ONVIF and GB28181 |
