UHD Screen Mirror Rotator
Project: Product Specifications | page_id: 1117
| UHD Image Mirror Rotator | |
|---|---|
| Model | XSWDCR-ROTATE-UHD60P |
| Video Input | 4k@30/1080P@60, backward compatible |
| Video Output | 8 modes, rotation by 90/180/270/0 degrees, supports left-right mirroring |
| Audio Output | Passthrough |
| Control Method | Buttons or remote control |
| Video Output Interface | HDMI（1080@60） |
| Remote Upgrade | Supported |
| Power Supply | DC-12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 150x100x35mm |
| Weight | 325.8g |

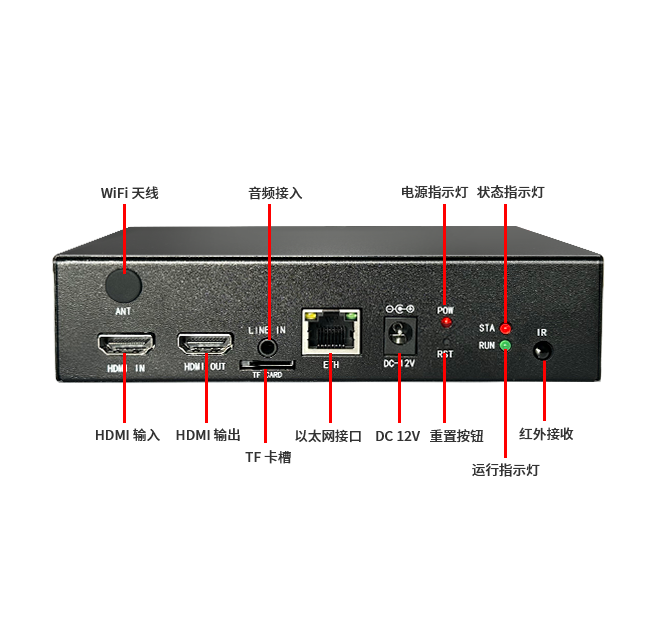

Product Images
Packing List
UHD image mirror rotator x1, remote control x1, 12V power supply x1
Device Manual Link
docs.html
FAQ
| Question | Answer |
|---|---|
| 1、Does it support 4k@60? | This function is currently not supported; it can be customized if needed |
| 1、Does it support 8K? | This function is currently not supported; it can be customized if needed |
