Ingenic T31 Door Lock Status Controller

Dev Boards & Modules · Ingenic T31

Project: Board Introduction | page_id: 1659

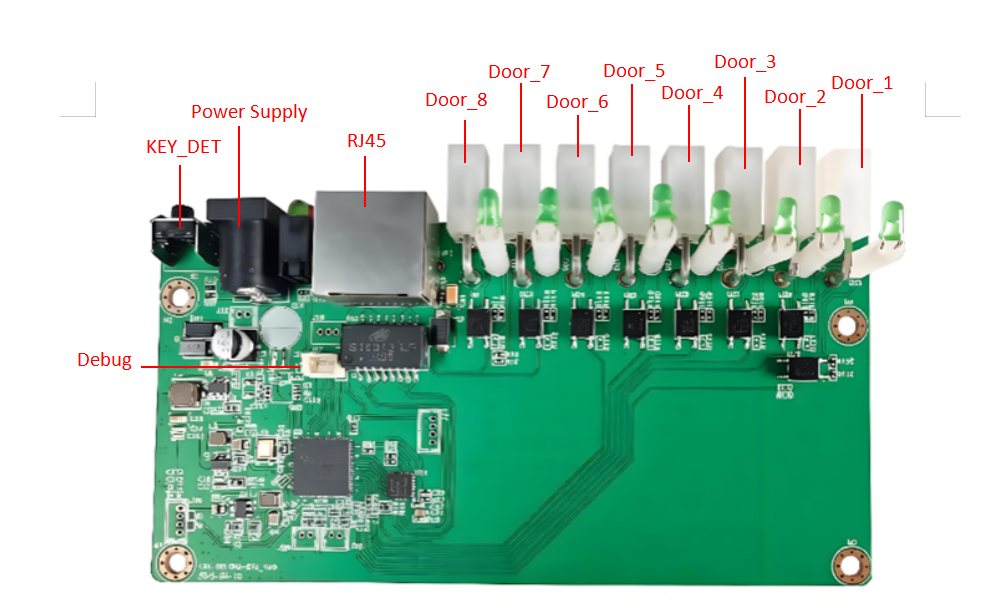

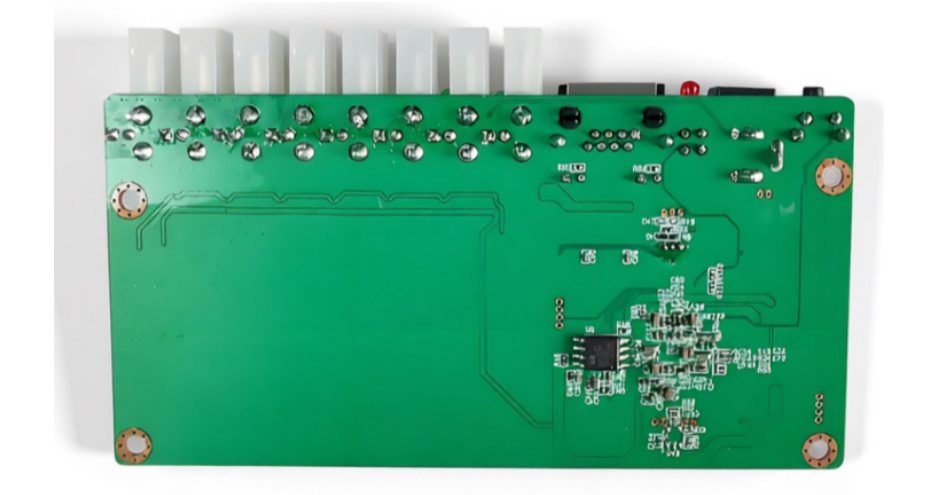

I. Product Images

Board Size: 115*58mm

II. Chip Specifications

Main Control Model: T31N

Description

Features

CPU
• Ultra-high main frequency, up to 1.5GHz.
• 1.5GHz SIMD128 AI acceleration engine
• 64KB + 128KB L1 / L2 Cache
• Risc V independent small core

Video Encoder
• H.264/H.265/MJPEG encoder
• Resolution up to 2592*1920@30fps
• World-class encoding engine
• Supports multiple streams and multi-parameter configuration

Starlight-Level ISP
• Special optimization for low-illumination video surveillance scenarios
• New generation 2D/3D noise reduction
• Sharpening enhancement, ROI-AE
• Advanced WDR, DRC
• Distortion correction

Memory
• Built-in DDR: 512Mb/1Gb

Security
• AES/RSA/SHA/TRNG/OTP, supports secure boot

AI Fast Implementation

• Supports deep learning algorithms with high accuracy and good flexibility
• Supports human detection, face detection and face recognition
• Supports cry detection, vehicle detection and pet detection

Package

• 22nm process technology
• Package: QFN88/BGA192

Fast Boot

• Supports fast boot
• Dual boot
• Fast auto exposure / auto white balance
• Stable image output in about 200ms

Extended Circuits
• Supports 4-channel digital MIC array
• Supports IoT-WIFI / BT / 4
• Supports SLCD display
• Supports UVC/UAC

Audio
• Internal audio codec
• Supports multiple sampling rates: 8K/12K/16K/24K/32K/44.1K/48K/96K
• Supports I2S
• Supports echo cancellation

Peripheral Circuits

• Supports WDT, ADC, UART, I2C, SPI, GPIO, SDIO, PWM, USB, GMAC
