Ingenic S32 Serial-Port Photo Camera Module
Project: Board Introduction | page_id: 1329
Product Introduction
Board Size: 33*33mm
Chip Specifications
Description
Features
CPU
• Ultra-high main frequency, up to 1.5GHz.
• 1.5GHz SIMD128 AI acceleration engine
• 64KB + 128KB L1 / L2 Cache
• Risc V independent small core
Video Encoder
• H.264/H.265/MJPEG encoder
• Resolution up to 2592*1920@30fps
• World-class encoding engine
• Supports multiple streams and multi-parameter configuration
Starlight-Level ISP
• Special optimization for low-illumination video surveillance scenarios
• New generation 2D/3D noise reduction
• Sharpening enhancement, ROI-AE
• Advanced WDR, DRC
• Distortion correction
Memory
• Built-in DDR: 512Mb/1Gb
Security
• AES/RSA/SHA/TRNG/OTP, supports secure boot
AI Fast Implementation
• Supports deep learning algorithms with high accuracy and good flexibility
• Supports human detection, face detection and face recognition
• Supports cry detection, vehicle detection and pet detection
Package
• 22nm process technology
• Package: QFN88/BGA192
Fast Boot
• Supports fast boot
• Dual boot
• Fast auto exposure / auto white balance
• Stable image output in about 200ms
Extended Circuits
• Supports 4-channel digital MIC array
• Supports IoT-WIFI / BT / 4
• Supports SLCD display
• Supports UVC/UAC
Audio
• Internal audio codec
• Supports multiple sampling rates: 8K/12K/16K/24K/32K/44.1K/48K/96K
• Supports I2S
• Supports echo cancellation
Peripheral Circuits
• Supports WDT, ADC, UART, I2C, SPI, GPIO, SDIO, PWM, USB, GMAC

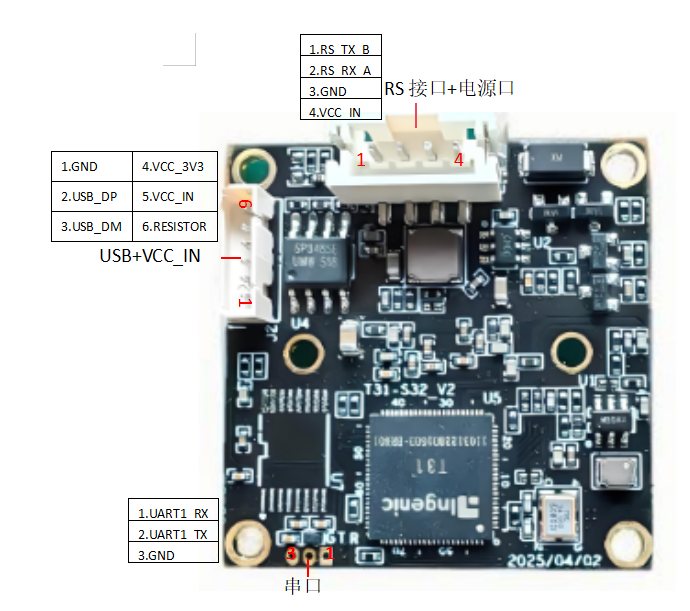

Interface Circuits

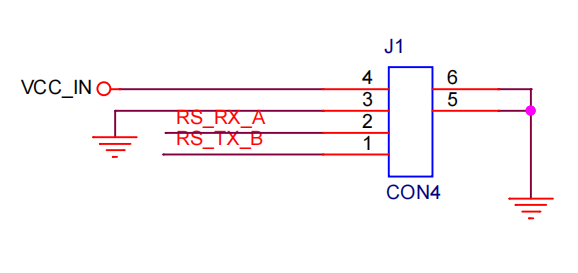

Power / RS485 / TTL

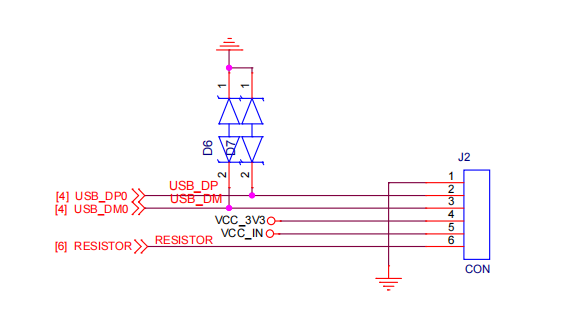

USB / VCC_IN / VCC_3V3 / RESISTOR

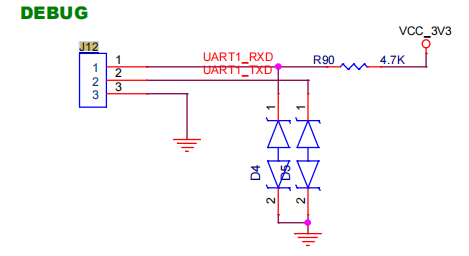

Debug Serial Port

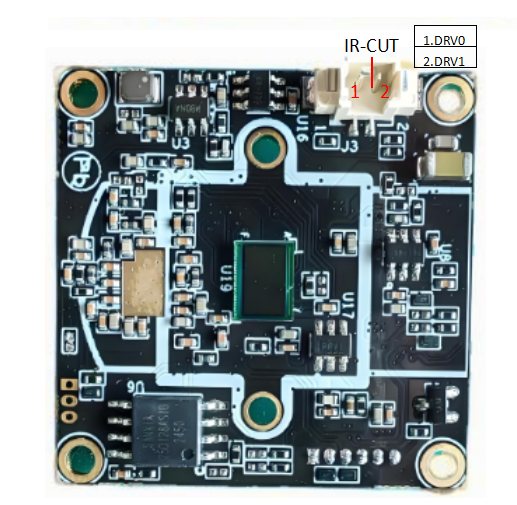

IR-CUT
