BinocularSV830DFace Recognition Terminal

Project: Board Introduction | page_id: 1651

Product Specifications Table

Main product function introduction:

(1) High-definition LCD screen: equipped with a high-resolution color LED screen for face recognition, status prompts and identity verification result feedback. The screen supports Chinese and English language interfaces, which can be switched freely as needed, ensuring the clarity of information display and the friendliness of user interaction.
(2) Dual-camera system: adopts a high-performance dual-camera design. The main camera is responsible for capturing high-definition face images, while the auxiliary camera is used for depth information perception, effectively enhancing the accuracy and speed of face recognition. The two cameras work together to achieve accurate recognition even in complex lighting environments.
(3) LED fill light: the front of the device is equipped with a high-brightness LED indicator, which can be turned on adaptively to provide fill light for face recognition.
(4) Liveness detection technology: integrates advanced face liveness detection technology, which can effectively distinguish real faces from photos, videos and other forgery methods, prevent fraud, and ensure the authenticity and security of identity recognition.
(5) Efficient face registration and recognition: supports fast face registration, and users can complete information entry in just a few simple steps. The recognition speed is fast and the response time is short, greatly improving the passage efficiency and user experience.
(6) Ethernet OTA remote upgrade: supports http, ftp and other remote upgrades, making it easy to connect to existing management systems and efficiently manage multiple batches of devices in collaboration.
(7) Supports NFC card swiping
(8) Supports WiFi function
(9) Supports playing wav audio files

Operation Guide

(1) Install and deploy the device at places where access control, attendance or monitoring is required.
(2) Collect the face image information of relevant personnel as required. ID photos are the best; avoid full-body or half-body photos.
(3) For face photo registration, you only need to connect through websocket. Our company provides the websocket connection protocol document.
(4) After the registration is completed, the device enables the liveness detection function.
(5) When relevant personnel pass through the face recognition device, face recognition is required. Personnel who pass the recognition can pass the access control or clock in for attendance successfully. Personnel whose faces are not registered or whose photos do not meet the requirements will fail the recognition and need to contact the administrator for manual processing.

Supports management platform access (websocket protocol)

Just refer to the websocket protocol document

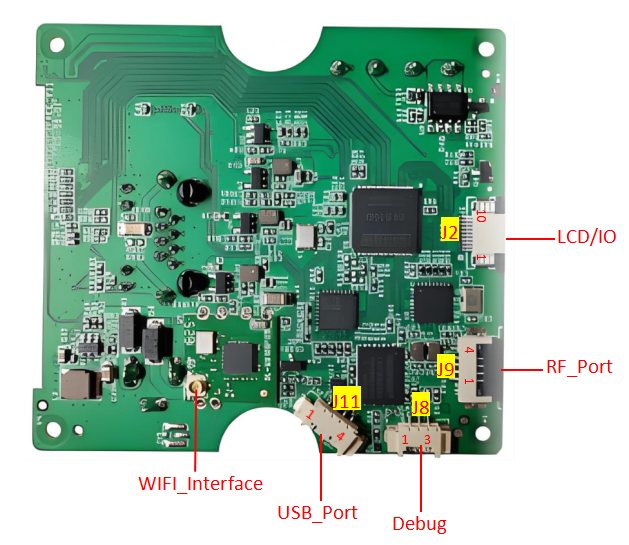

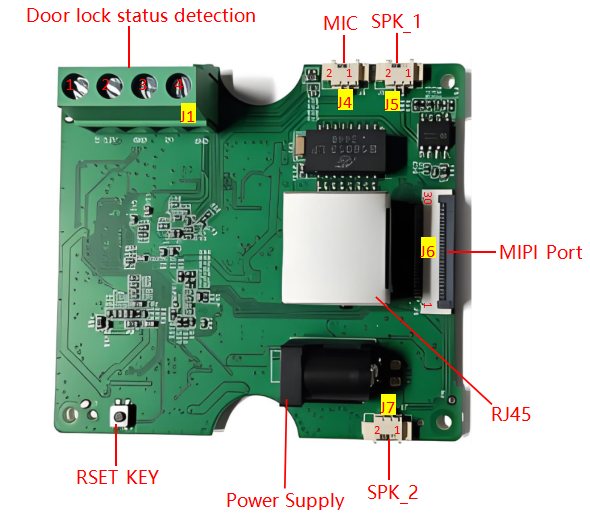

I. Product Images

Board Size: 65*60mm

II. Chip Specifications

Description

The SV830 series integrates a 0.5T self-developed NPU, which efficiently supports intelligent algorithms such as human shape detection, face detection/recognition, cry/abnormal sound detection, gesture recognition, vehicle detection and ADAS. This series features professional ISP image quality, supports 5MP encoding, and has built-in 512 Mb/1 Gb DDR. It supports fast boot and fast image output, realizing low-power AI applications, and is suitable for a variety of intelligent terminal devices.

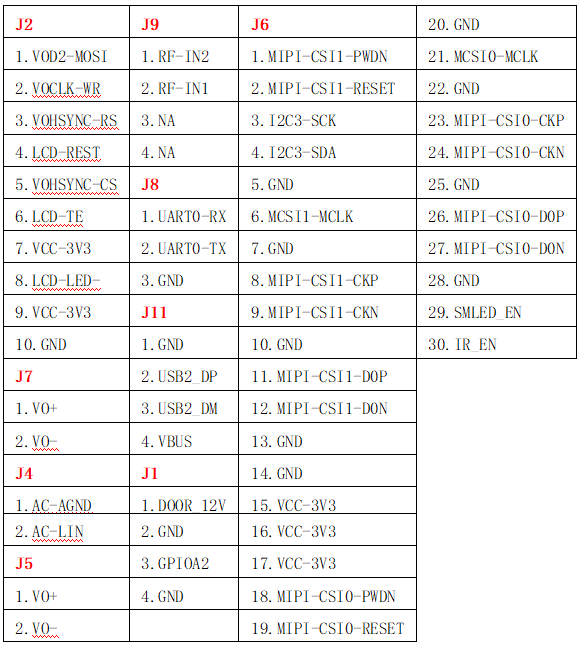

III. Interface Circuits

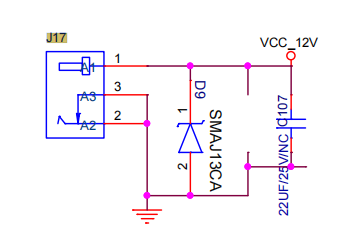

Power Supply

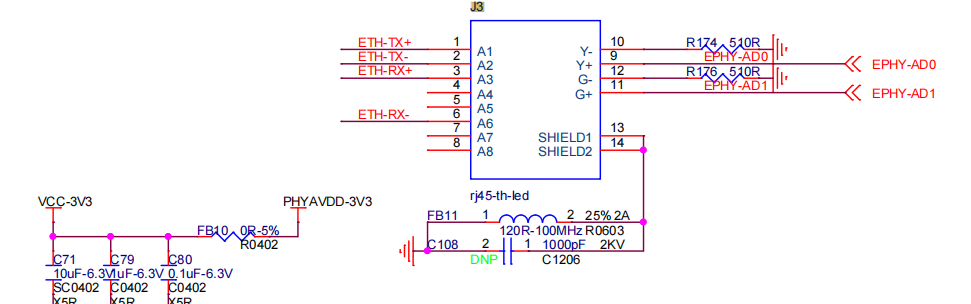

RJ45

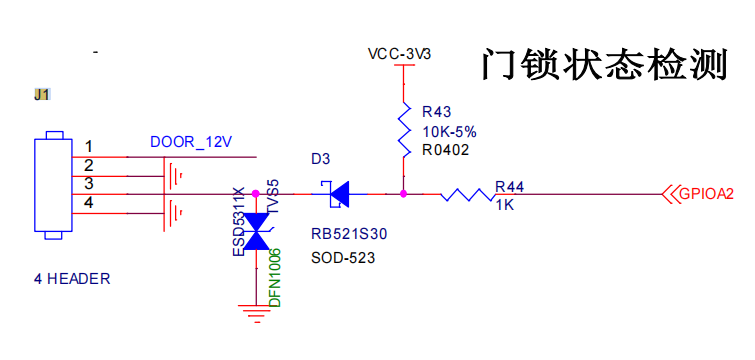

Door lock status detection

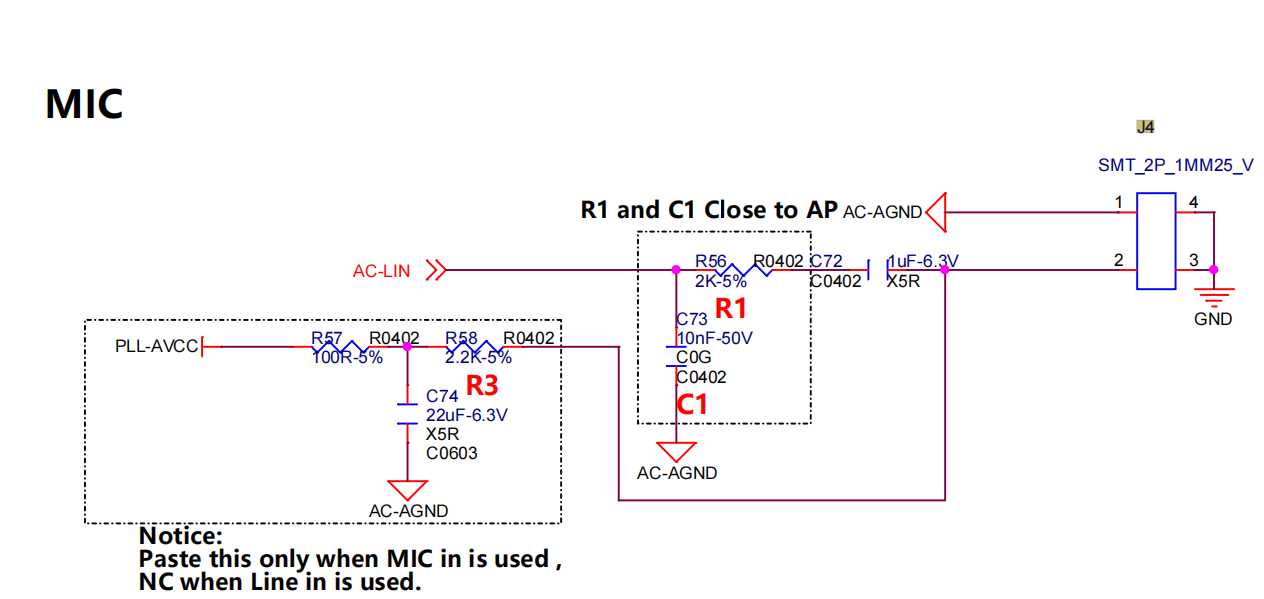

MIC

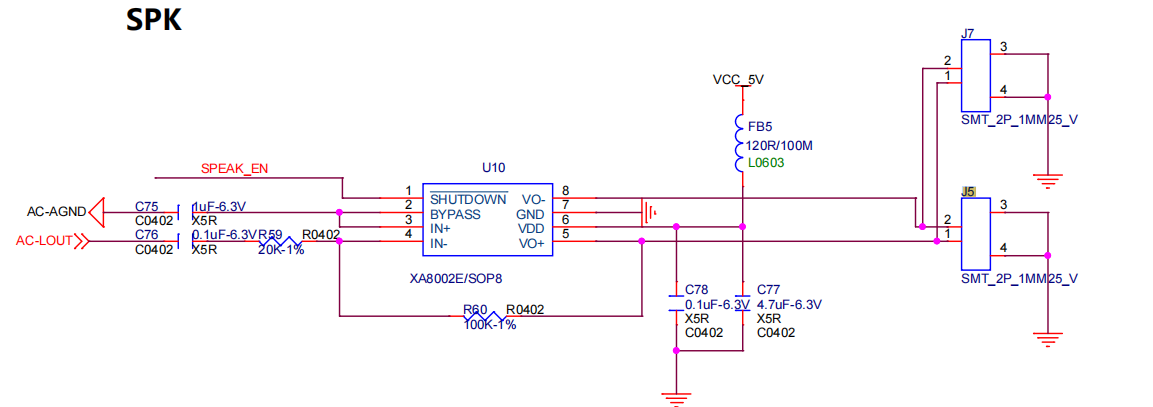

SPK

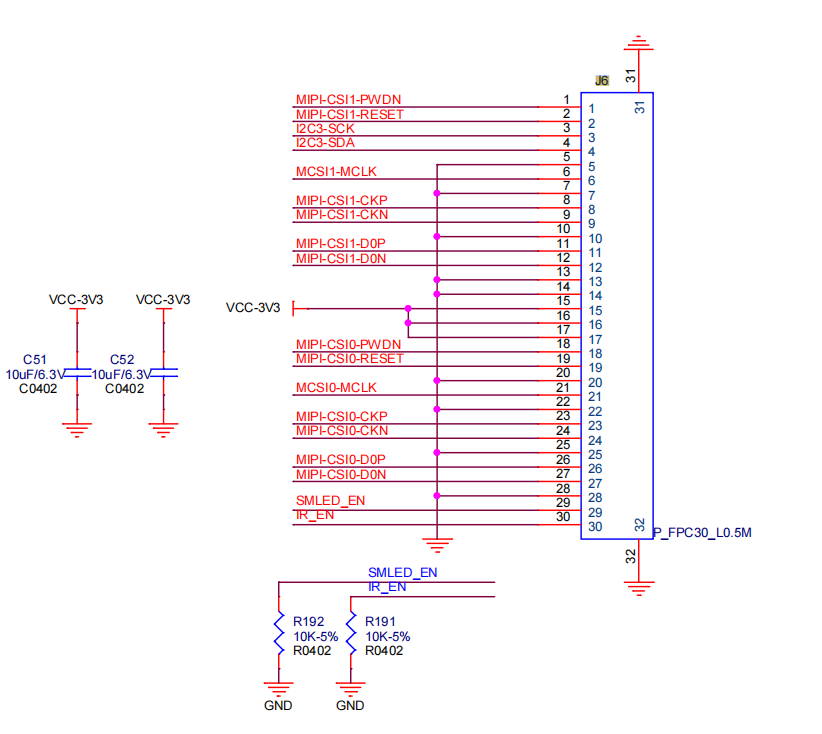

MIPI_Port

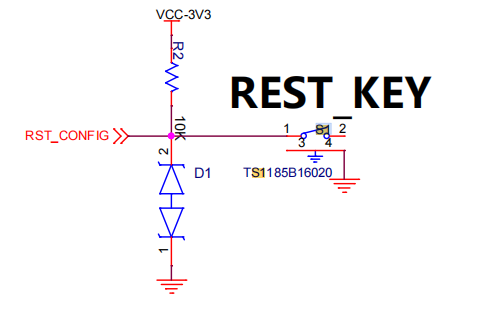

REST_KEY

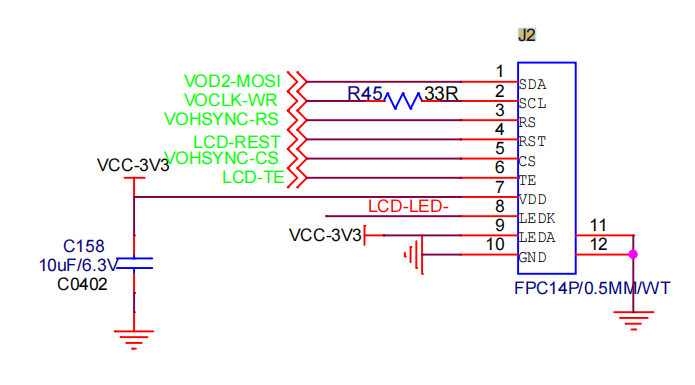

LCD/IO

RF_Port

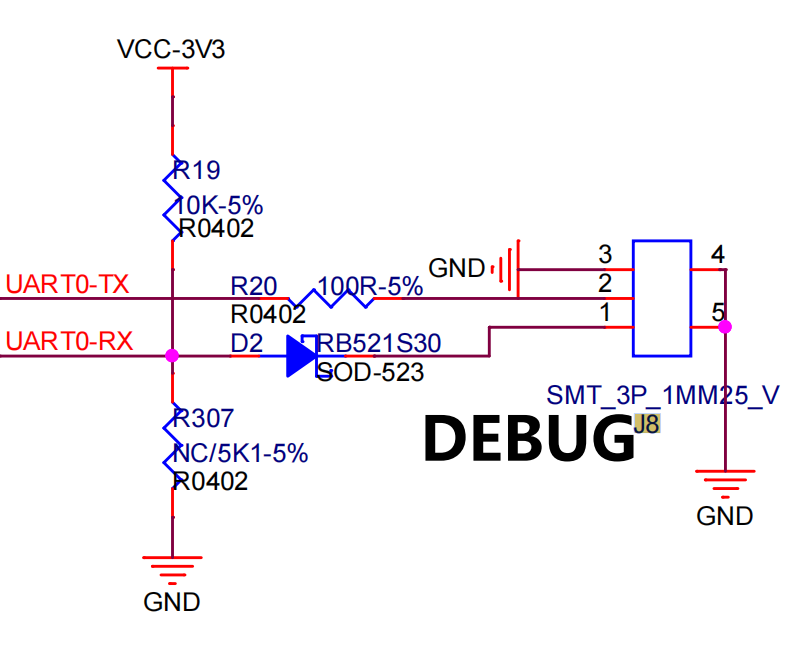

Debug

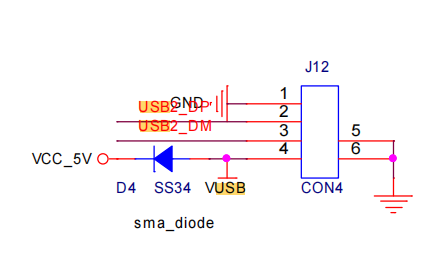

USB_Port

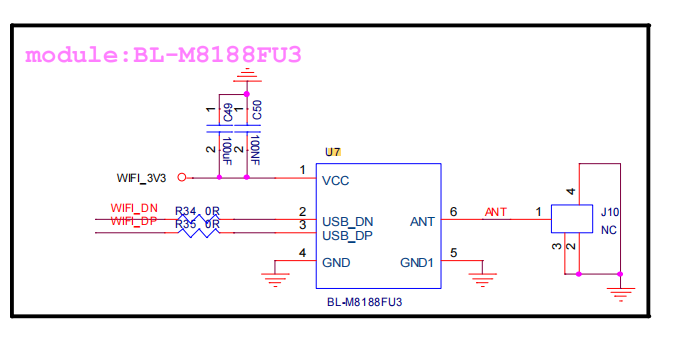

WIFI_Interface
