CAT1GNSS RTCExpansion Board
Project: Board Introduction | page_id: 870

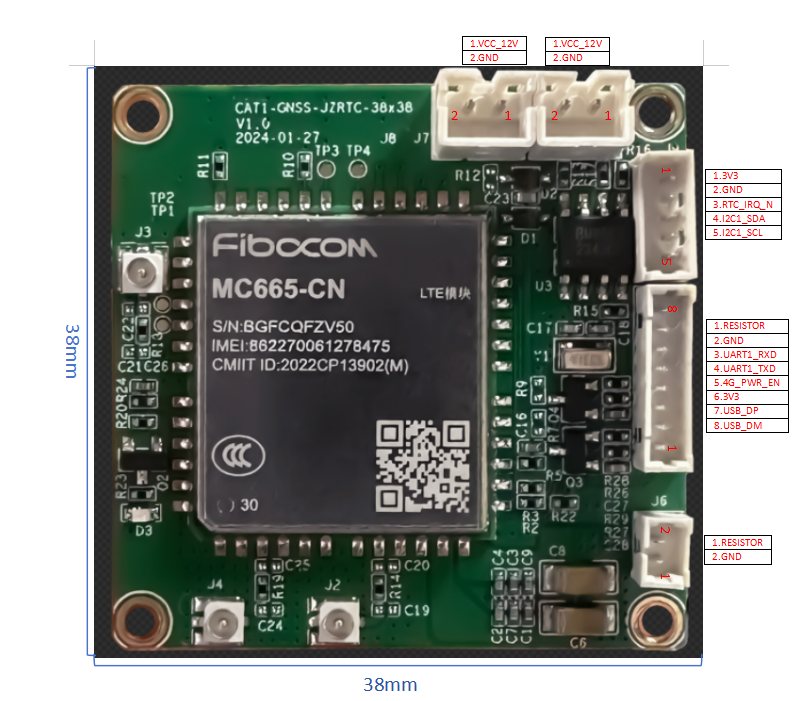

CAT1-GNSS-JZRTC-38x38
MC665-CN Module Introduction
MC665-CN is a high-performance LTE Cat1 bis wireless communication module. It uses LCC+LGA packaging, with a size of 20.2mm22.2mm2.3mm, and supports domestic operator 4G bands. MC665-CN has a rich set of built-in network protocols, integrates multiple common interfaces, and supports various drivers and software functions (such as Windows /Android/Linux and other mainstream operating systems), meeting various application requirements of the IoT industry. The product is positioned to cover the medium and low speed IoT market, such as trackers, general payment, sharing, industrial interconnection, security monitoring, BMS, in-vehicle and many other application scenarios. It provides customers in the above fields with a perfect wireless experience. MC665-CN is an LTE only wireless communication module that supports optional functions such as dual SIM dual standby, GNSS, WiFiScan and PSM. MC665-CN is a high-performance LTE Cat1 bis wireless communication module. It uses LCC+LGA packaging, with a size of 20.2mm22.2mm2.3mm, and supports domestic operator 4G bands. MC665-CN has a rich set of built-in network protocols, integrates multiple common interfaces, and supports various drivers and software functions (such as Windows /Android/Linux and other mainstream operating systems), meeting various application requirements of the IoT industry. The product is positioned to cover the medium and low speed IoT market, such as trackers, general payment, sharing, industrial interconnection, security monitoring, BMS, in-vehicle and many other application scenarios. It provides customers in the above fields with a perfect wireless experience. MC665-CN is an LTE only wireless communication module that supports optional functions such as dual SIM dual standby, GNSS, WiFiScan and PSM.
| MC665-CN-36 MC665-CN-16 MC665-CN-18 MC665-CN-19 |
|---|
| Region China |
|---|
| Basic Features |
| Package LCC+LGA LCC+LGA LCC+LGA LCC+LGA |
| Dimension (mm) 20.2×22.2×2.3 20.2×22.2×2.3 20.2×22.2×2.3 20.2×22.2×2.3 |
| LTE FDD B1/3/5/8 B1/3/5/8 B1/3/5/8 B1/3/5/8 |
| LTE TDD B34/38/39/40/41（full band）B34/38/39/40/41（full band） B34/38/39/40/41（full band） B34/38/39/40/41（full band） |
| Power Supply 3.4V - 4.3V (Typical 3.8V) 3.4V - 4.3V (Typical 3.8V) 3.4V - 4.3V (Typical 3.8V) 3.4V - 4.3V (Typical 3.8V) |
| Operating Temp. -30°C - +75°C -30°C - +75°C -30°C - +75°C -30°C - +75°C |
| Transmission Rate |
| LTE FDD (Mbps) 10.3(DL)/5.1(UL) 10.3(DL)/5.1(UL) 10.3(DL)/5.1(UL) 10.3(DL)/5.1(UL) |
| LTE TDD (Mbps) 9.1(DL)/3.1(UL) 9.1(DL)/3.1(UL) 9.1(DL)/3.1(UL) 9.1(DL)/3.1(UL) |
| Functions |
| WiFi-Scan ● ● NA NA |
| BLE NA NA NA NA |
| OpenCPU ● ● ● ● |
| FOTA DFOTA DFOTA DFOTA DFOTA |
| OS Drivers Linux/Windows/Android Linux/Windows/Android Linux/Windows/Android Linux/Windows/Android |
| GNSS ● NA NA NA |
| TTS ● NA NA NA |
| SMS ● ● Optional Optional |
| Audio ● ● ● NA |
| Protocols |
| TCP/UDP/ |
| HTTP/HTTPS/ |
| FTP/FTPS/ |
| HeartBeat/ |
| MQTT/ |
| SSL/TLS/ |
| Built-in protocol stack supports IPV6 |
| TCP/UDP/ |
| HTTP/HTTPS/ |
| FTP/FTPS/ |
| HeartBeat/ |
| MQTT/ |
| SSL/TLS/ |
| Built-in protocol stack supports IPV6 |
| TCP/UDP |
| HTTP/HTTPS |
| FTP/FTPS |
| HeartBeat |
| MQTT |
| SSL/TLS |
| Built-in protocol stack supports IPV6 |
| TCP/UDP |
| HTTP/HTTPS |
| FTP/FTPS |
| HeartBeat |
| MQTT |
| SSL/TLS |
| Built-in protocol stack supports IPV6 |
| Interfaces |
| SIM x2, 1.8V/3.0V x1, 1.8V/3.0V x1, 1.8V/3.0V x1, 1.8V/3.0V |
| USB x1, USB2.0 x1, USB2.0 x1, USB2.0 x1, USB2.0 |
| UART x2 x2 x2 x2 |
| SPI ● ● ● ● |
| ADC x2 x2 x2 x2 |
| GPIO ● ● ● ● |
| SDIO NA NA NA NA |
| I2C ● ● ● ● |
| Certification |
| Regulation RoHS/CCC/NAL/SRRC RoHS/CCC/NAL/SRRC RoHS/CCC/NAL/SRRC RoHS/CCC/NAL/SRRC |
| Operator CTCC/CMCC CTCC/CMCC CTCC/CMCC CTCC/CMCC |
| Industry NA NA NA NA |
