HDMI HD Recorder
Project: Product Specification | page_id: 1152
| HDMI Recording Box | |
|---|---|
| Model | XSWEDR-SLHDMI-LC-E11 |
| Video Input | 1-channel network HDMI input interface |
| Video Output | 1-channel HDMI output interface (same as video input) |
| Audio Input | 1-channel stereo analog audio input interface / HDMI embedded audio |
| Network Interface | 100M Ethernet port |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters; register at platform.xstrive.com to use |
| Power Supply | DC 12V |
| Operating Temperature | 0~70℃ |
| Dimensions | 150x100x35mm |
| Weight | 333.1g |

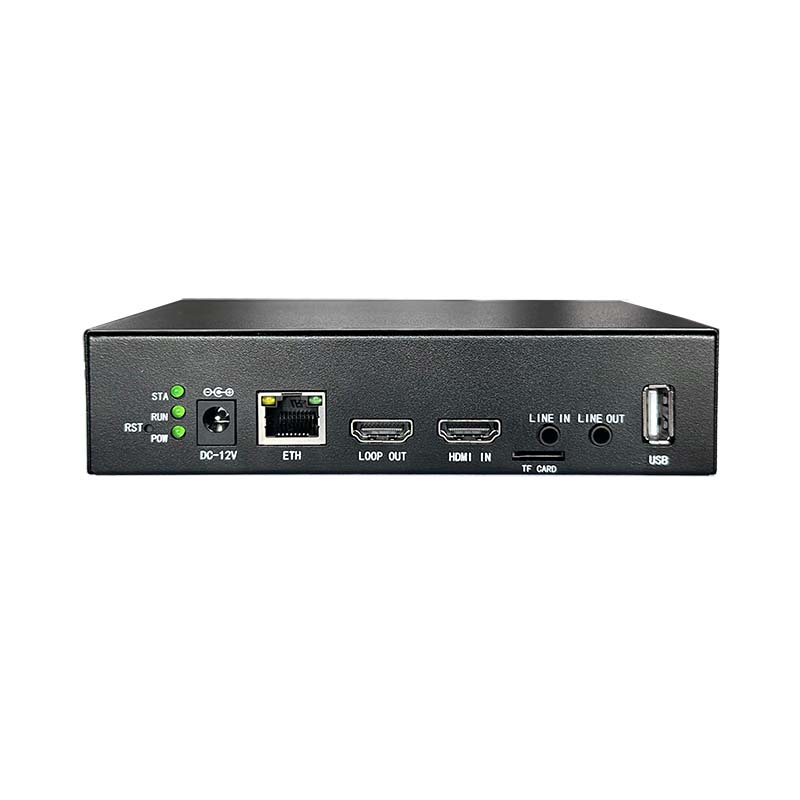

Product Images
Product Manual Link (Chinese Version)
In-site Docs Center
FAQ
| Question | Answer |
|---|---|
| 1. Is OSD configuration supported? | Yes |
| 2. Is 4K output supported? | 2K is supported |
