Desktop XST3588 AI Terminal
Project: Product Datasheet | page_id: 494
| Rack-Mount XST3588 AI Terminal | |
|---|---|
| CPU | RK3588 4 cores A77 + 4 cores A55 |
| Memory | Built-in 8GB |
| EMMC | Built-in 16GB |
| AI | INT4/INT8/INT16/FP16 6TOPS computing power, supports TensorFlow/MXNet/PyTorch/Caffe |
| Video Encoding | See Appendix 1 |
| Configurable Algorithms | Pedestrian, human head, e-bike, safety helmet, car; other algorithms require customization |
| Video Decoding | Supports H.265/H.264 encoding, maximum hevc 8k@30fps, can analyze 16 channels of 1080p@30 video simultaneously |

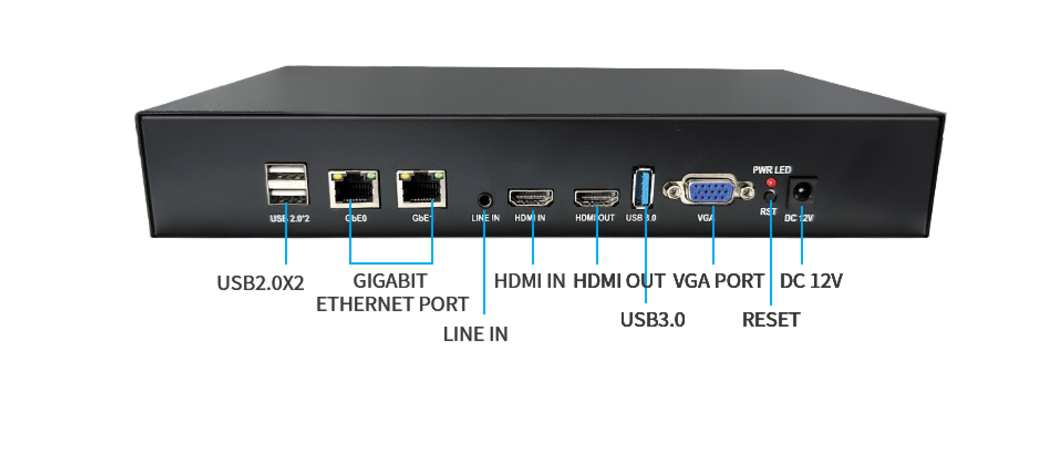

| Video Input | 1-channel HDMI, maximum input resolution 8K@30fps |
| Video Output | 1-channel HDMI, maximum resolution 8K@60fps, 1-channel VGA maximum 1920x1080@60fps |
| Serial Communication | RS485x1,RS232x1 |
| Analog Audio Input | Hi-Fi stereo audio input x1 |
| USB | USB 2.0x2/USB3.0x1 |
| Network | RJ45 10/100/1000M x2 |
| Power Supply | AC 110~220V |
| Operating Temperature | 0 to 70℃ |
| Storage | SATA up to 32TB |
| Service Life | Continuous operation life of more than 5 years |
Appendix 1 (Encoding Capability Description)
◼ H.264 AVC/MVC Main10 L6.0 : 8K@30fps (7680x4320)
◼ VP9 Profile0/2 L6.1 8K@60fps (7680x4320)
◼ H.265 HEVC/MVC Main10 L6.1 : 8K@60fps (7680x4320)
◼ AVS2 Profile0/2 L10.2.6 8K@60fps (7680x4320)
◼ AV1 Main Profile 8/10bit L5.3 : 4K@60fps (3840x2160)
◼ MPEG-2 up to MP 1080p@60fps (1920x1088)
◼ MPEG-1 up to MP 1080p@60fps (1920x1088)
◼ VC-1 up to AP level 3 1080p@60fps (1920x1088)
◼ VP8 version2 1080p@60fps (1920x1088)
