MonocularSV830CFace Recognition Terminal

Dev Boards & Modules · EEasyTech SV830

Project: Board Introduction | page_id: 1650

Product Specifications Table

Module	Specification	Description
Power Supply	5V
SPI NAND FLASH	256M
Hard Disk	512M DDR2
Chip Type	Intellifusion SV830C
Single Camera	GC2063
USB OTG	1	Firmware burning USB port
UART	2	Console port and data transmission

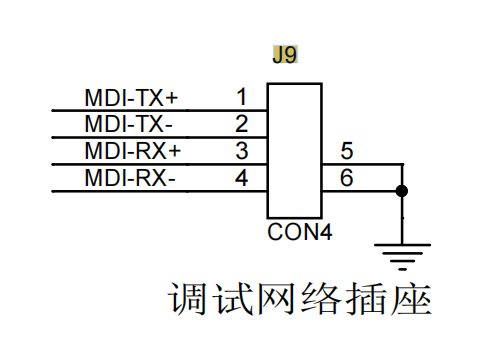

Ethernet Port	1	Supports Ethernet OTA firmware upgrade

Main product function introduction:
(1) Dual-camera system: used for face age and gender recognition
(2) Face registration is not supported, and no face registration interface is provided
(3) Ethernet OTA remote upgrade: supports http, ftp and other remote upgrades

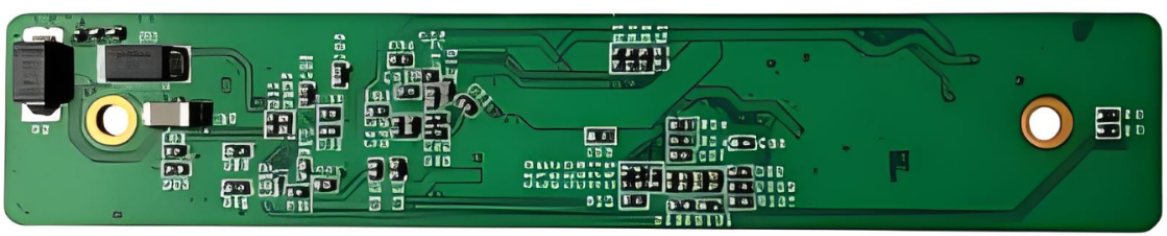

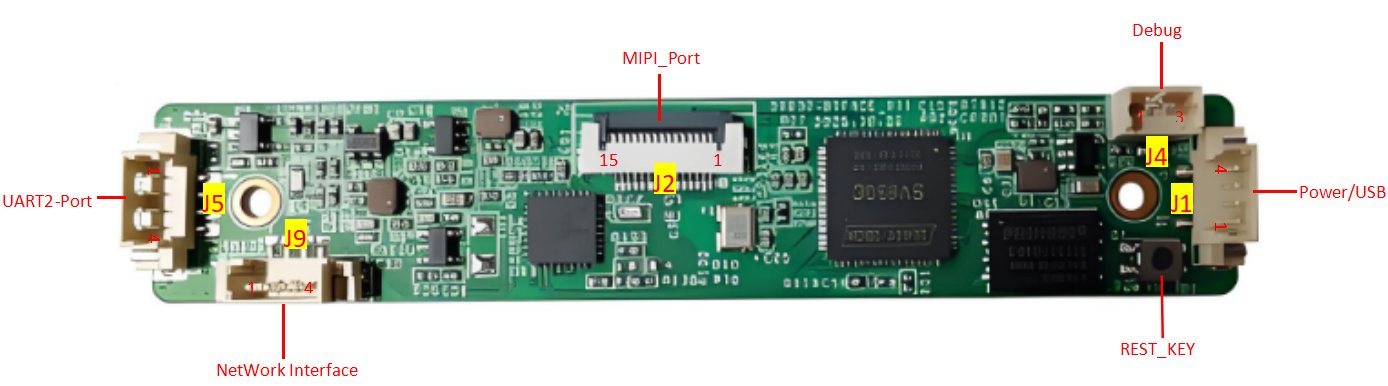

I. Product Images

Board Size: 80*15mm

II. Chip Specifications

Description

The SV830 series integrates a 0.5T self-developed NPU, which efficiently supports intelligent algorithms such as human shape detection, face detection/recognition, cry/abnormal sound detection, gesture recognition, vehicle detection and ADAS. This series features professional ISP image quality, supports 5MP encoding, and has built-in 512 Mb/1 Gb DDR. It supports fast boot and fast image output, realizing low-power AI applications, and is suitable for a variety of intelligent terminal devices.

Chip Series	SV830C/SV830D
CPU	Single-CoreArm Cortex-A7CPU + RISC-V CPUSingle-CoreArm Cortex-A7CPU + RISC-V CPU
NPU	0.5 TOPS0.5 TOPS
Memory	Embedded 512 Mb DDR2SPINOR/SPINAND/eMMCSD2.0Embedded 1 Gb DDR3LSPINOR/SPINAND/eMMCSD2.0
Camera	DVP and MIPI-CSI2dual channel video inputsDVP and MIPI-CSI2dual channel video inputs
ISP	4MP@30fps, supporting D-WDR and 3DNR5MP@30fps, supporting D-WDR and 3DNR
Video Codec	H.264 2K@30fpsH.264 5MP@30fps
Display	Serial RGB/MCU/BT.656/SPI/MIPI DSISerial RGB/MCU/BT.656/SPI/MIPI DSI
Package	QFN88, 9 mm x 9 mmQFN88, 9 mm x 9 mm
