IngenicA1 mini HDMIDecoder Board

Project: Board Introduction | page_id: 1198

Product Introduction

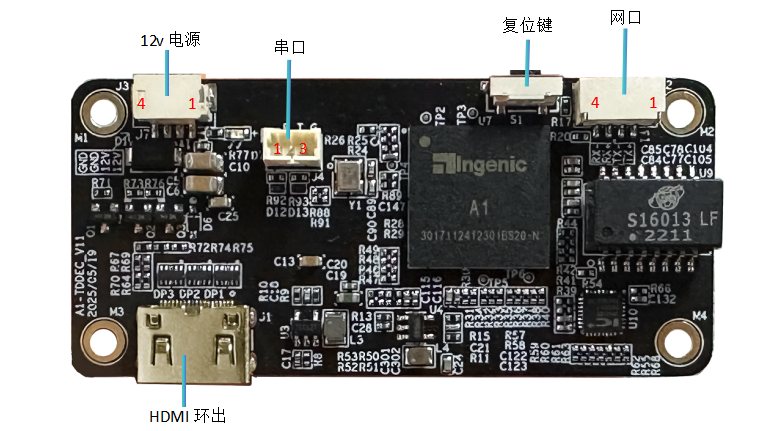

Board Size: 65*30mm

Chip Specifications

Ingenic A1 adopts a 1.4GHz dual-core CPU and supports core capabilities such as 4K@90fps decoding, native 4K display, dual Gigabit Ethernet ports and dual SATA. To meet the continuously upgrading AI requirements of the security industry,
A1 integrates 1.4T@int8/5.6@int4 AI computing power, satisfying the needs of simultaneous video structuring, detection and recognition for multiple video sources. In addition, A1 integrates key peripherals such as DDR, RTC and Audio, greatly optimizing the product implementation cost.
Taking advantage of the integration advantages in Magik, with 1.4T@int8/5.6@int4 computing power, back-end functions such as centralized recognition, secondary detection and video element retrieval can be implemented. Combined with the intelligent capabilities of Ingenic's front-end T series security chips, a distributed AI security system with coordinated front-end and back-end can be easily built.

I. Core Performance Parameters

‌Processor Architecture‌: dual-core CPU, main frequency 1.4GHz

‌Video Processing Capability‌:
Supports 4K@90fps HD decoding
Native 4K display output
Max resolution / encoding frame rate: 4096*4096

‌AI Computing Power‌:
1.4T@int8 / 5.6T@int4
2. Supports simultaneous structured analysis and recognition of multiple video sources

‌Storage and Peripherals‌:
Integrates key peripherals such as DDR, RTC and Audio, optimizing system cost
Supports dual SATA interfaces and dual Gigabit Ethernet ports
Supports BT-UHD ultra HD Bluetooth codec technology, with transmission bandwidth up to 6.5Mbps

II. Application Scenarios

‌Security Back-End Equipment‌: specially designed for NVR (network video recorder, video security system), suitable for high-performance scenarios requiring multi-channel video analysis
‌Intelligent Requirements‌: meets the computing power requirements of the security industry for real-time video detection and recognition

Ingenic A1 provides chips of different grades according to different application positioning, meeting the different development needs of low-, mid- and high-end NVR products. In addition to supporting traditional requirements such as ultra-large capacity disk bays and ultra HD decoding for video wall display, the A1 chip also supports mainstream industry categories such as WiFi kits and POE; in addition, combined with Ingenic's advantages in front-end intelligence and low power consumption, A1 also covers emerging forms such as low-power base stations, NAS and smart light screens.
In addition, this series of Ingenic chips, with its powerful performance in CPU, VPU, ISP and AI engine, as well as rich peripherals and interfaces, has important application value in video processing, security monitoring, industrial control, Internet of Things and other fields, and can meet the needs of different industries for high-performance, low-power chips.

Interface Circuits

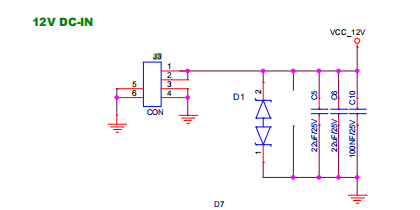

12V Power

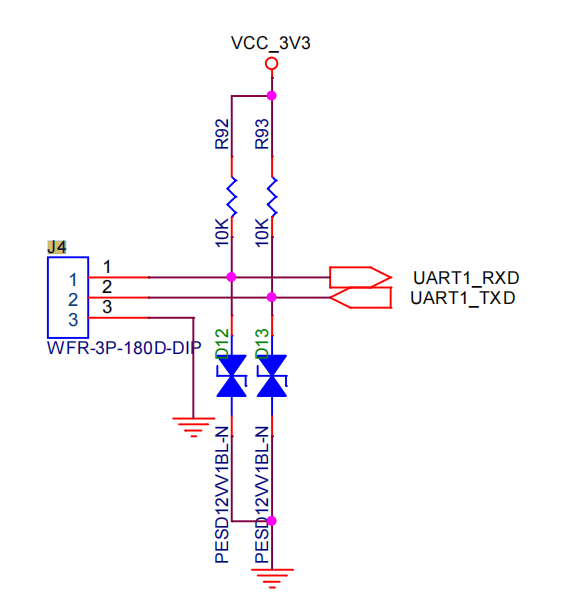

Debug Interface

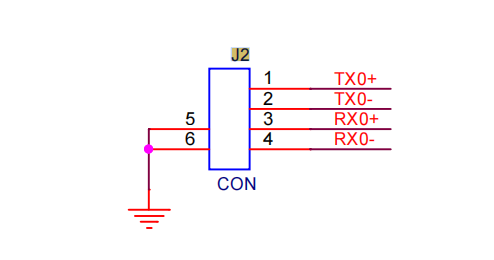

Network Interface

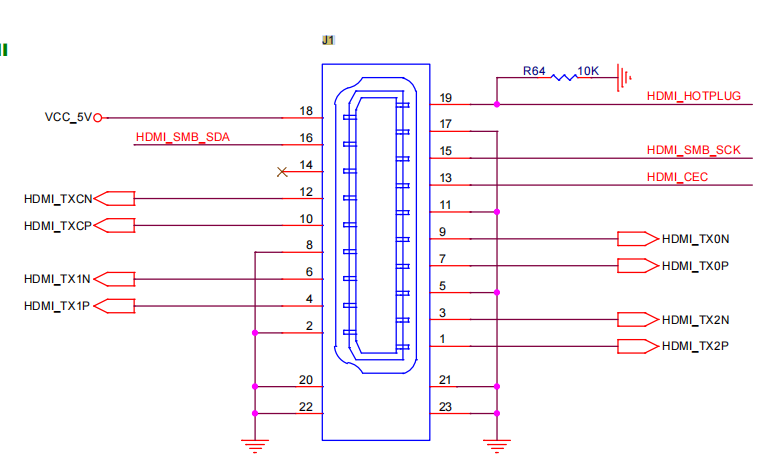

HDMI Loop-out

Reset Switch
