A1 MiniDual EthernetlinuxBoard

Dev Boards & Modules · Ingenic A1

Project: Board Introduction | page_id: 1090

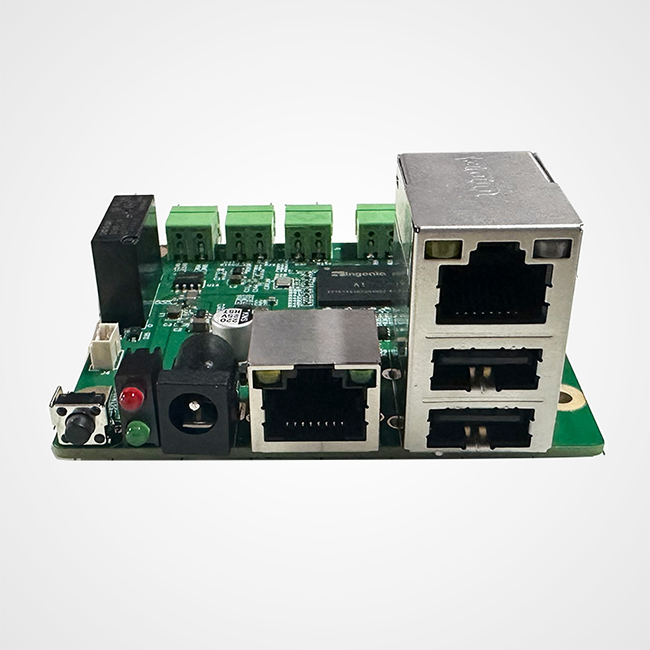

Dual Ethernet Port Linux Board
Model	XSWDEV-30M13DCH
Network Video Input Protocol	HTTP/RTSP/RTMP/RTP/UDP-TS
Network Video Output Protocol	HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/ONVIF/GB28181
Input Video Encoding Format	H.264/H.265
CPU	Dual-core 1.2G, MIPS architecture
Memory	256MB
Network Interface	10/100Mbit X2
Input Audio Encoding Format	AAC/G.711/MP3/Mp2/OPUS
Output Video Encoding Format	H.264/H.265
Output Audio Encoding Format	AAC
Recording	Not supported
Remote Upgrade	Supported
Remote Management	Supports remote modification of device parameters and remote playback of device recordings

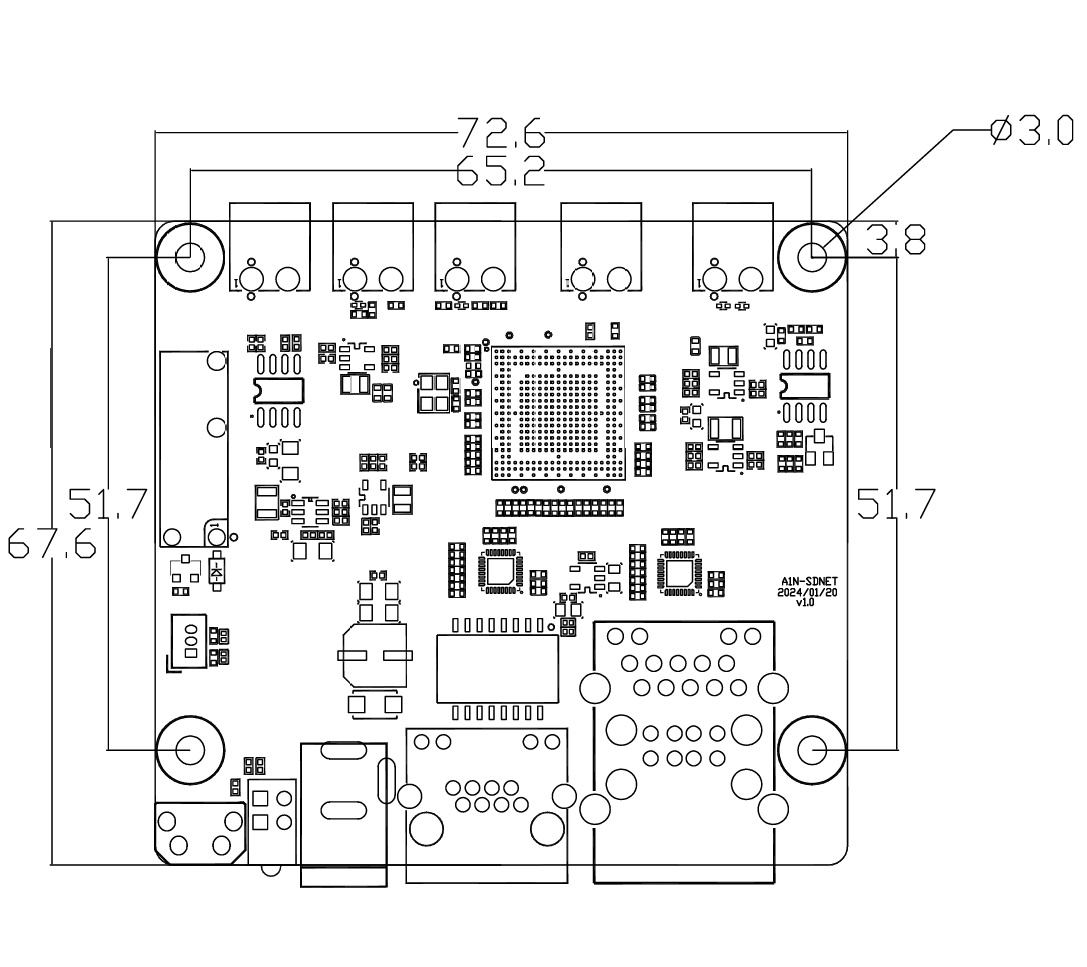

Dimensions	72x67x45mm
Weight	501g

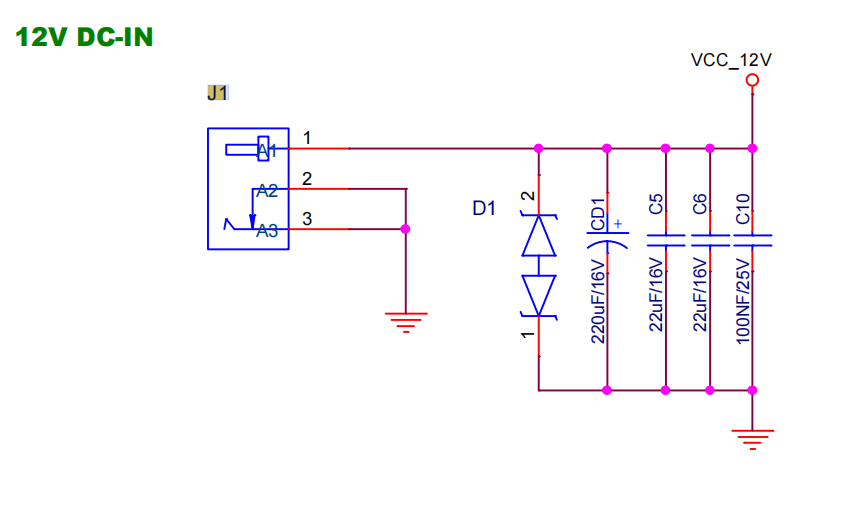

Power Supply	DC-12V
Operating Temperature	0～70℃

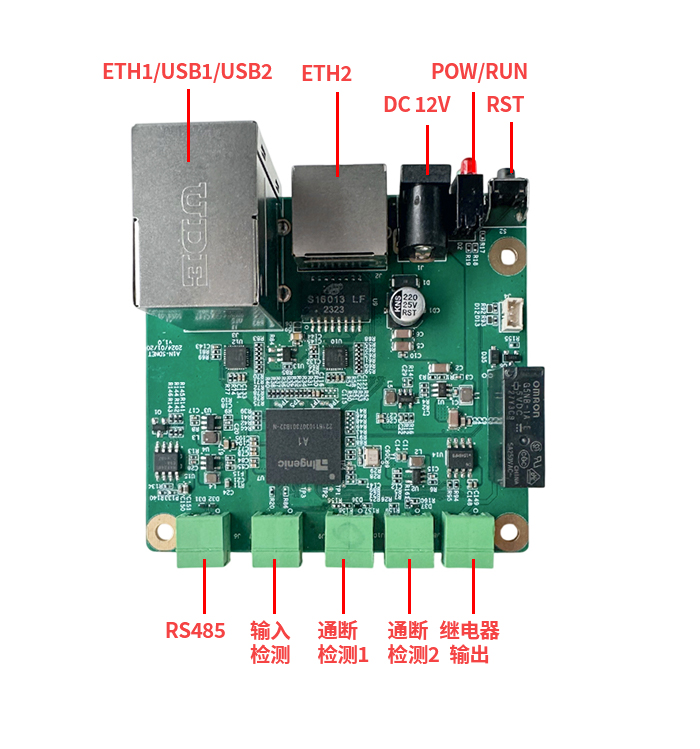

Board Description

CPU Parameters

Ingenic A1 uses a 1.4GHz dual-core CPU and supports core capabilities such as 4K@90fps decoding, native 4K display, dual Gigabit Ethernet ports and dual SATA. In response to the continuous upgrading of AI in the security industry,
A1 has built-in AI computing power of 1.4T@int8/5.6@int4, meeting the requirements of simultaneous video structuring, detection and recognition of multiple video sources. In addition, A1 integrates key peripherals such as DDR, RTC and Audio, greatly optimizing the product deployment cost.
Using the integration advantages of Magik, with the computing power of 1.4T@int8/5.6@int4, backend functions such as centralized recognition, secondary detection and video element retrieval can be implemented. Combined with the intelligent capabilities of the Ingenic security front-end T series chips, a distributed AI security system with front-end and back-end coordination can be easily built.

Core Performance Parameters

‌Processor Architecture‌: dual-core CPU, clock speed 1.4GHz

‌Video Processing Capability‌:
Supports 4K@90fps HD decoding
Native 4K display output
Maximum resolution/encoding frame rate: 4096*4096

‌AI Computing Power‌:
1.4T@int8 / 5.6T@int4
2. Supports simultaneous structured analysis and recognition of multiple video sources

‌Storage and Peripherals‌:
Integrates key peripherals such as DDR, RTC and Audio, optimizing system cost
Supports dual SATA interfaces and dual Gigabit Ethernet ports
Supports BT-UHD ultra HD Bluetooth codec technology, with a transmission bandwidth of up to 6.5Mbps

Application Scenarios

‌Security Backend Equipment‌: designed specifically for NVR (network video recorder, video security system), suitable for high-performance scenarios requiring multi-channel video analysis
‌Intelligent Requirements‌: meets the computing power requirements of the security industry for real-time video detection and recognition

Ingenic A1 will provide chips of different grades according to different application positioning to meet the different development needs of low-, mid- and high-end NVR products. In addition to supporting traditional requirements such as ultra-large capacity disk slots and ultra HD decoding for video walls, the A1 chip also supports mainstream industry categories such as WiFi kits and POE. In addition, combined with Ingenic's advantages in front-end intelligence and low power consumption, A1 also covers emerging forms such as low-power base stations, NAS and smart light screens.
In addition, with the powerful performance of this series of Ingenic chips in CPU, VPU, ISP, AI engine, etc., as well as rich peripherals and interfaces, they have important application value in video processing, security monitoring, industrial control, IoT and other fields, and can meet the needs of different industries for high-performance, low-power chips.
