T40-NPV6188AEncoder Board
Project: Board Introduction | page_id: 1166
| T40-NPV6188A Encoding Board | |
|---|---|
| Board Function Type | XSTRIVE- |
| CPU | T40XP |
| Video Encoding | Supports H.265/H.264 encoding |
| Max Resolution | 1280*720@30fps X4 |
| Video Input | AHD video input (1280*720@30fps) |
| Audio Input | mic-in mono |
| Audio Output | 1 channel |
| Storage | None |
| Network | 100M |
| Operating Temperature | 0 to 70°C |
| Service Life | Continuous operation life of more than 2 years |
| DDR | 256MB |
| SPI NOR | 32M |
| EMMC | - |
| Number of Network Ports | 1 |
| Number of Sensors | - |
| Computing Power | 8TOPS int2, can be used for human shape recognition, license plate recognition, etc. |

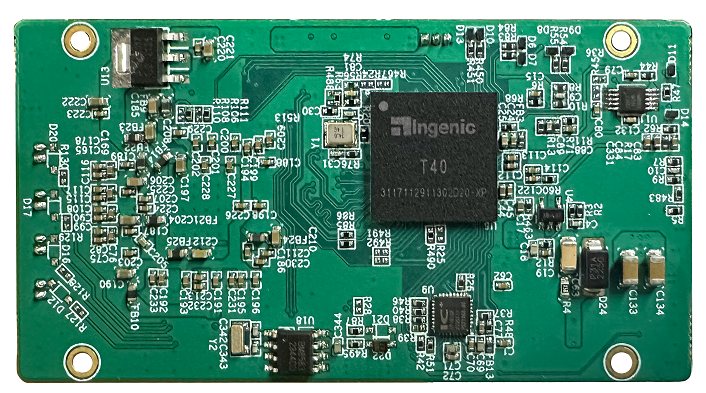

Product Images
Board Size: 71*40mm
Chip Specifications
Description
T40 is a smart video application processor targeting for video devices like mobile camera, security survey, video talking, video analysis and so on. This SoC introduces a kind of innovative architecture to fulfill both high performance computing and high-quality image and video encoding requirements addressed by video devices. T40 provides high-speed CPU computing power, excellent image signal process, fluent 3840x2160 resolution video recording
Features
• 1.2GHz dual core XBurst2 CPU with 128KB L2 cache; 600MHz RISC-V coprocessor
• SIMD512 ISA
• Built-in neural network accelerator, maximum 8T OPS, support int16/int8/int4/int2 convolution width
• Magik AI algorithm develop platform available
• Built-in algorithm post/preprocessing acceleration unit
• Tizano-III ISP engine, maximum 3840x2160 processing resolution, dual sensor input, 3A/3D/WDR/rgb-ir, LDC, 90 and 270 rotations
• Maximum 4K (3840x2160)@20fps H.265/H.264/JPEG encoder, VBR/CBR/Fix QP rate control
• DVP/MIPI-CSI/BT1120/BT656 Sensor input interfaces, stereo vision, max 3 channels input
• Maximum 2GB memory size, DDR2/DDR3/DDR3L
• Rich interfaces, I2C/UART/I2S/SPI/USB/SDIO/DMIC/RMII/PWM/SADC
• support AES/RSA/SHA/TRANG support secure boot
• Built-in Audio Codec, stereo AMIC input and mono output
• Professional AI algorithms available: person detection, facial recognition, 3D vision …
• Support TFT/SLCD, MIPI-DSI-4Lane interfaces, Maximum 1080P resolution display panel
• Mature solution and reference design ready for: IPCamera, home camera, web camera …
• 1.2W power consumption at 4K+AI application
• BGA package
Applications
• Consumer/home/IoT camera – 4K IPcamera with AI function, smart phone watch
• Surveillance camera – professional security cameras, IPC&NVR
• AIoT – facial recognition, service robot, machine learning box, edge AI applications
• Web camera – Usb camera
Interface Circuits

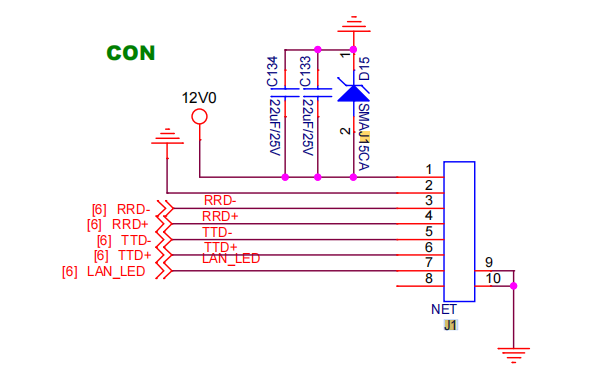

12V Power + Network

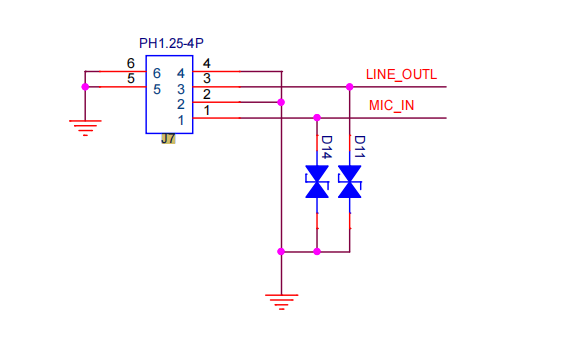

Microphone + Speaker

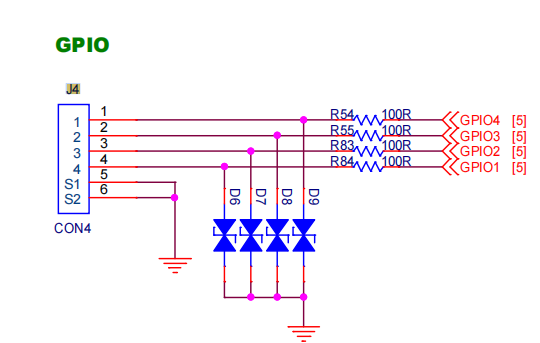

GPIO Port

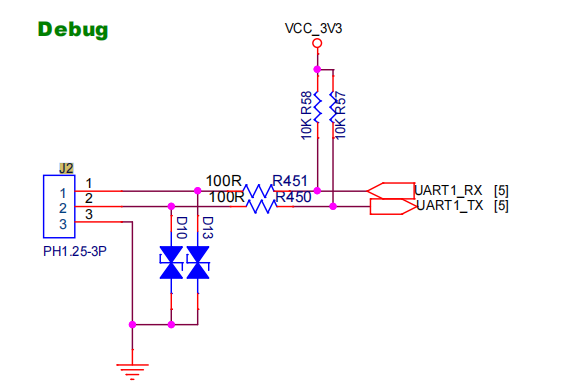

Debug Port

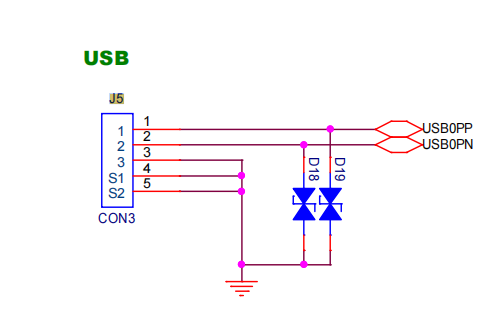

USB Interface

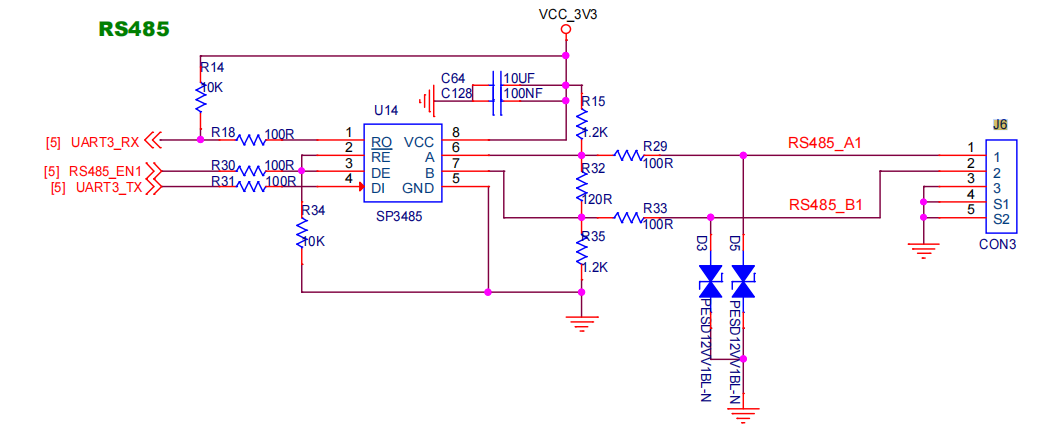

RS485 Interface

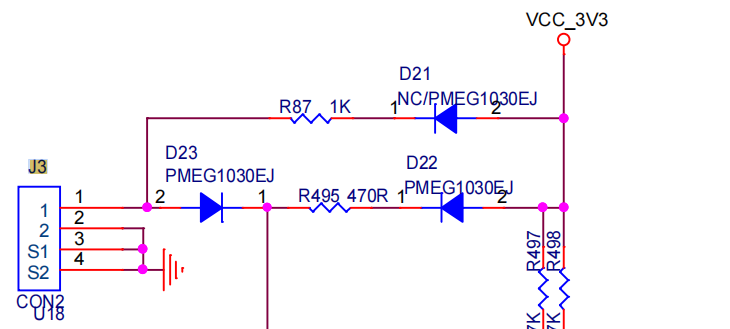

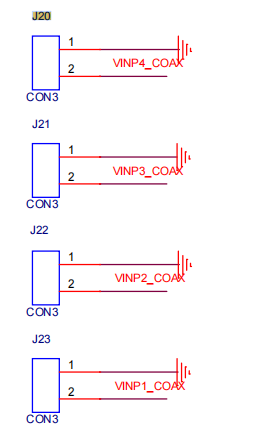

VINP Interface
Lithium Battery Interface
