T41-YXIPC+T41-YXCOMModule
Project: Board Introduction | page_id: 1158
| T41-YXIPC+T41-YXCOM for SC830AI Sersor | ||
|---|---|---|
| 8MP Camera | ||
| Type | Name | Specifications |
| Name and Model | Main Chip | T41 XQ |
| Sensor | SC830AI | |
| Capture Parameters | Lens | |
| Sensor Type | 8MP pixel sensor | |
| Minimum Illumination | 0.01lux/F1.2(color) 0.01lux/F1.2(black) | |
| Shutter | 1/3s to 1/100,000s | |
| Day/Night Switching | Supports soft photosensitive | |
| Video Parameters | Video Compression Standard | H.264/H.265 |
| Compression Output Bitrate | 128Kbps~8000Kbps | |
| Number of Streams | Dual streams | |
| Max Image Size | 3840*2160 | |
| Max Frame Rate | 25FPS | |
| Image Settings | Brightness, contrast, saturation, exposure, vertical flip, horizontal mirror | |
| Audio Parameters | Audio Output | Supported |
| Audio Input | Supported | |
| Network | Access Protocol | HTTP-FLV/RTSP/WEBRTC/RTMP/WS-FLV/WS-RAW/ONVIF GB/T28181 |
| Network Protocol | Supports TCP/IP, DHCP, DNS, NTP, RTSP, RTMP live streaming | |
| Wired Network | 1 x RJ45 10M/100M Ethernet port | |
| Functions | Local Client | Supported |
| Network Access | Supported | |
| Local Upgrade | Supported | |
| OSD Overlay | Supported, 2 or more custom areas, supports time display | |
| Storage | Storage Function | Supports SD card storage up to 512GB |
| Recording Download | Supports local and remote recording download | |
| Recording Playback | Supports remote recording playback | |
| Others | Operating Temperature and Humidity | -10℃~50℃, humidity below 95% |
| Power Consumption | 1.2W-2W | |
| T41-YXIPC+T41-YXCOM for IMX662 Sersor | ||
| 2MP Camera | ||
| Type | Name | Specifications |
| Name and Model | Main Chip | T41 XQ |
| Sensor | IMX662 | |
| Capture Parameters | Lens | |
| Sensor Type | 2MP pixel sensor | |
| Minimum Illumination | 0.01lux/F1.2(color) 0.01lux/F1.2(black) | |
| Shutter | 1/3s to 1/100,000s | |
| Day/Night Switching | Supports soft photosensitive | |
| Video Parameters | Video Compression Standard | H.264/H.265 |
| Compression Output Bitrate | 128Kbps~8000Kbps | |
| Number of Streams | Dual streams | |
| Max Image Size | 1920*1080 | |
| Max Frame Rate | 25FPS | |
| Image Settings | Brightness, contrast, saturation, exposure, vertical flip, horizontal mirror | |
| Audio Parameters | Audio Output | Supported |
| Audio Input | Supported | |
| Network | Access Protocol | HTTP-FLV/RTSP/WEBRTC/RTMP/WS-FLV/WS-RAW/ONVIF GB/T28181 |
| Network Protocol | Supports TCP/IP, DHCP, DNS, NTP, RTSP, RTMP live streaming | |
| Wired Network | 1 x RJ45 10M/100M Ethernet port | |
| Functions | Local Client | Supported |
| Network Access | Supported | |
| Local Upgrade | Supported | |
| OSD Overlay | Supported, 2 or more custom areas, supports time display | |
| Storage | Storage Function | Supports SD card storage up to 512GB |
| Recording Download | Supports local and remote recording download | |
| Recording Playback | Supports remote recording playback | |
| Others | Operating Temperature and Humidity | -10℃~50℃, humidity below 95% |
| Power Consumption | 1.2W-2W |
Product Interface Images

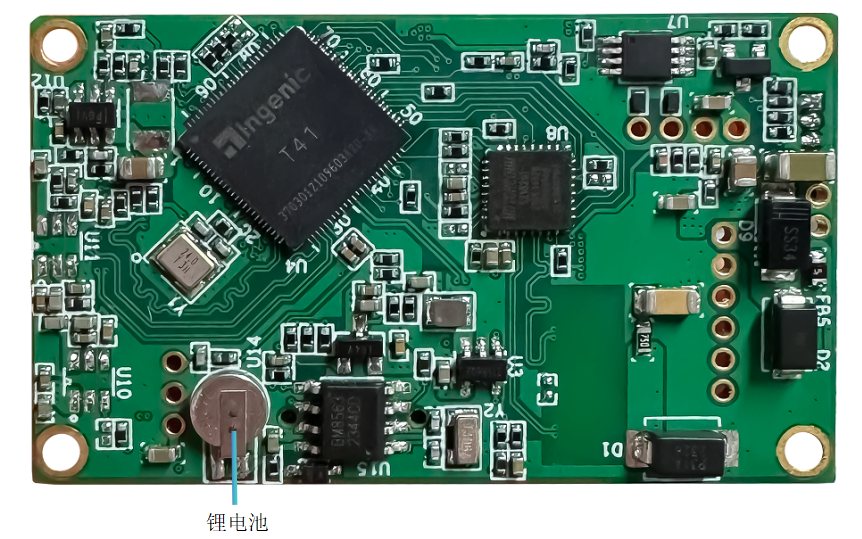

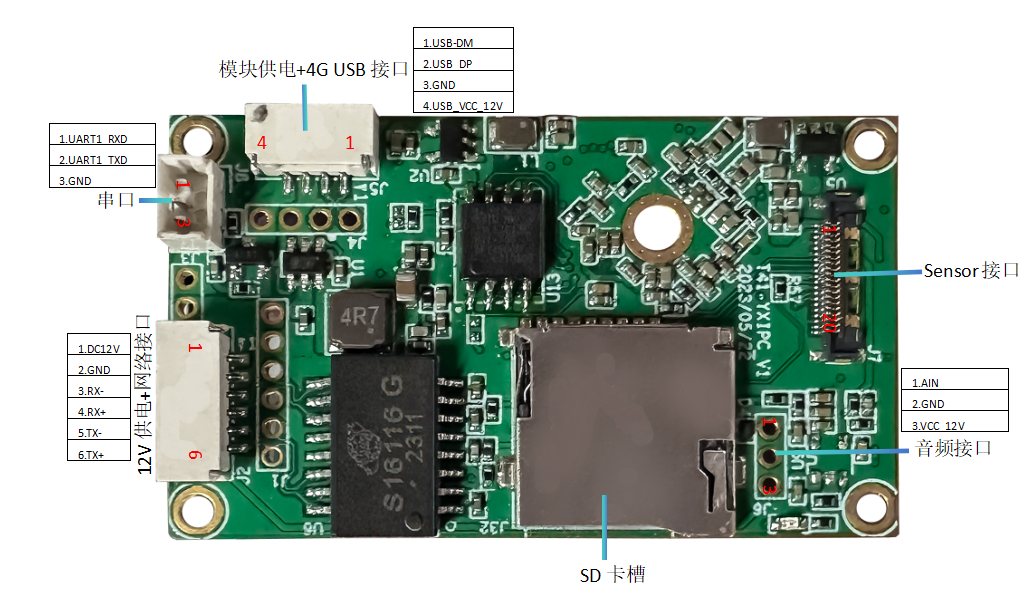

T41-YXIPC_V1 Board Size: 50*30mm

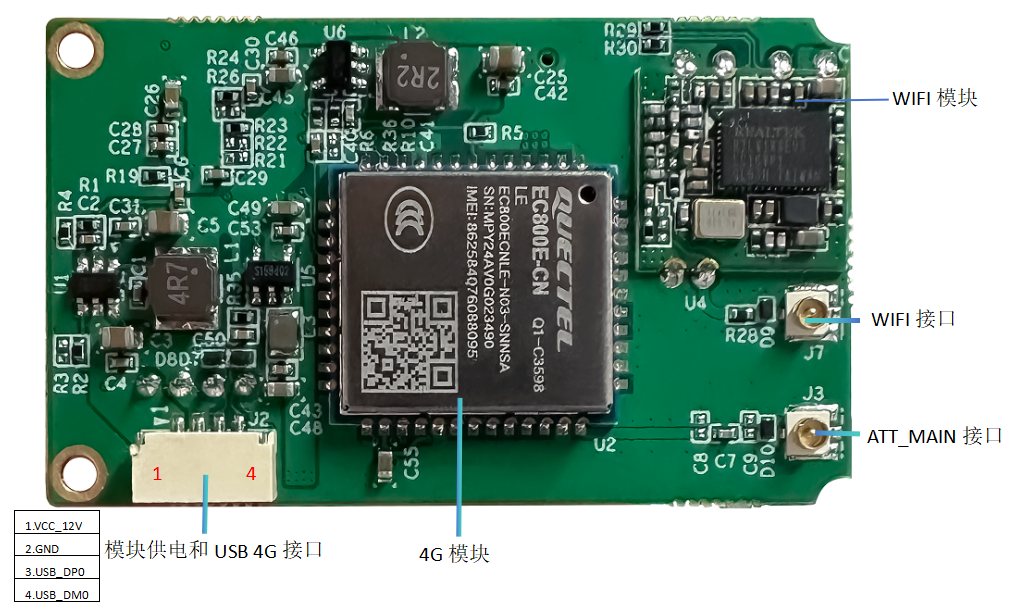

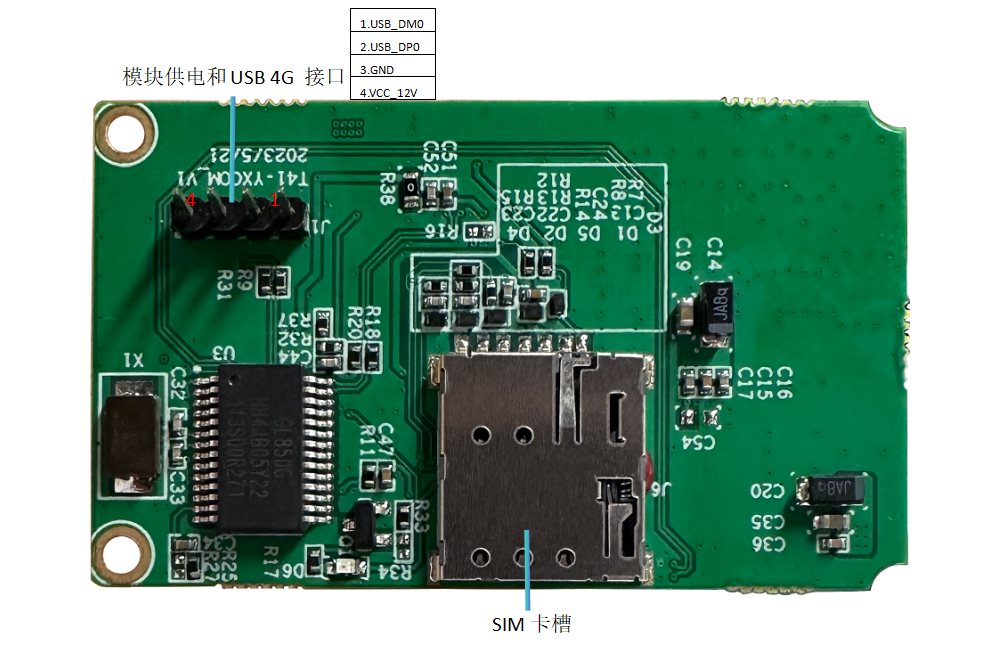

T41-YXCOM_V1 Board Size: 50*30mm
Chip Specifications
Features
• 1.0~1.4GHz XBurst2 dual-core CPU
• 4K(2160P) H.264/H.265/JPEG video encoding
• 1.2T@int8/4.8T@int4 AIE(NPU) hardware computing power
• Latest professional ISP with multi-level NR (2DNR/3DNR) and sharpening
• Integrated RTC, POR, DMIC and audio codec
• Magik 2.0 one-stop algorithm development platform
Applications
• Home camera
• AI camera
• Surveillance camera
• Video doorbell
• AI network camera
• Video conferencing device
• Dash camera
• In-cabin DMS AIoT device
• Roomba robot
Interface Circuits
T41-YXIPC Interface Circuits

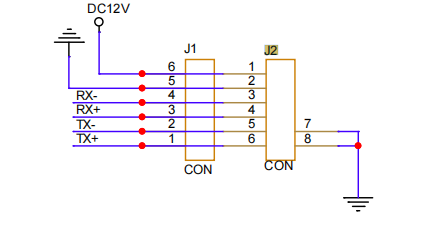

12V Power + Network

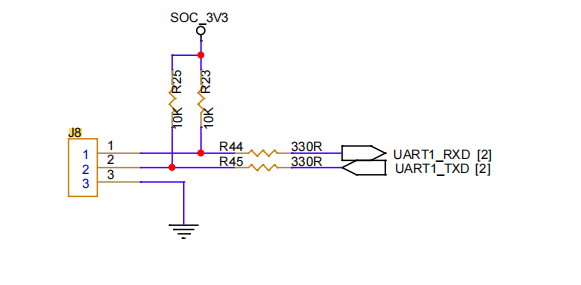

Debug Serial Port

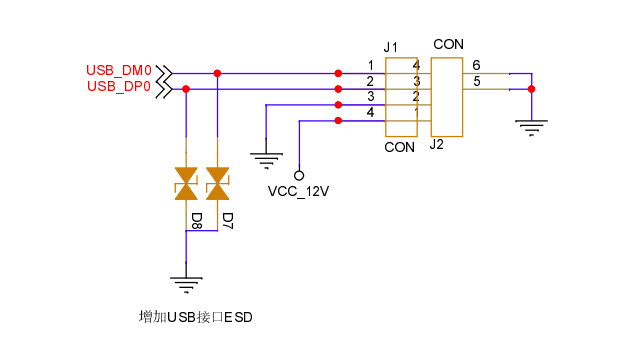

4G Module Power Supply + USB Interface

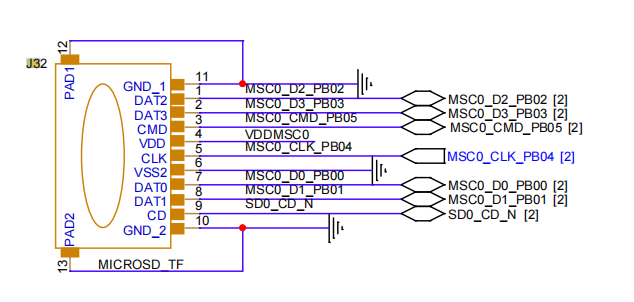

SD Card

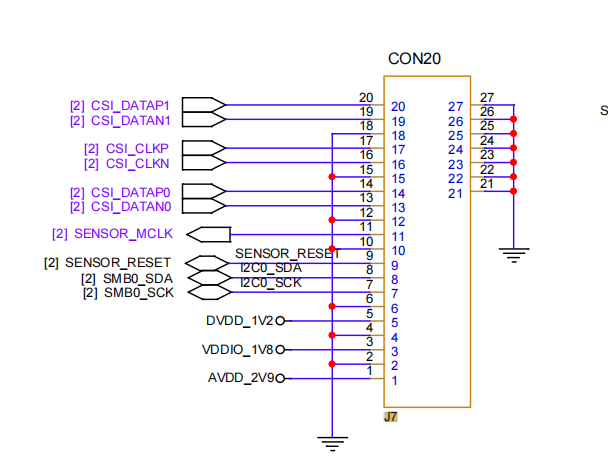

Sensor Interface
Audio Interface

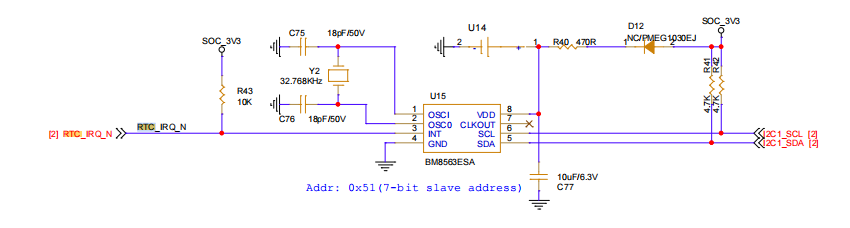

RTC Circuit
T41-YXCOM Interface Circuits

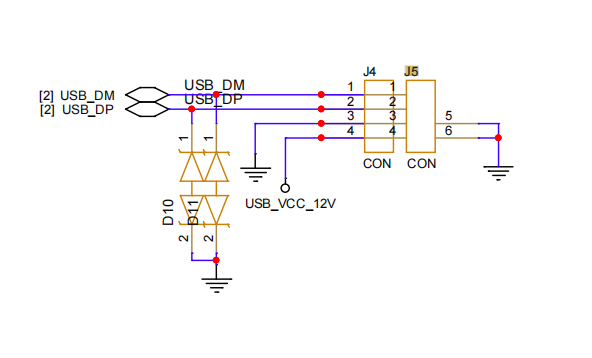

4G Module Power Supply + USB Interface

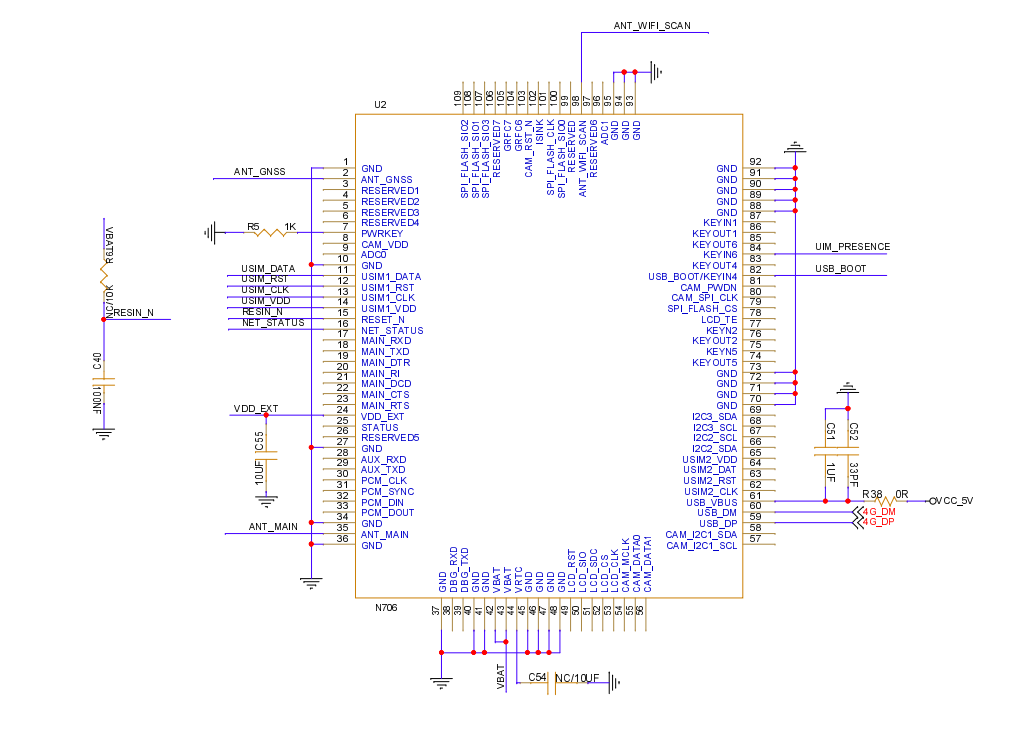

4G Module Circuit
4G Antenna

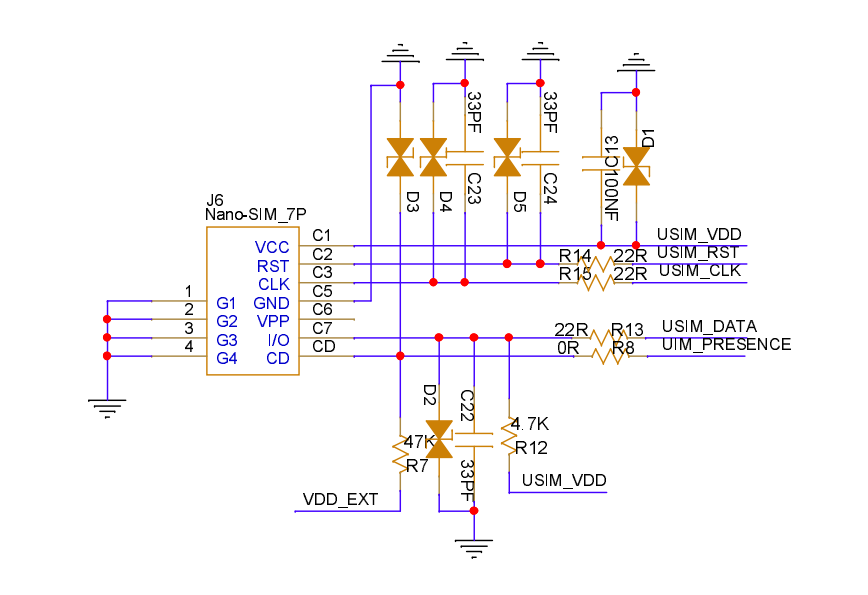

SIM Card

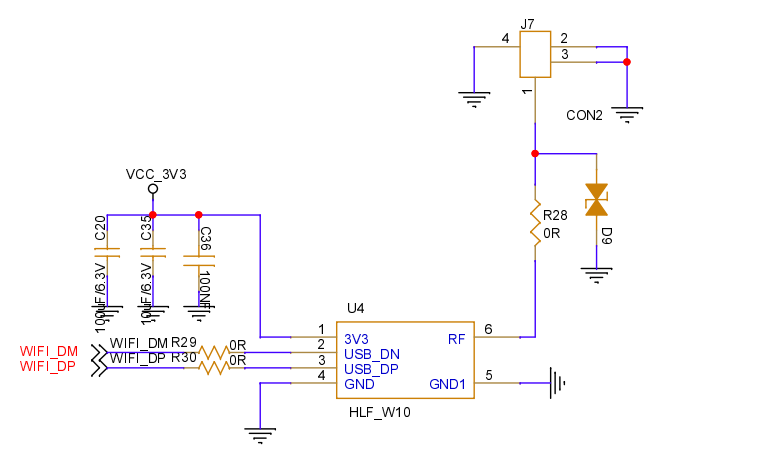

WiFi Module + WiFi Antenna
FAQ
| Question | Answer |
|---|---|
| 1. Is it Android or Linux? | Linux |
| 2. | |
| 3. |
