IngenicT40Dual-sensor Development Board (New Board）

Project: Development Board Shipping Materials | page_id: 1080

2、Download T40 SDK & Virtual Machine

Baidu Netdisk shared file: Ubuntu 64_t40_dev
Link: https://pan.baidu.com/s/1Kg56VKly4HqrUJnaJDEZCQ?pwd=xstr
Extraction code: xstr

Virtual machine password: 123456
Sample code path: /home/xstrive/hisi/ISVP-T40-1.2.0-20220609/software/sdk/Ingenic-SDK-T40-1.2.0-20220609/sdk/samples/libimp-samples

Magik material download:
Link: https://pan.baidu.com/s/1iV63E6RGPiLBZrp0bsIcTQ Extraction code: xstr
Link: https://pan.baidu.com/s/1cTfBdSTBvxl3r50NdVIerA Extraction code: xstr
Separate SDK download address
File shared via Netdisk: ISVP-T40-1.3.1-20240803.7z
Link: https://pan.baidu.com/s/1qxH3j0oS0vRnQS9vNgV8RA?pwd=xstr Extraction code: xstr
Separate toolchain download
Link: https://pan.baidu.com/s/1KwNr_pT2mwc3Ye9t_DK3Sw?pwd=xstr Extraction code: xstr

Notes:

For the SDK installation and usage document, please see the path: \T40\SDK\ISVP-T40-1.1.1-20220120\software\doc

BSP development guide materials: \T40\SDK\ISVP-T40-1.1.1-20220120\software\doc\BSP

IMP development guide materials: T40\SDK\ISVP-T40-1.1.1-20220120\software\doc\IMP

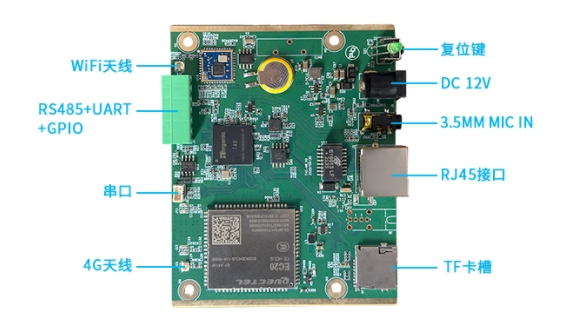

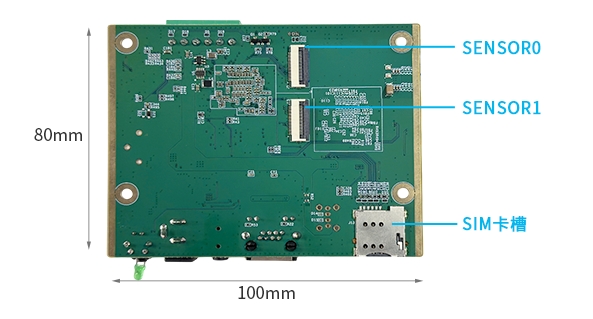

4、Hardware Interface Diagram

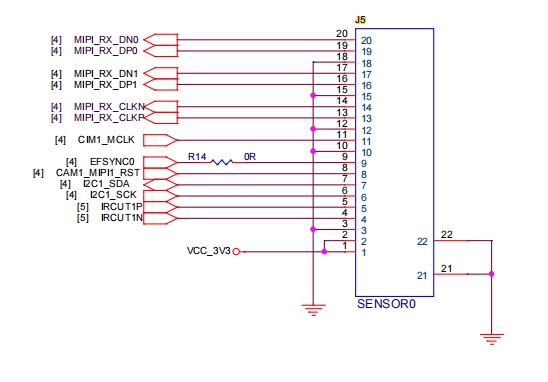

- ###(1) sensor0

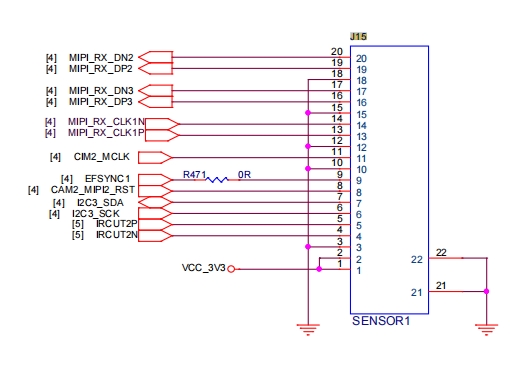

• (2) sensor1

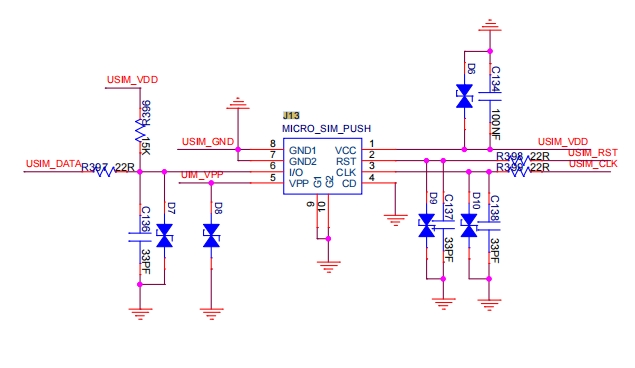

• (3) SIM card slot




• (4) WiFi antenna

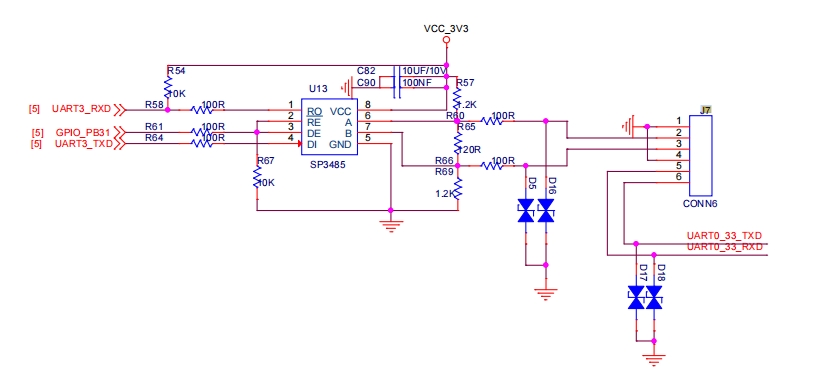

• (5) rs485+uart+gpio

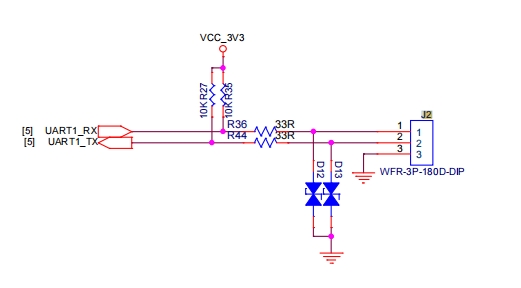

• (6) Serial port

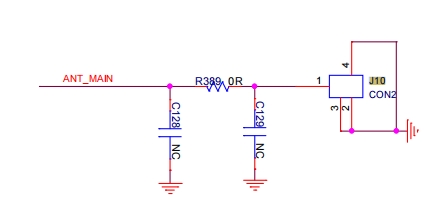

• (7) 4G antenna

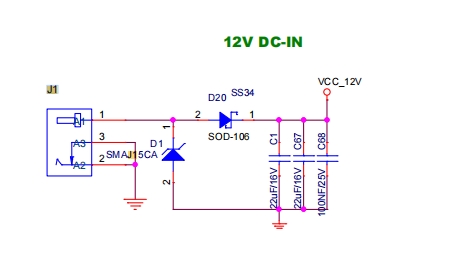

• (8) DC 12V

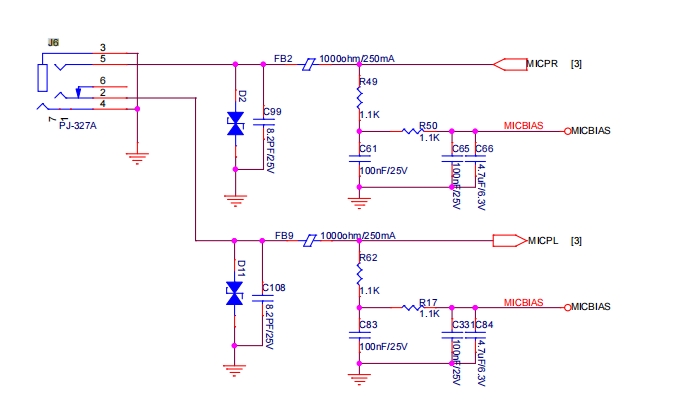

• (9) 3.5mm MIC IN

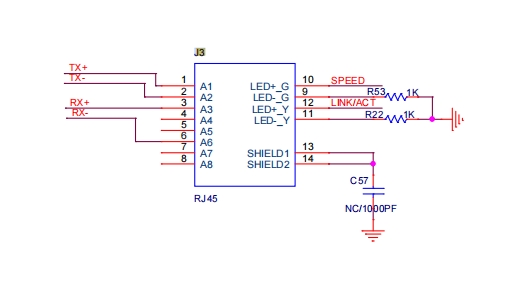

• (10) RJ45 interface

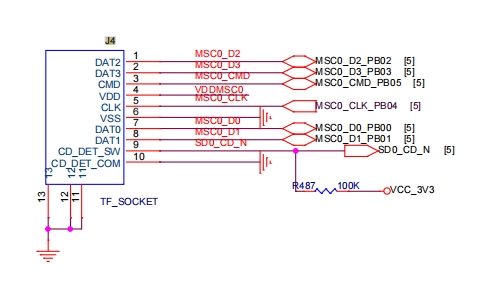

• (11) TF card slot



• (12) Reset button



5、Refer to the T40 Development Guide.pdf in the SDK [T40 Development Guide 20220110.pdf]

T40 Development Guide.pdf

6 Modify the sample-common.h header file in the SDK as shown below

（1）If the sensor is GC2053, you can make the following modifications by comparison: (the header file in the virtual machine of this document has already been modified)

Sample file: docs.html

（2）If the sensor is GC4653, you can make the following modifications by comparison:

Sample file: docs.html

（3）If it is an AHD camera, you can make the following modifications by comparison:

Sample file: docs.html

7、Image Output Debugging

t40_gc2053 Image Output Debugging.pdf

8. Image Output Test Based on the SDK

T40xp Development Board Image Output Test Based on SDK_v0.3.pdf
Modified sample-common.h header file in the example: docs.html

9、4G Test

9.1 Interface Diagram

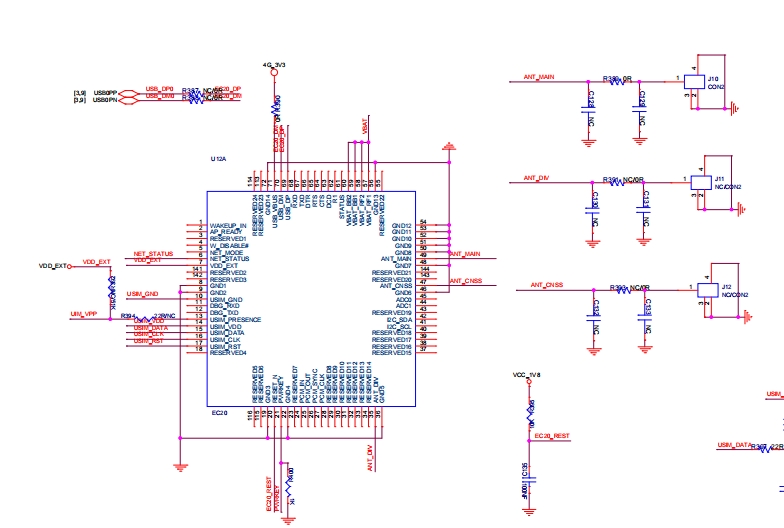

(1) EC20

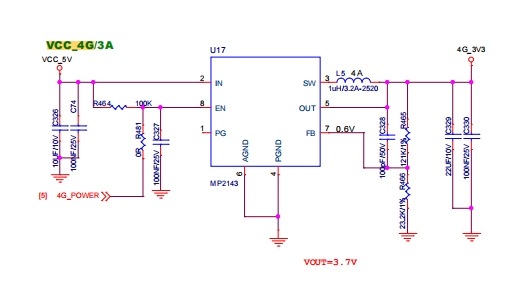

（2）VCC_4G

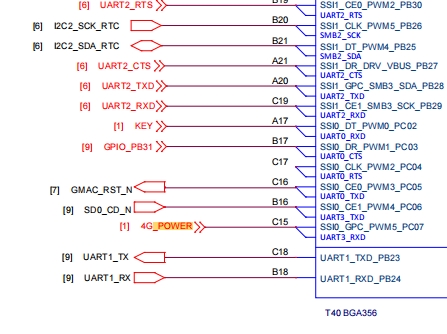

(3) 4G_power (pulled up by hardware by default)

9.2 4G Test Document

T40_DS Development Board 4G Test_v0.1(1).pdf

10、WiFi Test

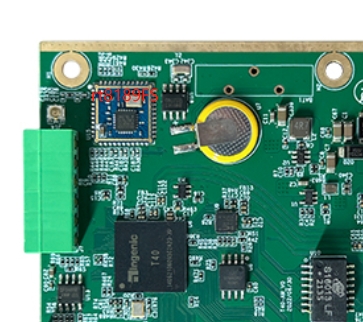

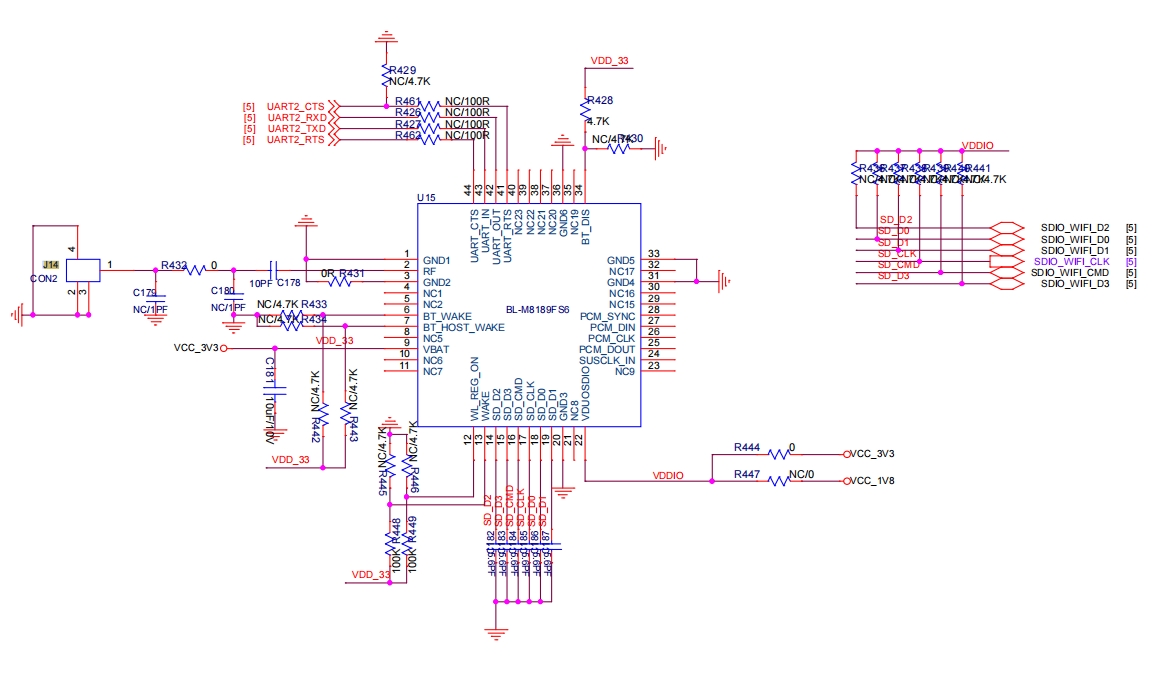

10.1 WiFi Module Interface Diagram

10.1 WiFi Porting

（1）WiFi driver package【rtl8189FS、rtl8821CS】

Link: https://pan.baidu.com/s/1BJuxPaC-cvYOQ2juKxxQUw  Extraction code: xstr

（2）WiFi module type

（3）WiFi related parameter modification

File: */kernel-4.4.94/arch/mips/boot/dts/ingenic/shark.dts

10.2 WiFi Test Document

T40_DS Development Board WiFi Test_v03.pdf

carrier server source code

Link: https://pan.baidu.com/s/1SZyEeu2UHpgRRxxzRuGEig
Extraction code: xstr
