IngenicT41XQBoard Resources(t40sc830)

Board Shipping Resources · Ingenic Resources

Project: Development Board Shipping Materials | page_id: 1031

SDK download
File shared via Netdisk: Ingenic-SDK-T41-1.2.3-20240308-zh.7z
Link: https://pan.baidu.com/s/1Ium4KFkbGbWXK9u6fvc0EA?pwd=1122 Extraction code: 1122

old version
File shared via Baidu Netdisk: ISVP-T41-1.1.1-20221221.7z
Link: https://pan.baidu.com/s/1TAVXHclKzRByMZIi1M1T8w?pwd=xstr
Extraction code: xstr

T41 toolchain
File shared via Netdisk: mips-gcc720-glibc229-r5.1.7.tar.bz
Link: https://pan.baidu.com/s/1eY46rCA8gd2NDCFNpof4lA?pwd=1122 Extraction code: 1122

Official schematic:
T41 HDK_20221102.rar
SC830 sensor header file
#define FIRST_SNESOR_NAME "sc830ai"
#define FIRST_I2C_ADDR 0x30 //sensor i2c address
#define FIRST_I2C_ADAPTER_ID 0 //sensor controller number used (0/1/2/3)
#define FIRST_SENSOR_WIDTH 3840 //sensor width
#define FIRST_SENSOR_HEIGHT 2160 //sensor height
#define FIRST_RST_GPIO GPIO_PA(18) //sensor reset gpio
#define FIRST_PWDN_GPIO -1//GPIO_PA(19) //sensor pwdn gpio
#define FIRST_POWER_GPIO -1 //sensor power gpio
#define FIRST_SENSOR_ID 0 //sensor index
#define FIRST_VIDEO_INTERFACE IMPISP_SENSOR_VI_MIPI_CSI0 //sensor interface type (dvp/csi0/csi1)
#define FIRST_MCLK IMPISP_SENSOR_MCLK0 //sensor clk source (mclk0/mclk1/mclk2)
#define FIRST_DEFAULT_BOOT 0 //sensor default mode(0/1/2/3/4)

#define CHN0_EN                 1
#define CHN1_EN                 0
#define CHN2_EN                 0

/* Crop_en Choose */
#define FIRST_CROP_EN                   0

#define FIRST_SENSOR_FRAME_RATE_NUM         3

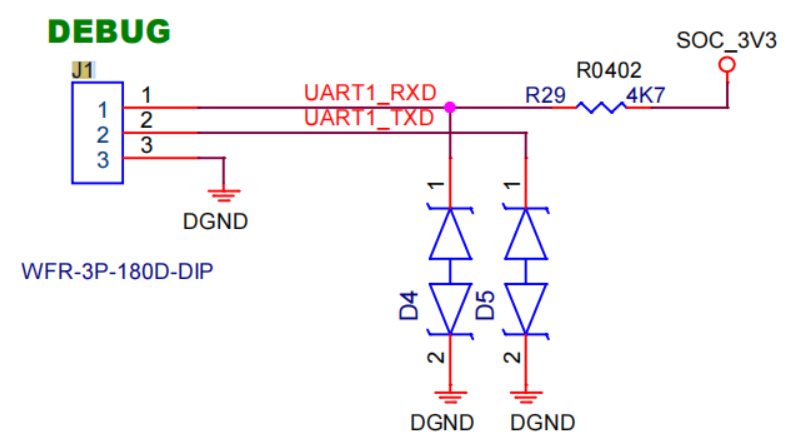

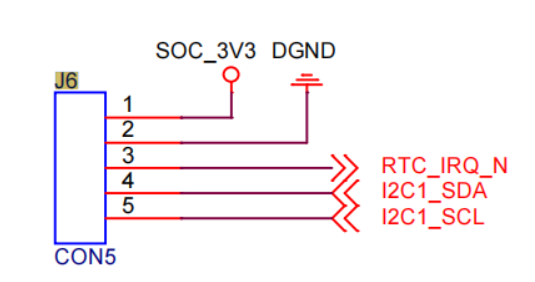

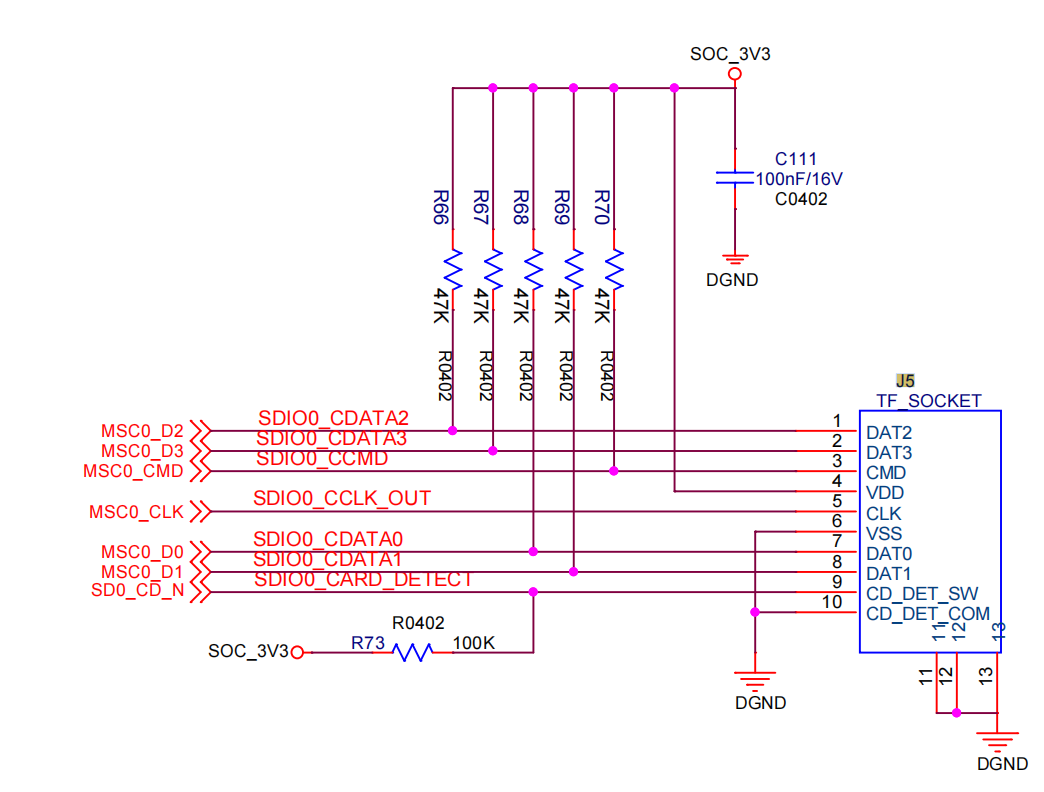

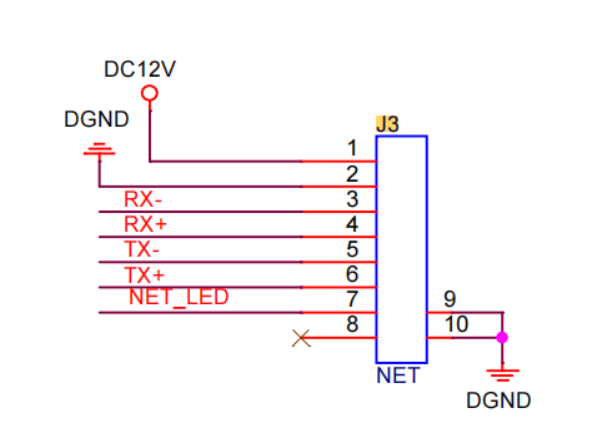

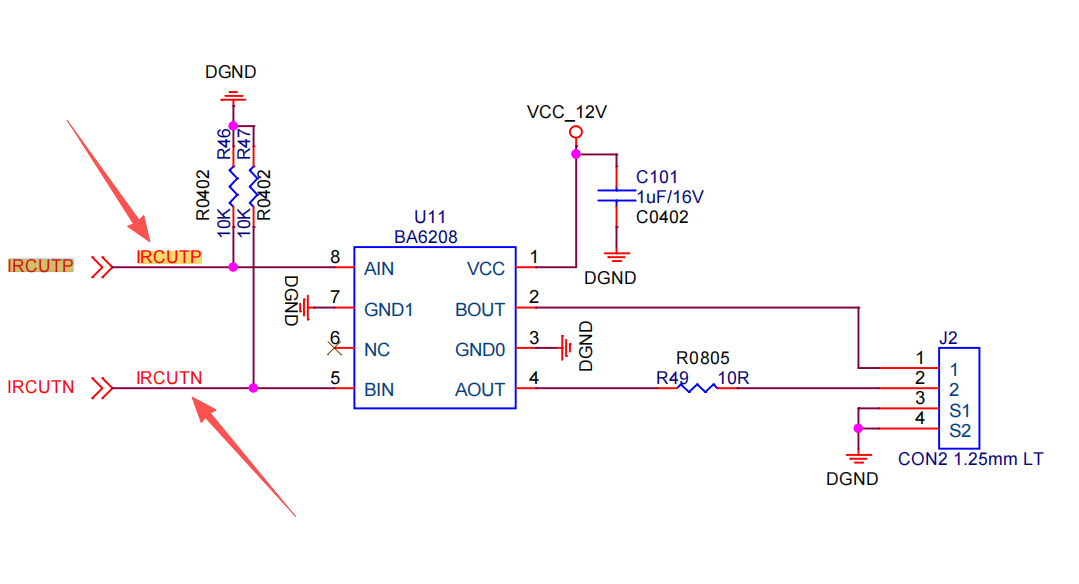

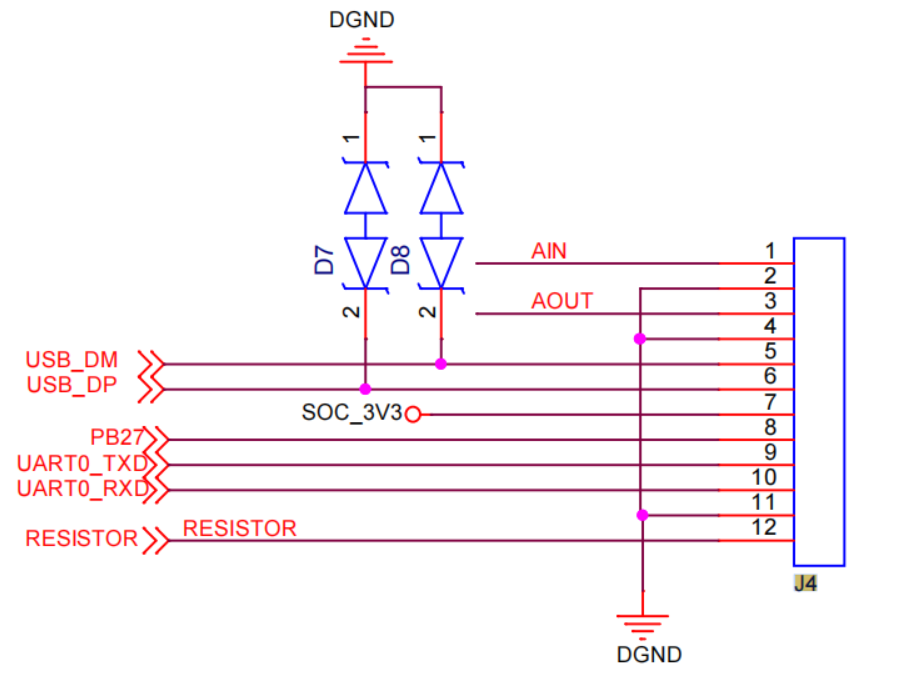

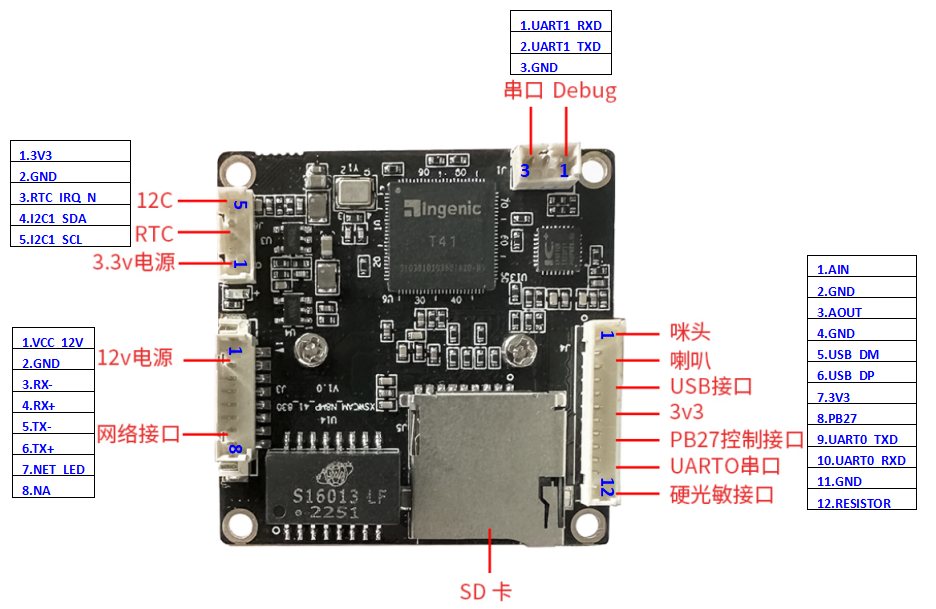

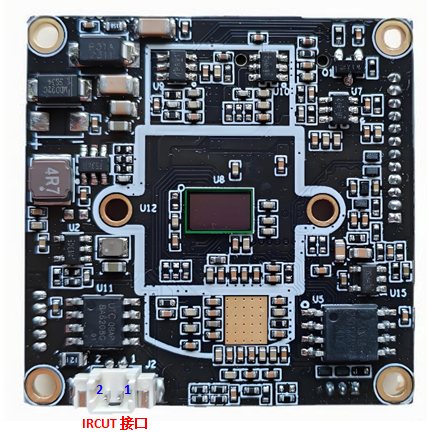

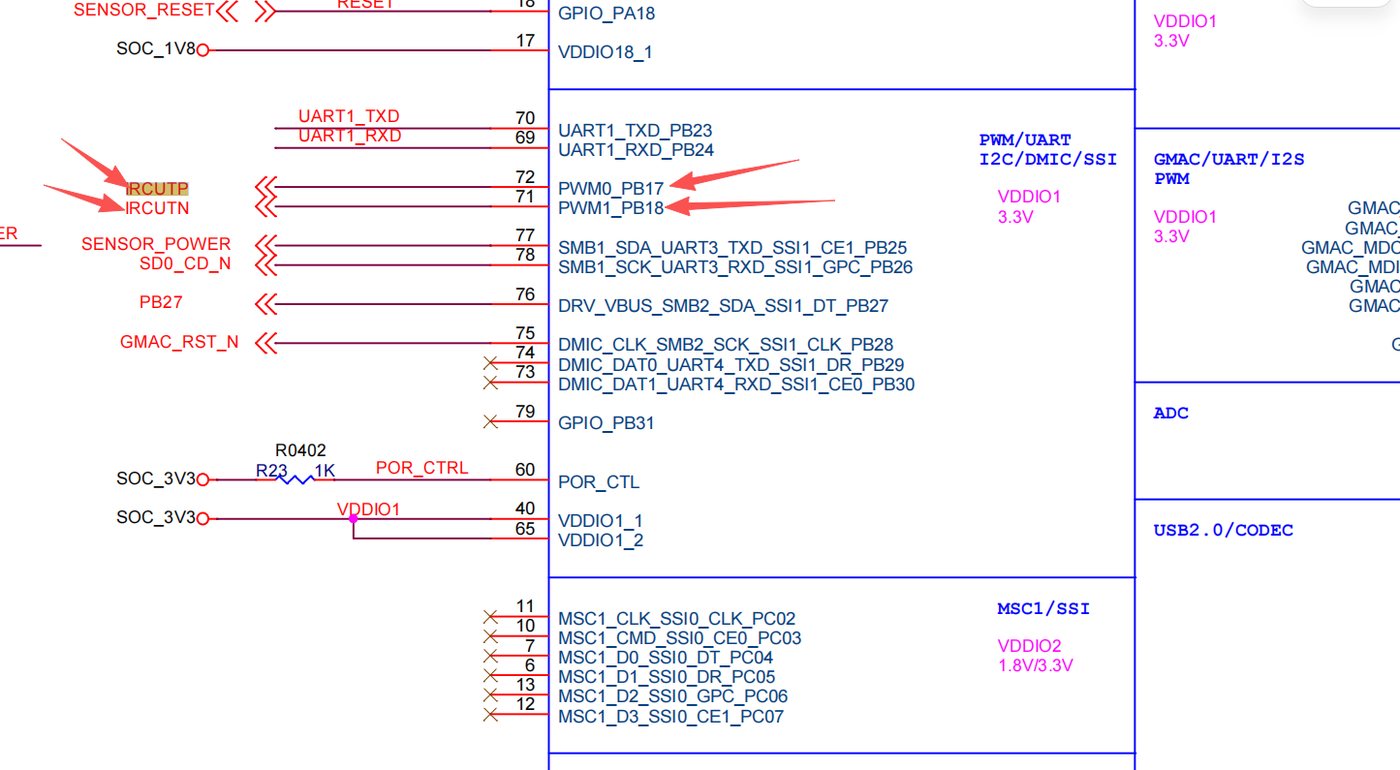

Interface diagram:
