1080Pwith4GLicense Plate RecognitionModuleManual

Device User Guides · LPR Module Manual

Project: Device User Guide | page_id: 852

[TOC]

This manual applies to our license plate recognition modules and license plate recognition camera devices

１、Product Introduction

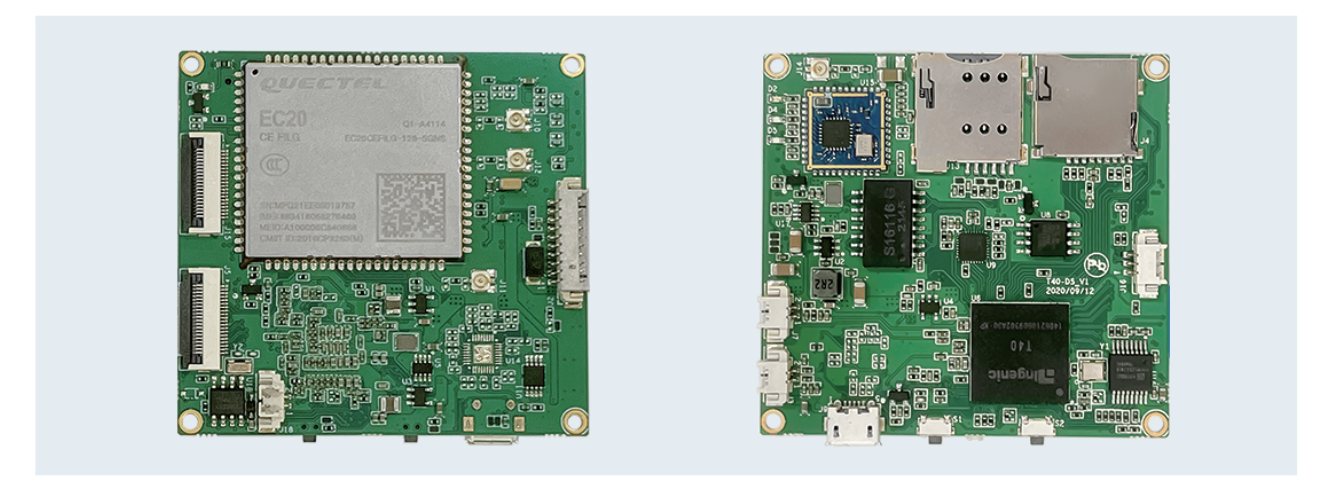

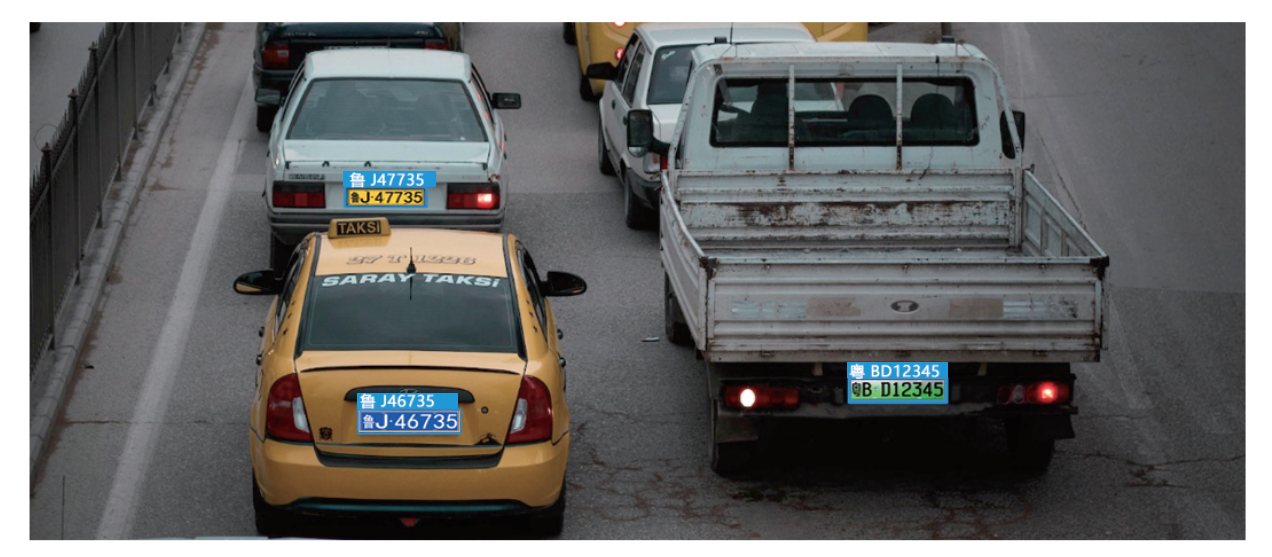

This device is a license plate recognition system developed and manufactured by our company. Its goal is to be a simple, efficient and accurate license plate recognition engine. Product forms include: license plate recognition module, license plate recognition device head, etc. As shown in Figure 1 below:

Figure 1

２、Product Features

Compared with other license plate recognition systems, our license plate recognition system has the following features:
A：Detection and recognition time：45ms(default input resolution：1920x1080(available resolution 2560x1440))
B：Vehicle license plate detection：recall rate：93%，accuracy：95%
C：High accuracy：vehicle type recognition accuracy：>91%
License plate color accuracy：>95%
License plate recognition rate：>99%
License plate color accuracy：>99%
D：Recognition result output：serial port/network output by default; for other output methods (http, mqtt, etc.) please contact our business team
E：Suitable for recognition in various complex environments

３、Application Scenarios

①Parking management 　 ②Residential community vehicle management　③Urban road monitoring　④Smart park vehicle management　　⑤Auto 4S store management　⑥Mobile handheld detection equipment　　⑦Police systems　　⑧Highway management

４、License Plate Types

Recognized license plate types：supports Chinese license plate recognition, including：ordinary blue license plates, ordinary yellow license plates, new energy license plates, etc., as shown in Figure 4 below

Figure 4

５、Main Product Functions

Ａ、License plate detection：detect the license plate position

Ｂ、License plate recognition：recognize the numbers of the license plate

Ｃ、License plate color recognition：recognize whether the license plate is blue, green, yellow, etc.

Ｄ、Vehicle detection：detect the vehicle position

Ｅ、Vehicle type recognition：recognize the type of vehicle, such as sedan, truck, van, school bus, etc.

Ｆ、Vehicle color recognition：recognize the body color of the vehicle, such as a black car or a white car

６、License Plate Module Specification Table

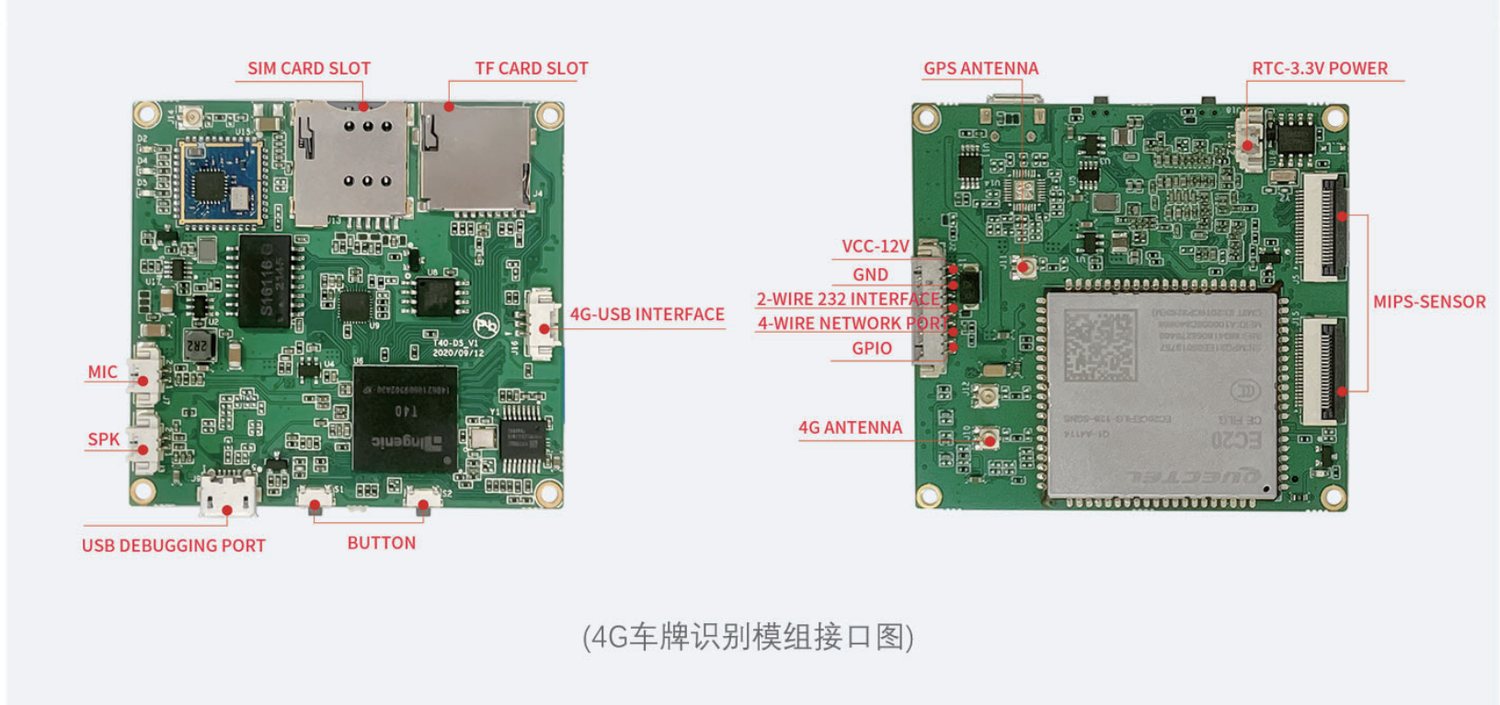

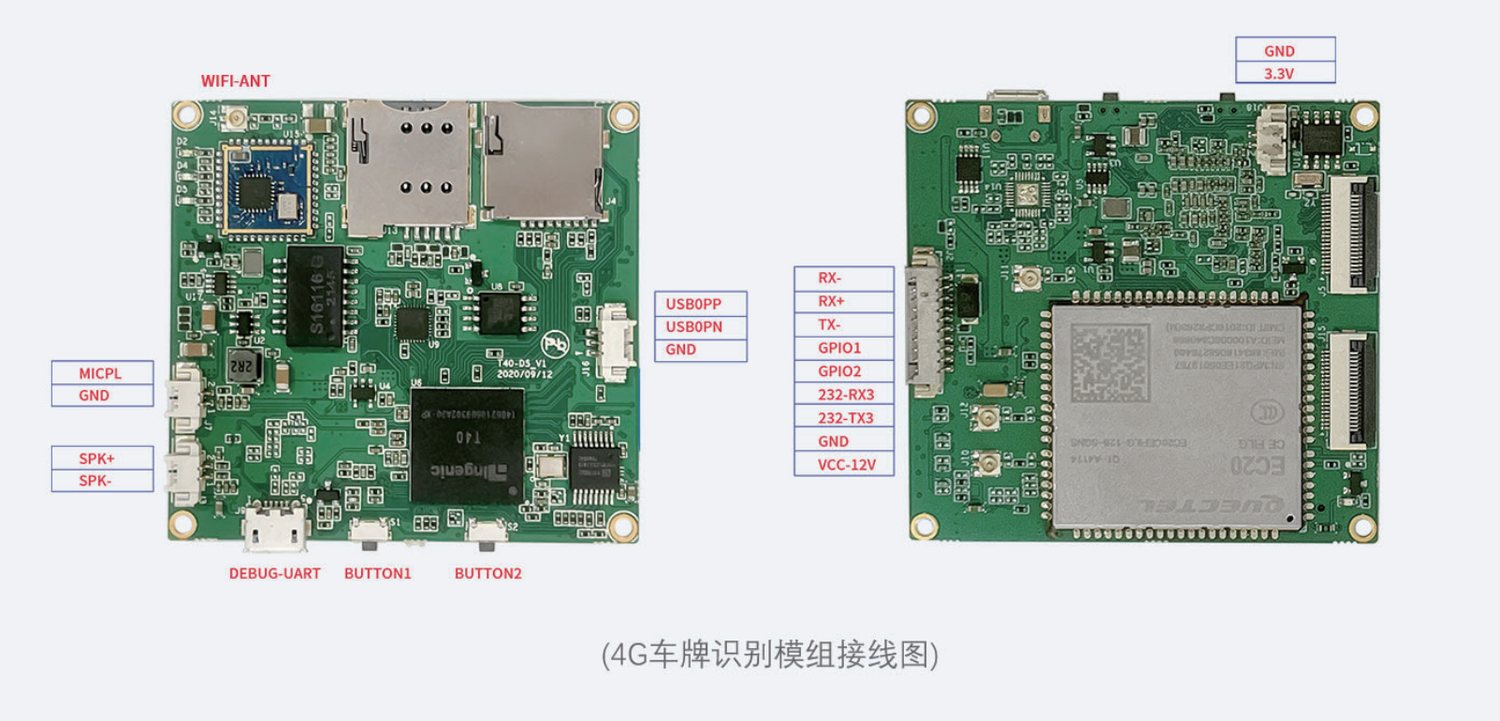

７、License Plate Recognition Module Wiring Diagram

８、License Plate Recognition Module Interface Dimension Drawing

９、 Recognition Flowchart

10、License Plate Recognition Camera Operation Demo

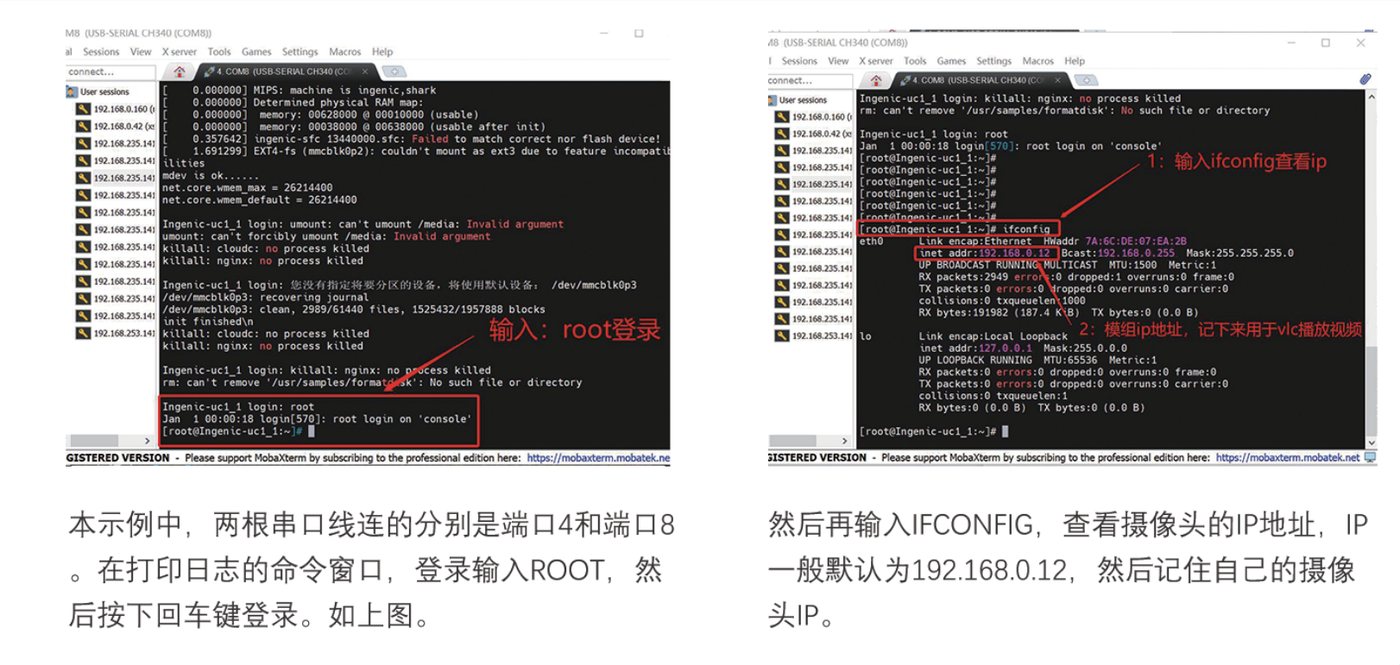

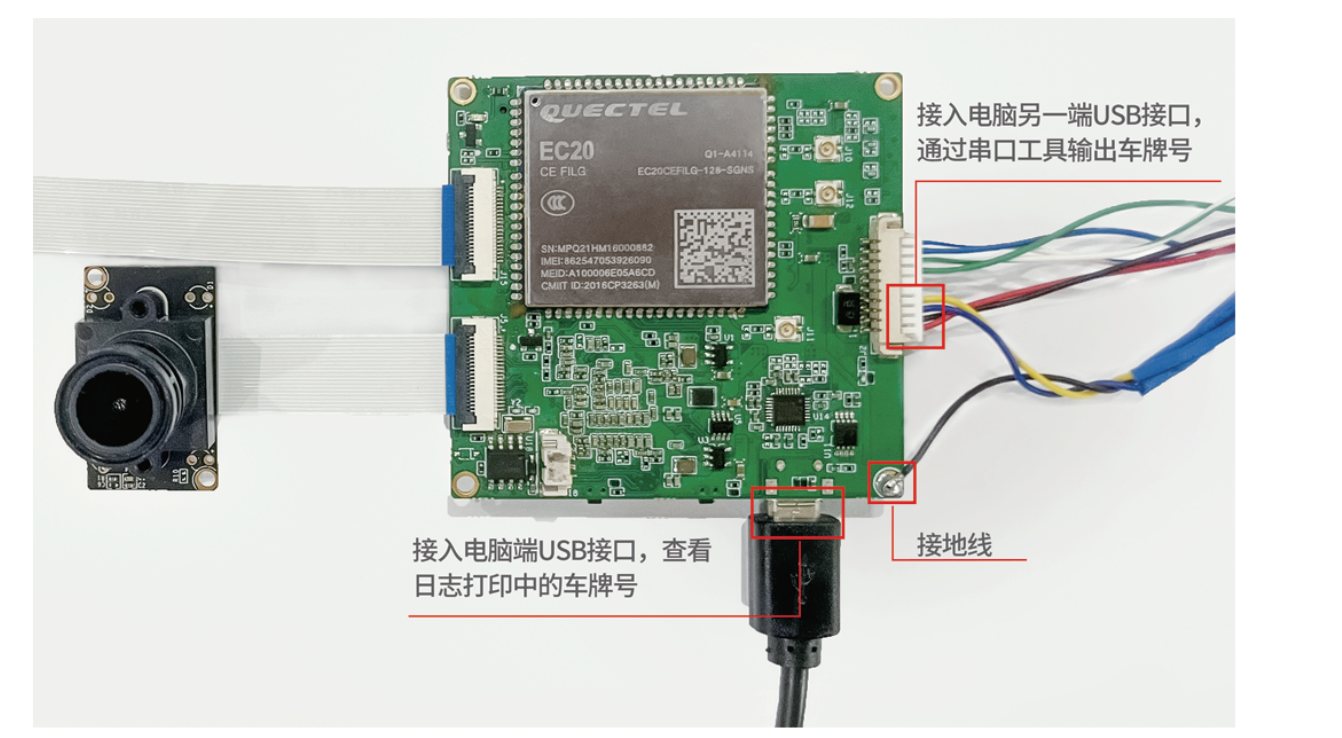

1、Connect two serial cables as shown in the figure below. One serial cable is used to connect to the serial port tool on the computer to view the print log when the program is running, and the other serial cable is used to connect to the serial port tool on the computer to view the output of the recognized license plate information. After the license plate is recognized, it is transmitted through the serial port protocol by default. If you need another transmission method, please contact our business team.

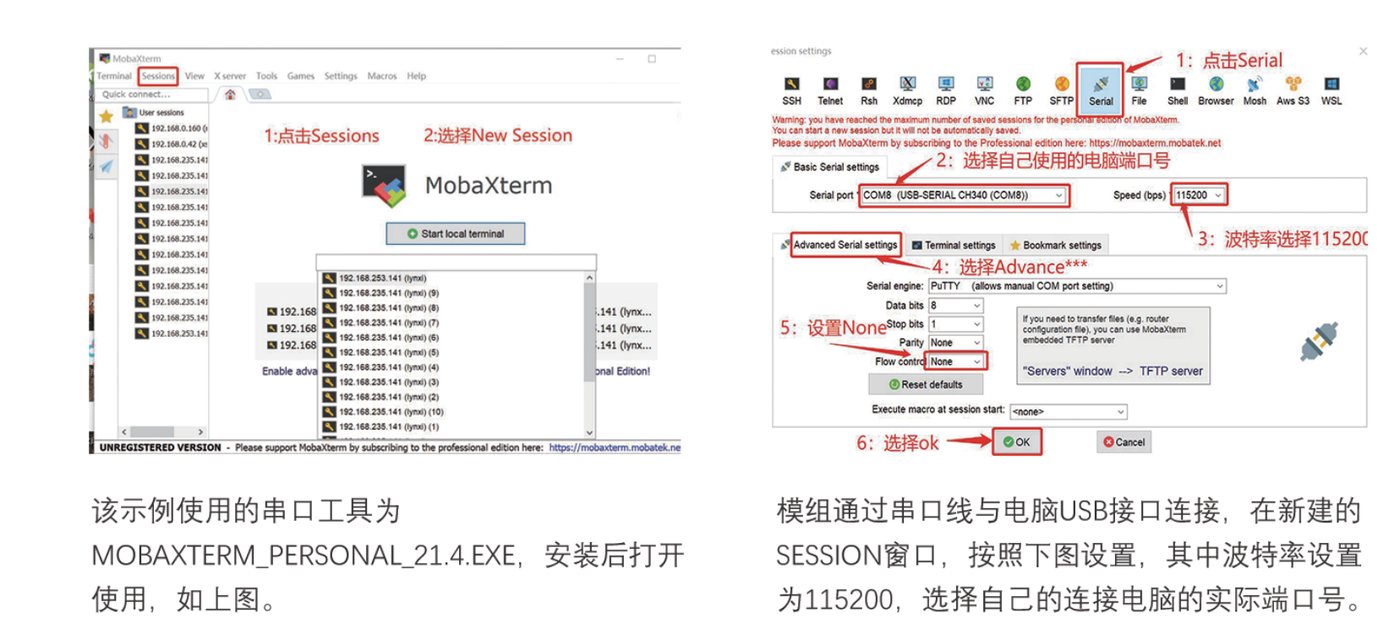

2、Connect the camera to a 12V DC power supply and a network cable, and open the serial port tool

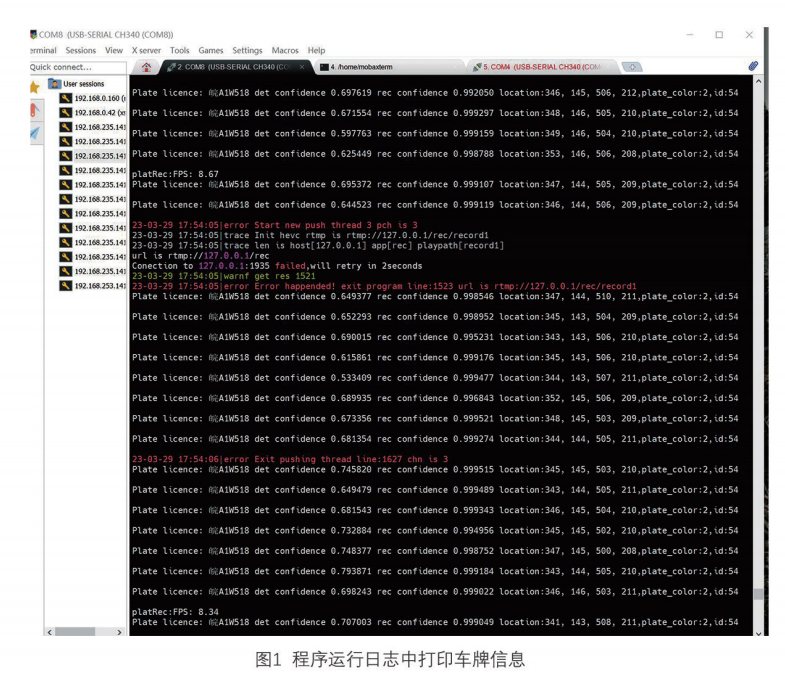

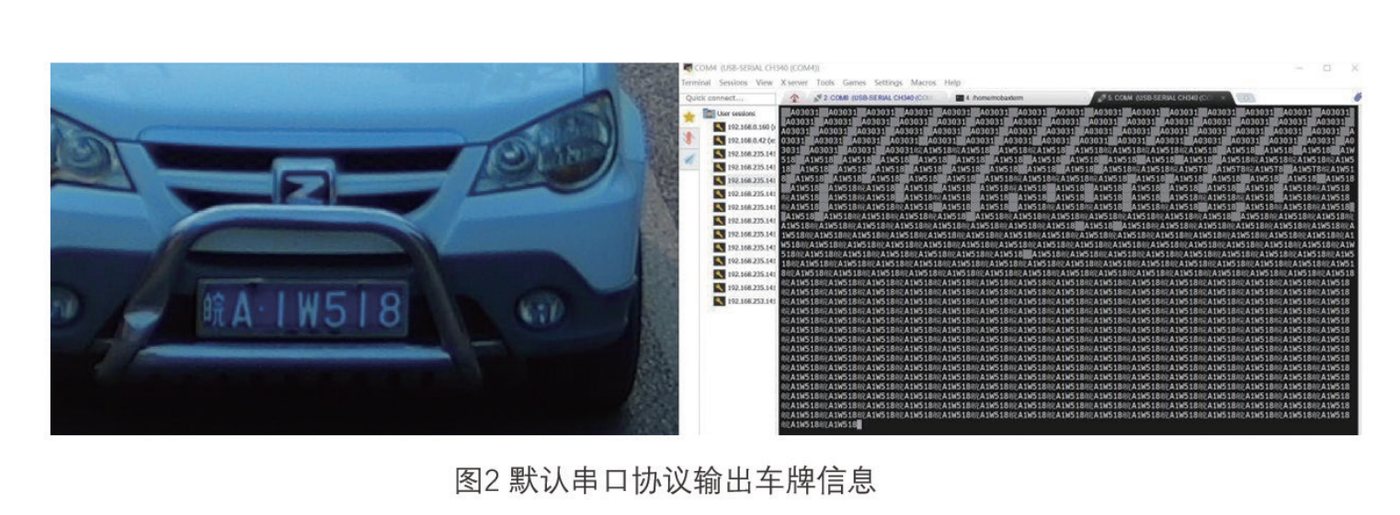

3、Open any clear Chinese license plate image on the computer, then point the camera at the computer screen. Adjust the camera position through the picture played by VLC, trying to make the picture played by VLC show the vehicle and license plate clearly to the human eye. Then observe the printing in the two serial port windows of the serial port tool. One window prints the program log information, and the other window prints the license plate information transmitted by the serial port. The effect of this demo is shown in the two figures below:
