T40-NPV6188A编码板
| T40-NPV6188A编码板 | |
|---|---|
| 板卡功能类型 | XSTRIVE- |
| CPU | T40XP |
| 视频编码 | 支持H.265/H.264编码 |
| 最大分辨率 | 1280*720@30fps X4 |
| 视频输入 | AHD视频输入（1280*720@30fps） |
| 音频输入 | mic-in 单声道 |
| 音频输出 | 1路 |
| 存储器 | 无 |
| 网络 | 100M |
| 运行温度 | 0到70°C |
| 寿命 | 连续运行寿命大于 2 年以上 |
| DDR | 256MB |
| SPI NOR | 32M |
| EMMC | - |
| 网口个数 | 1个 |
| sensor个数 | - |
| 算力 | 8TOPS int2可做人形识别，车牌识别等等 |

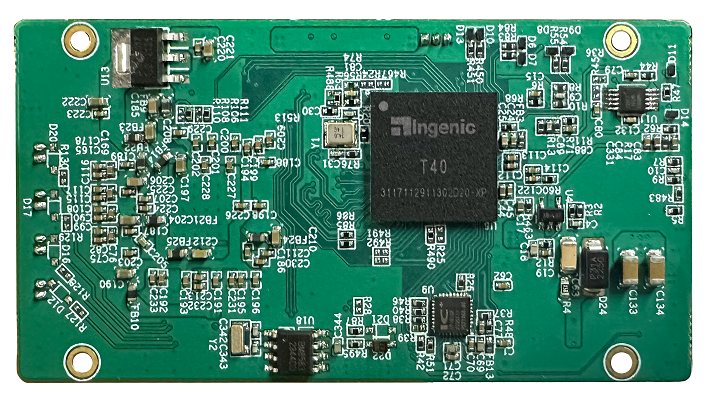

产品图片
板卡尺寸：71*40mm
CPU参数
描述
T40 is a smart video application processor targeting for video devices like mobile camera, security survey, video talking, video analysis and so on. This SoC introduces a kind of innovative architecture to fulfill both high performance computing and high-quality image and video encoding requirements addressed by video devices. T40 provides high-speed CPU computing power, excellent image signal process, fluent 3840x2160 resolution video recording
特性
• 1.2GHz dual core XBurst2 CPU with 128KB L2 cache; 600MHz RISC-V coprocessor
• SIMD512 ISA
• Built-in neural network accelerator, maximum 8T OPS, support int16/int8/int4/int2 convolution width
• Magik AI algorithm develop platform available
• Built-in algorithm post/preprocessing acceleration unit
• Tizano-III ISP engine, maximum 3840x2160 processing resolution, dual sensor input, 3A/3D/WDR/rgb-ir, LDC, 90 and 270 rotations
• Maximum 4K (3840x2160)@20fps H.265/H.264/JPEG encoder, VBR/CBR/Fix QP rate control
• DVP/MIPI-CSI/BT1120/BT656 Sensor input interfaces, stereo vision, max 3 channels input
• Maximum 2GB memory size, DDR2/DDR3/DDR3L
• Rich interfaces, I2C/UART/I2S/SPI/USB/SDIO/DMIC/RMII/PWM/SADC
• support AES/RSA/SHA/TRANG support secure boot
• Built-in Audio Codec, stereo AMIC input and mono output
• Professional AI algorithms available: person detection, facial recognition, 3D vision …
• Support TFT/SLCD, MIPI-DSI-4Lane interfaces, Maximum 1080P resolution display panel
• Mature solution and reference design ready for: IPCamera, home camera, web camera …
• 1.2W power consumption at 4K+AI application
• BGA package
应用
• Consumer/home/IoT camera – 4K IPcamera with AI function, smart phone watch
• Surveillance camera – professional security cameras, IPC&NVR
• AIoT – facial recognition, service robot, machine learning box, edge AI applications
• Web camera – Usb camera

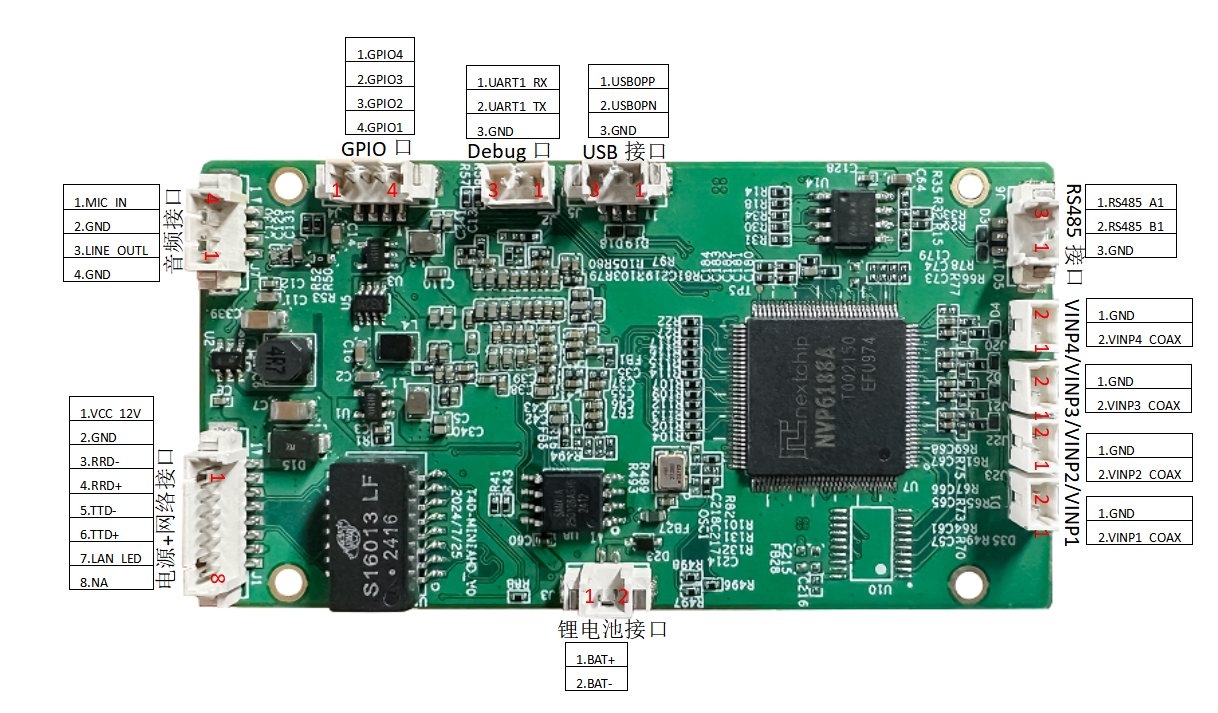

接口电路

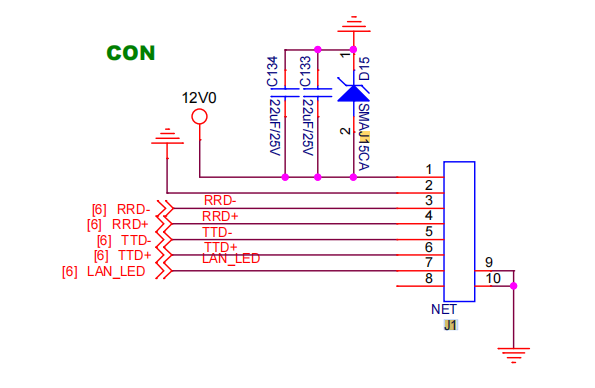

12v电源+网络

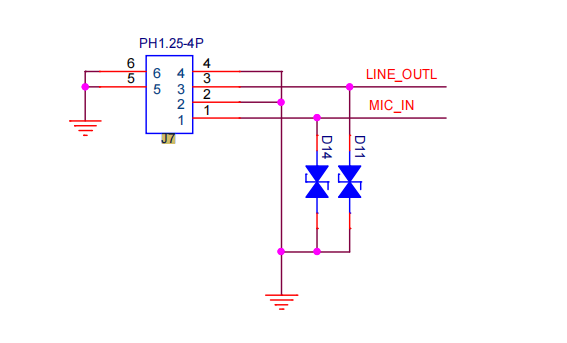

咪头+喇叭

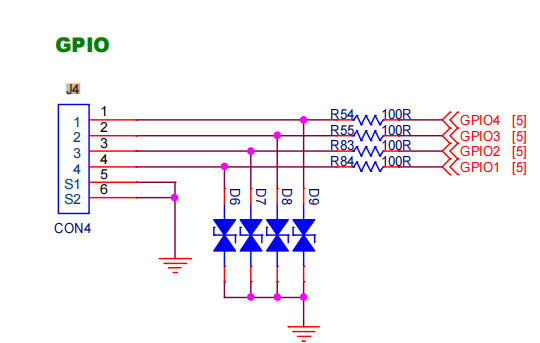

GPIO口

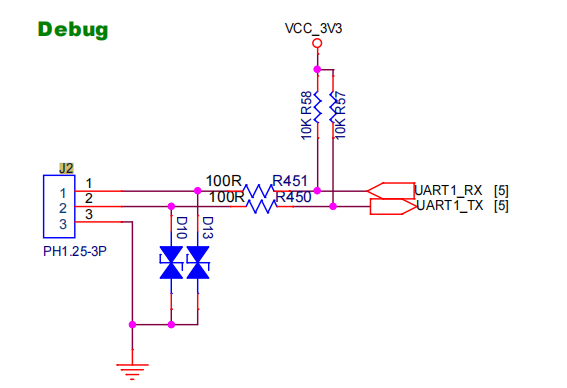

Debug口

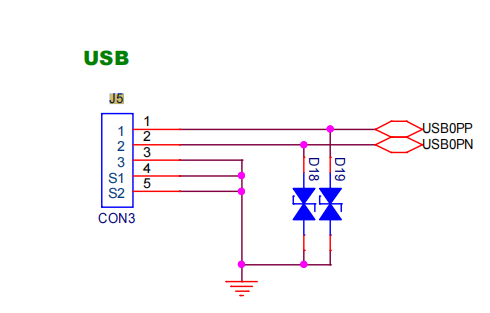

USB接口

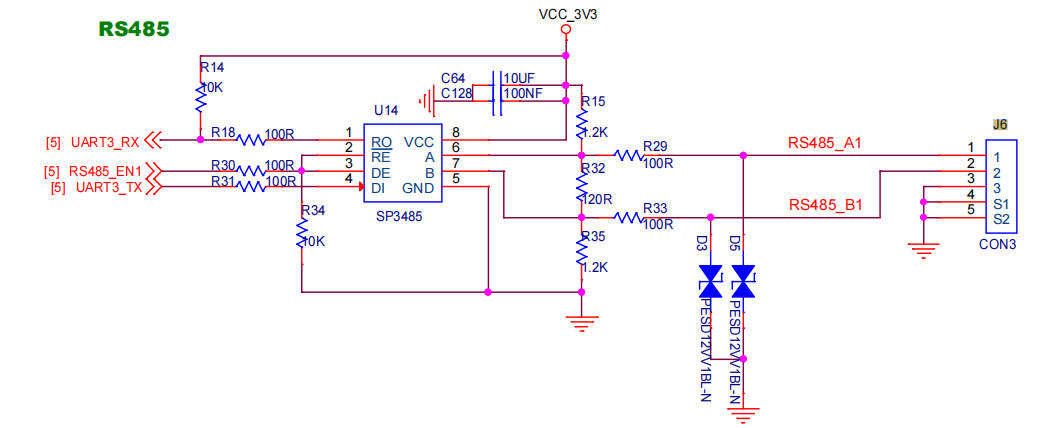

RS485接口

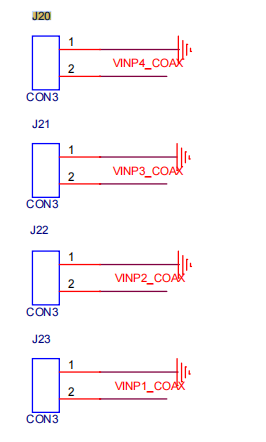

VINP接口

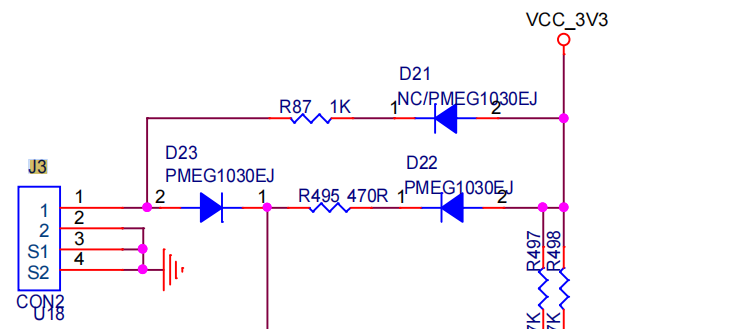

锂电池接口
